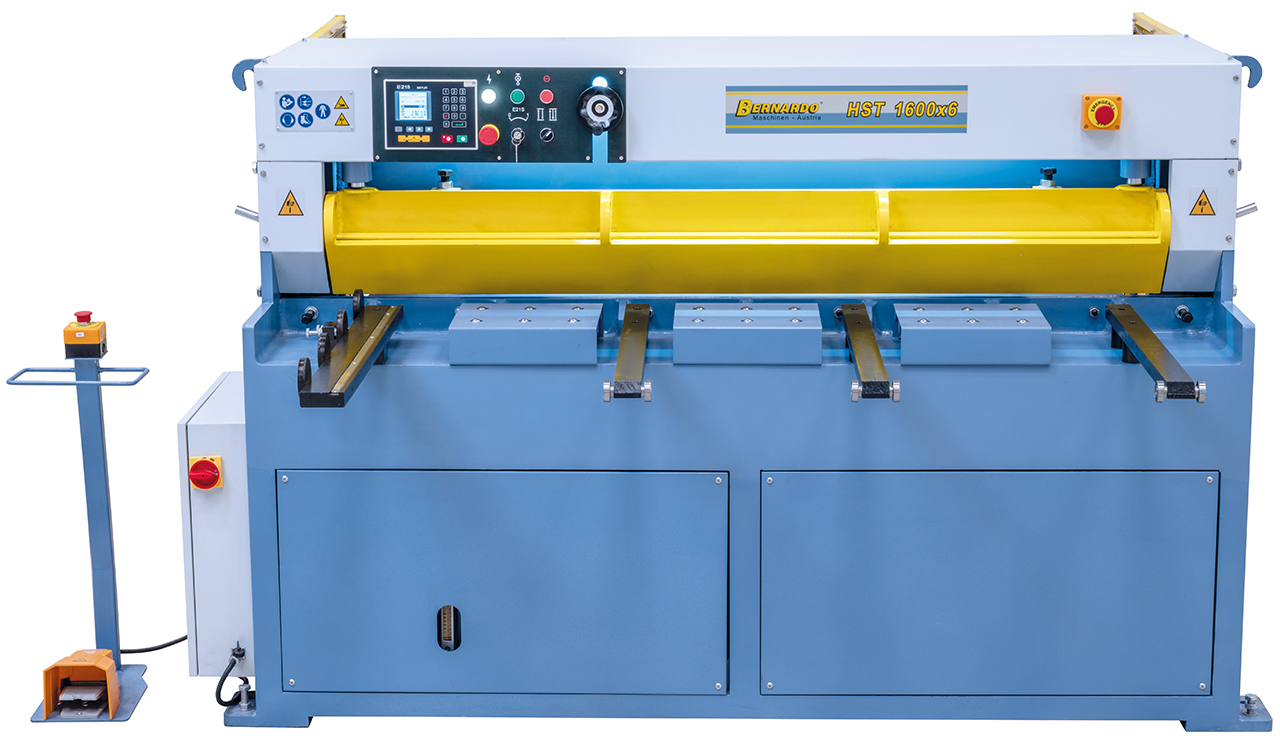

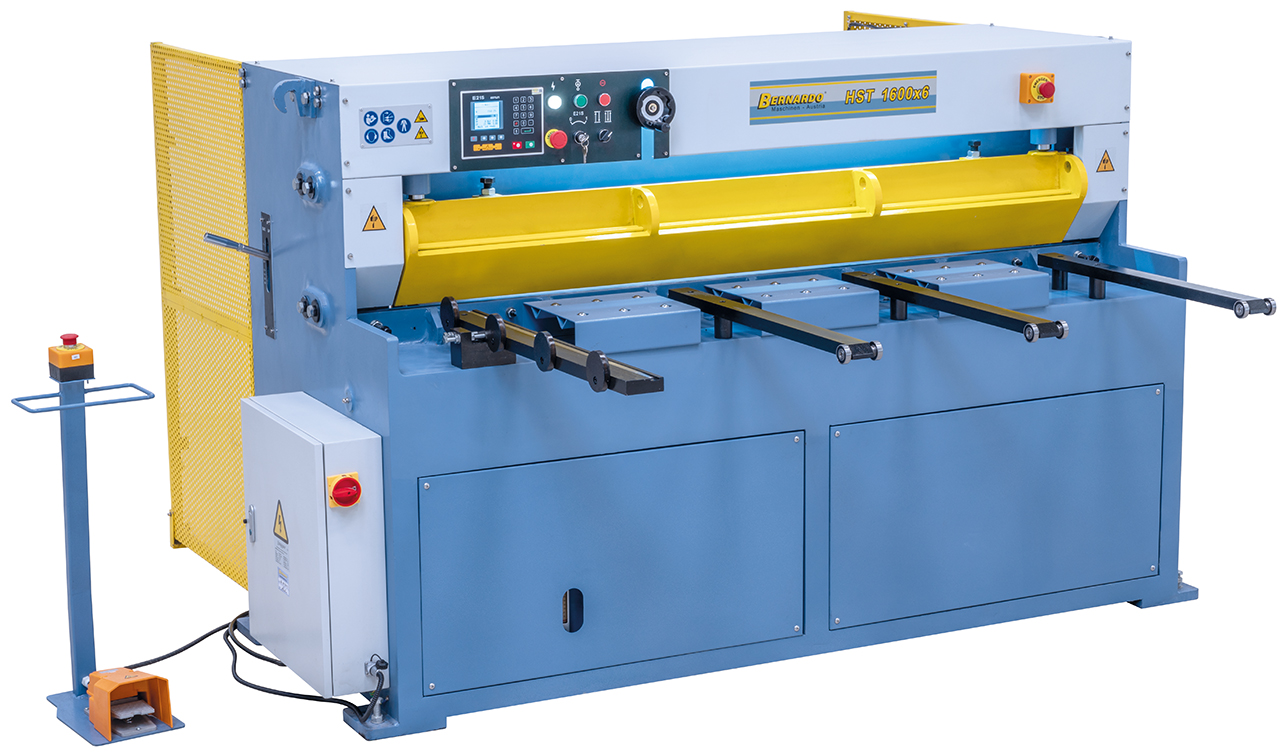

Hydraulic guillotine shear HST 1600 x 4 *
Art.Nr.: 06-1922XL2€16,200.00
incl. 20% VATAvailability
Out of Stock
Product Properties
- Machines offer high reliability, safety and economy
- Robust welded steel construction for torsion-free working
- Precise work thanks to integrated cutting line illumination with silhouette
- High operator safety through protective plate and photocells on the back of the machine
- For efficient cutting of various materials, such as sheet steel, brass, aluminum, copper, ...
- Cutting by foot pedal, hands remain free for optimal positioning of the sheet

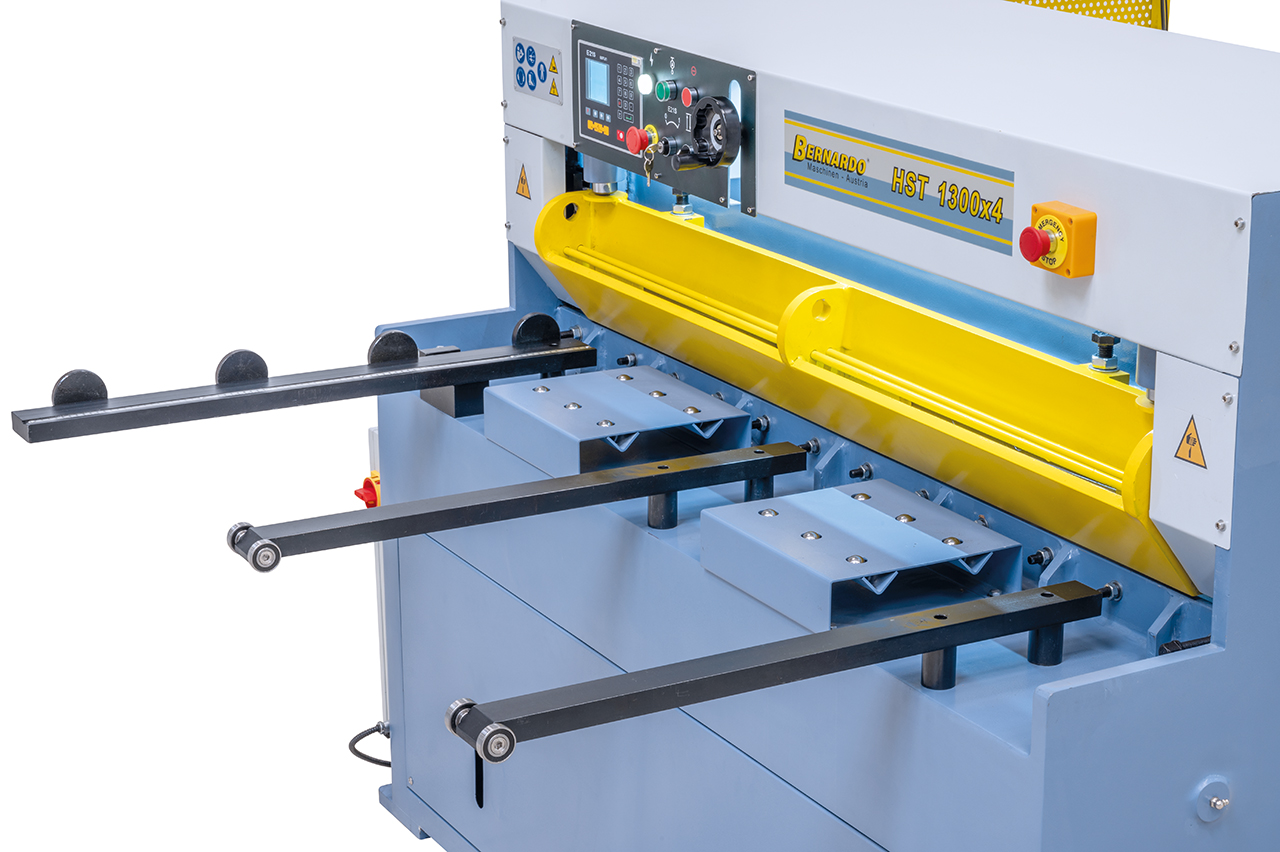

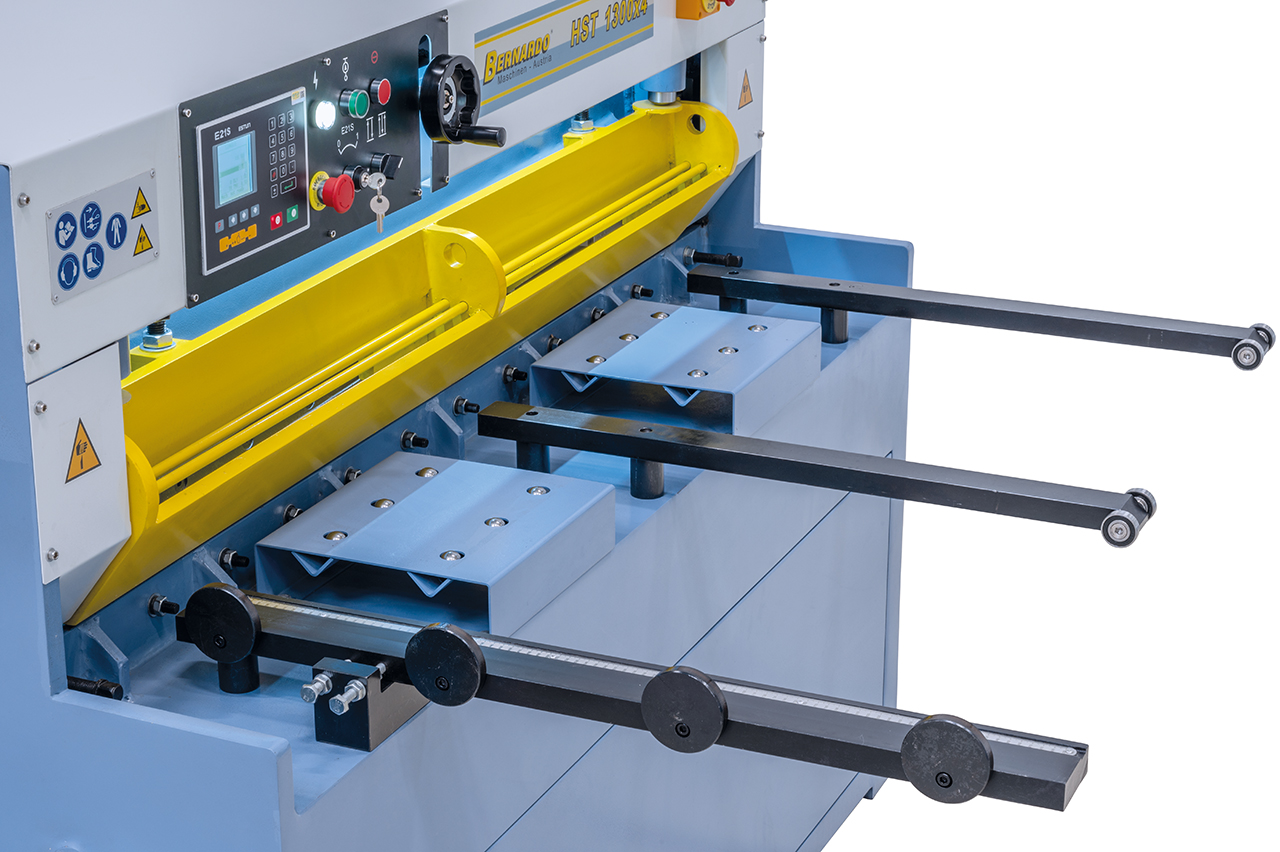

- Support arms on the front for easy handling of large plates

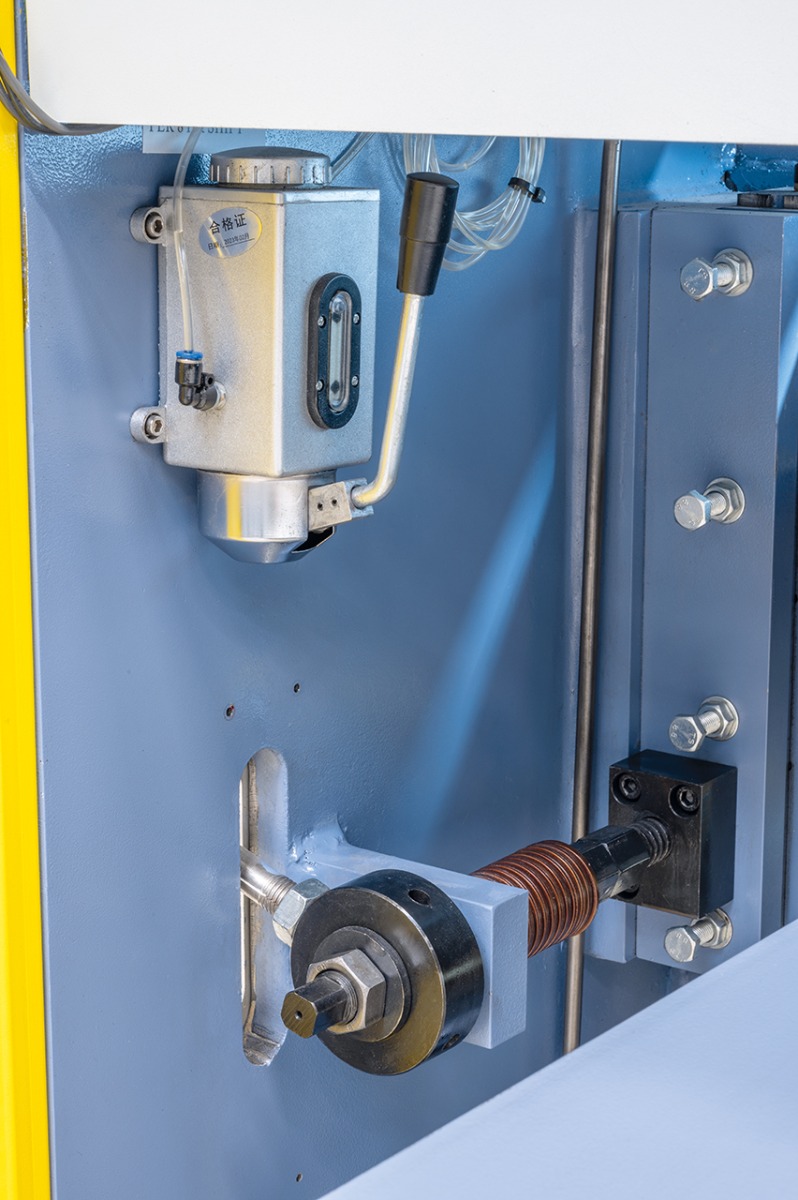

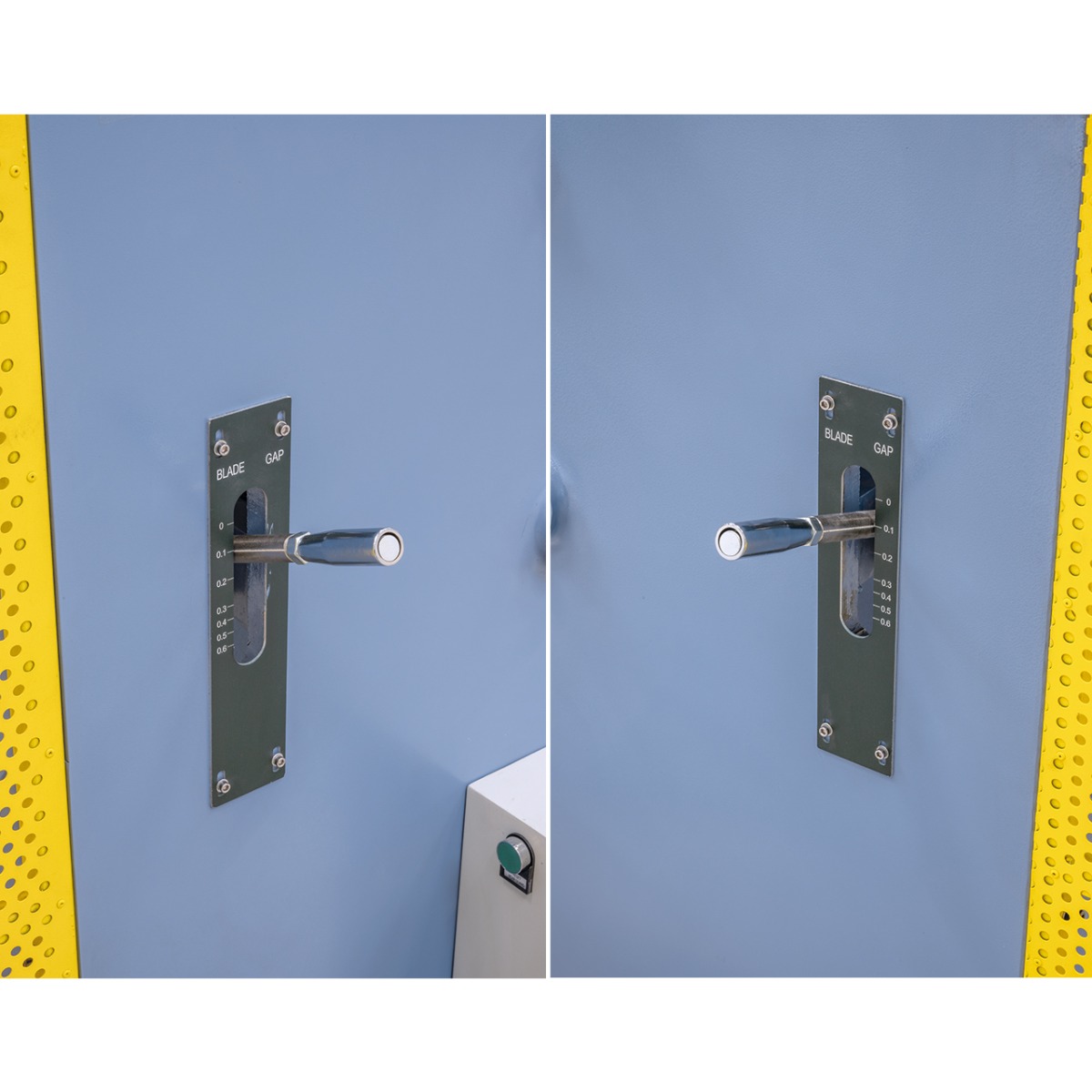

- Easy adjustment of the cutting gap by lever on the side of the machine
- Table surface with integrated rolls, ideal for large workpieces
- Automatic downholder for fixing the sheet metal
Product Specifications
|
Cutting length |
1600 mm |
|
Sheet thickness max. * |
4 mm |
|
Cutting angle |
2° |
|
Motorized backgauge |
0 - 700 mm |
|
Strokes / min |
16 |
|
Quantity of downholder |
1 pc. |
|
Table height |
850 mm |
|
Support arms |
3 pcs. |
|

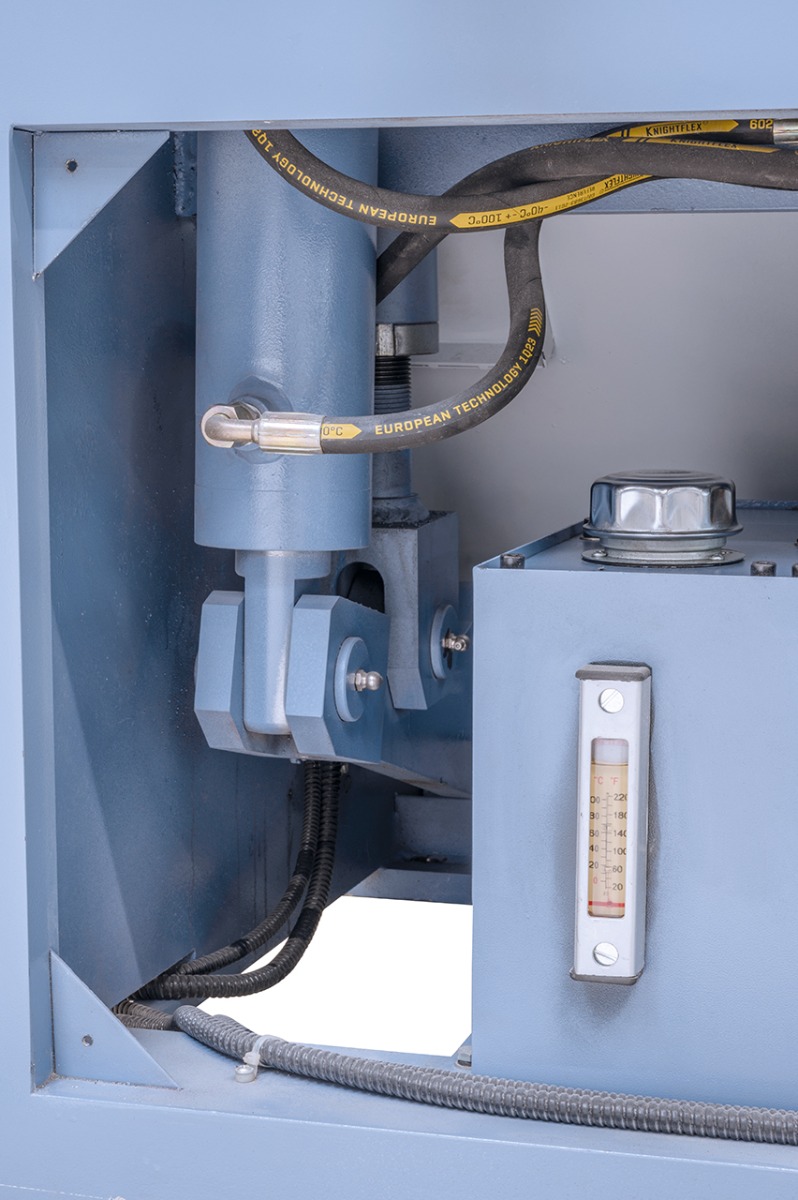

Oil tank |
80 liter |
|
Motor power |
5,5 kW |
|
Length |
2370 mm |
|
Depth |
2140 mm |
|
Height |
1365 mm |
|
Weight approx. |
2250 kg |
* Material strength 400 N/mm²
Delivery Contents
- Cutting gap adjustment
- Cutting line illumination

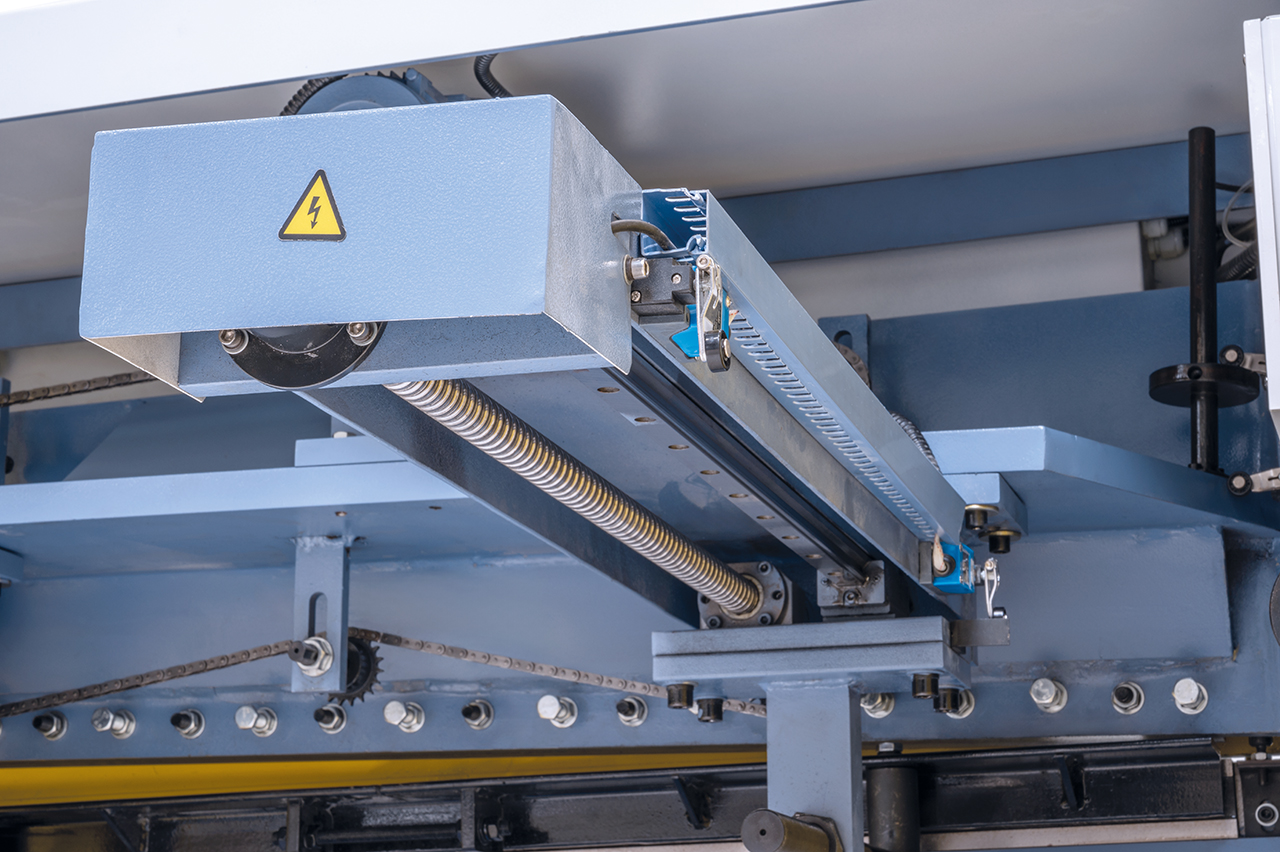

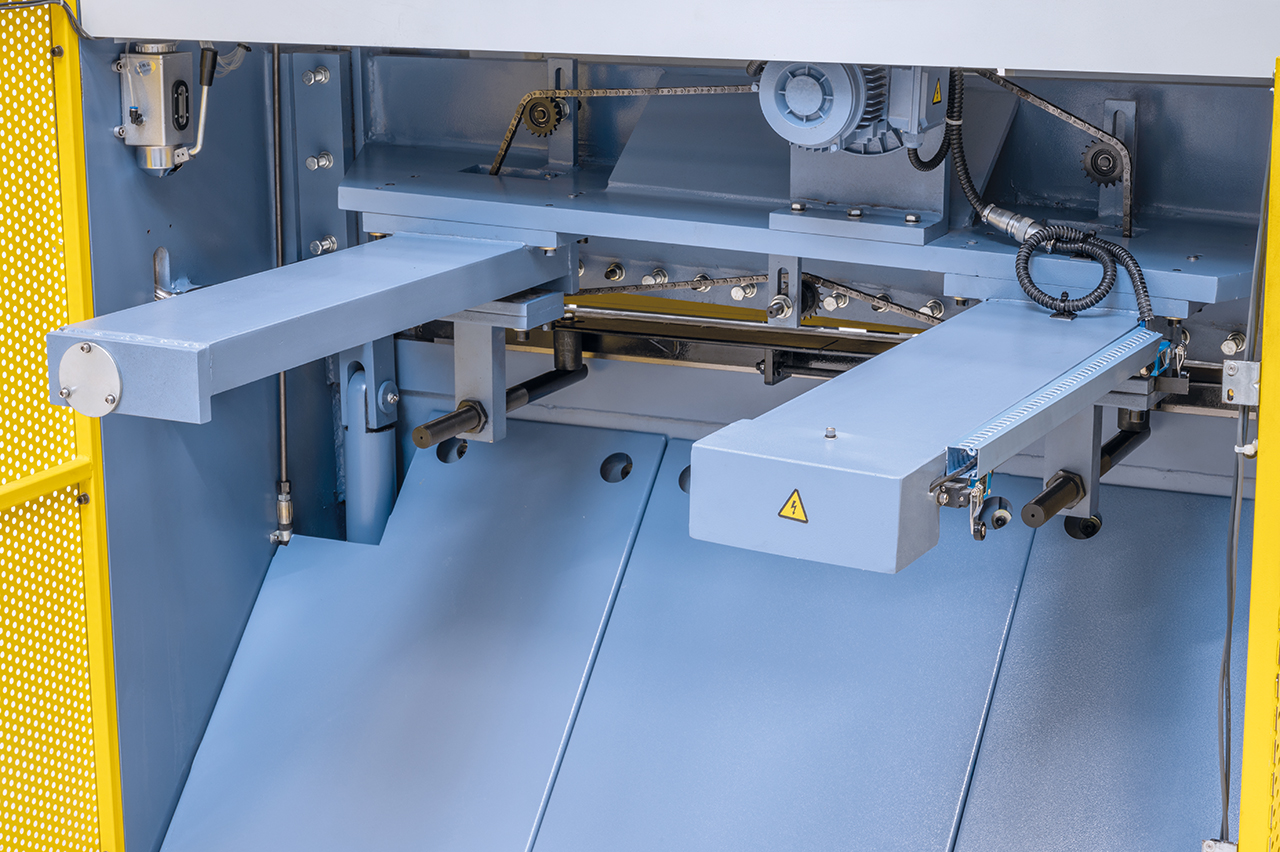

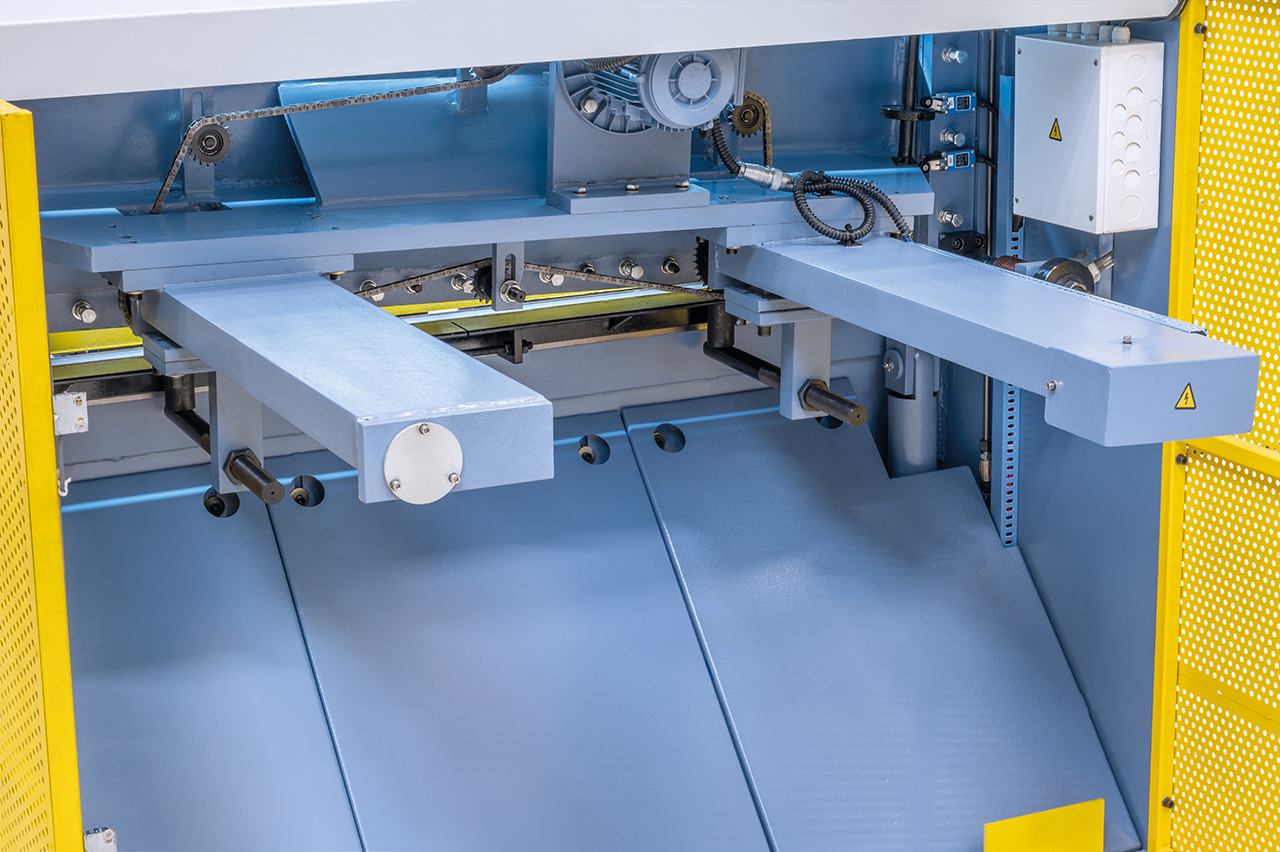

- Motorized NC-backgauge
- Front sheet metal support

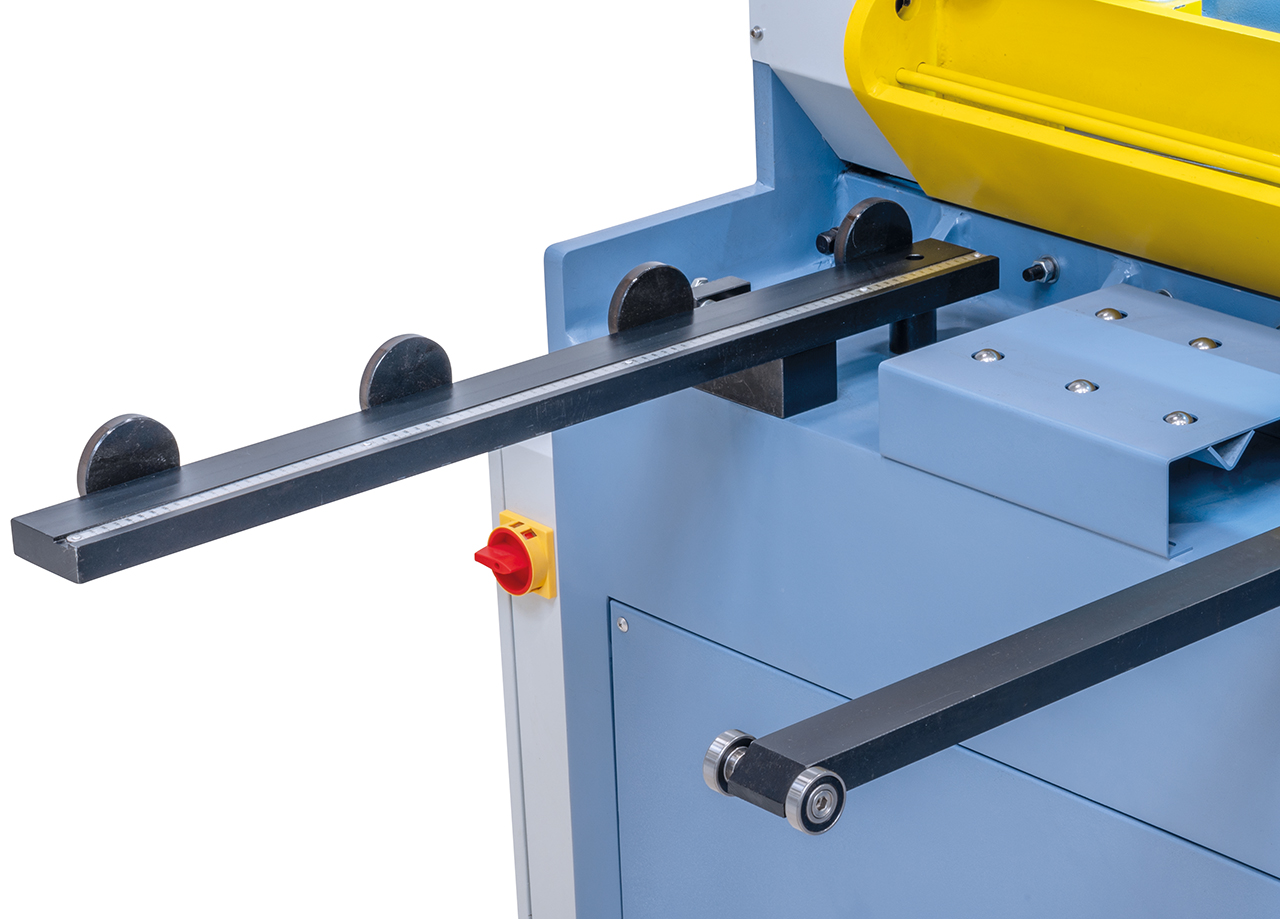

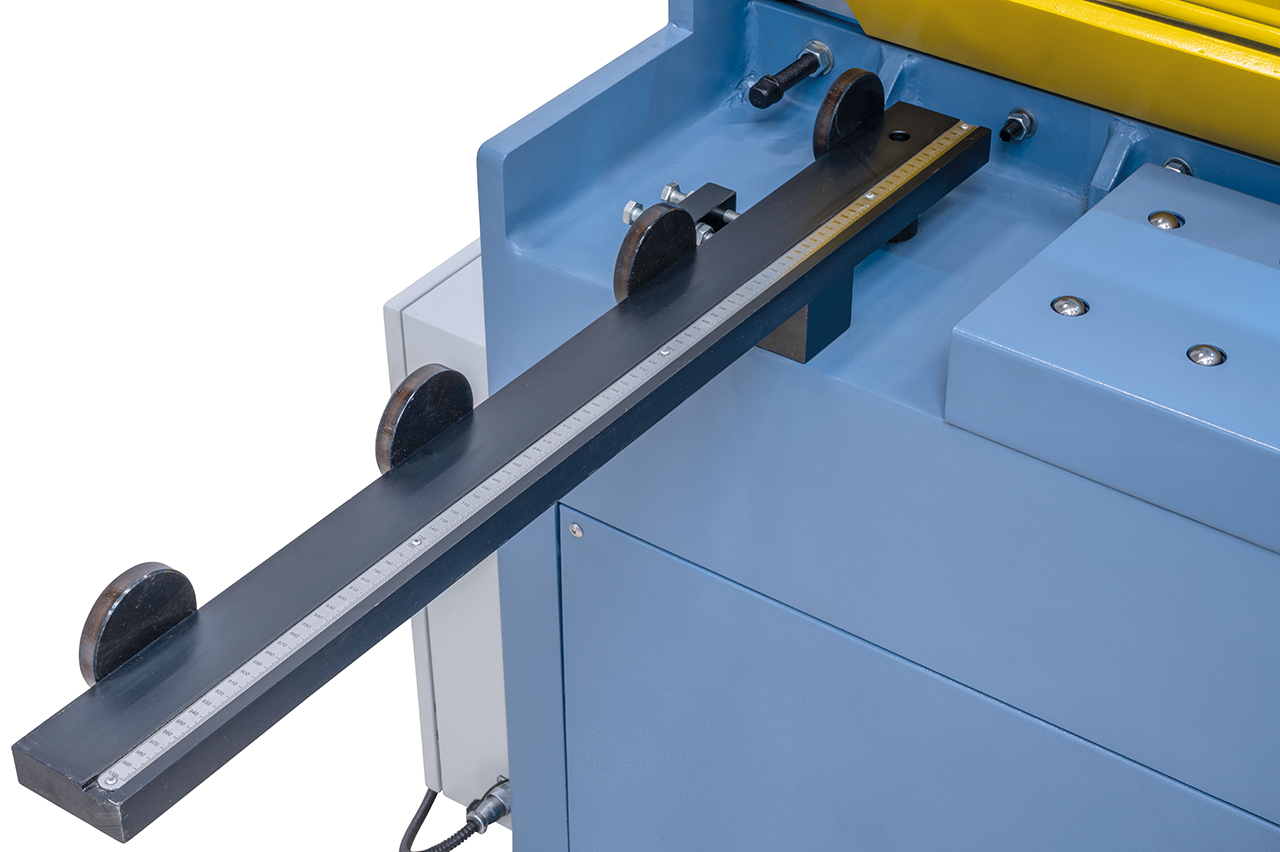

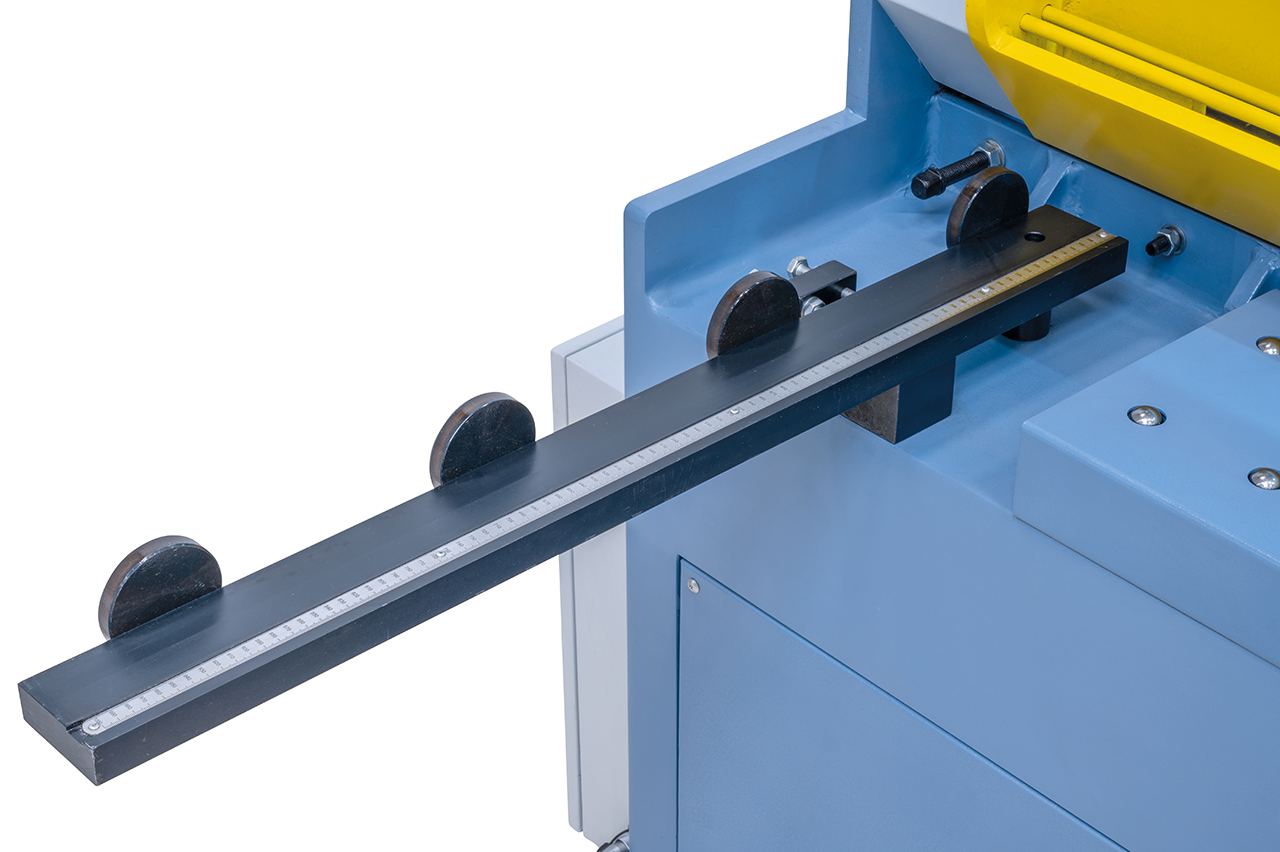

- Side stop

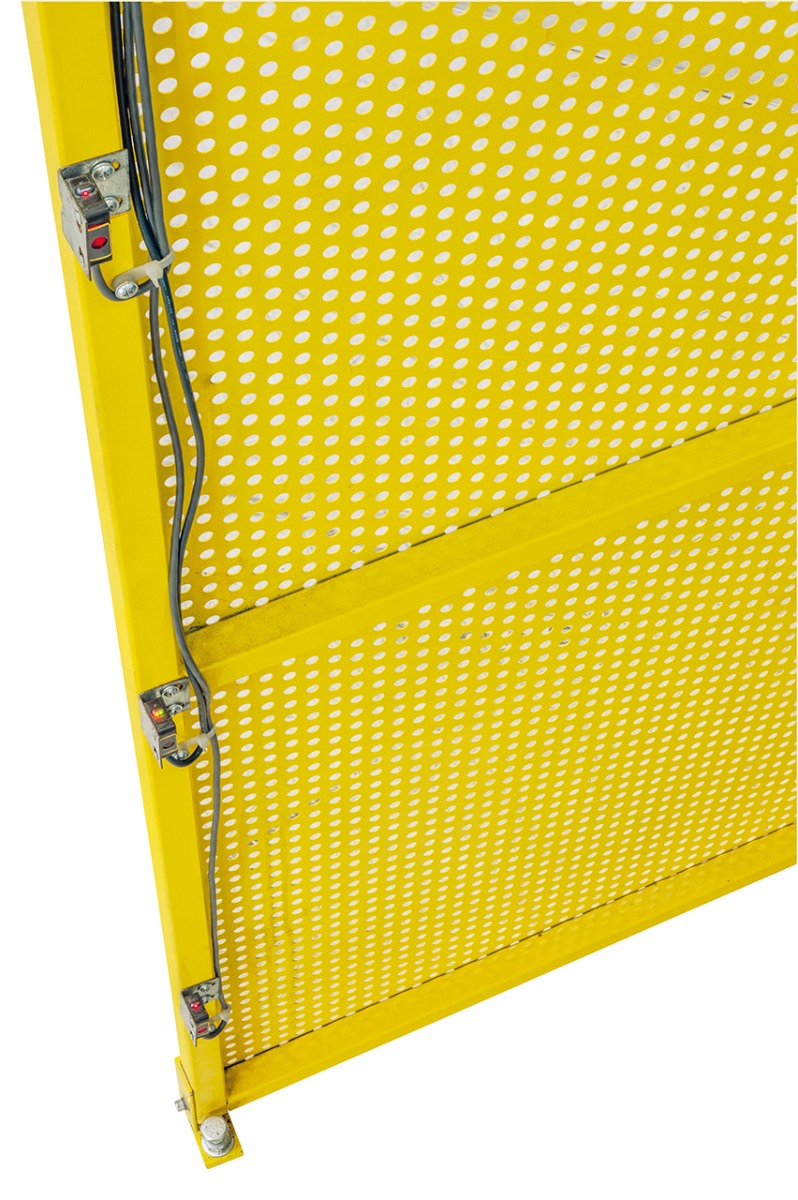

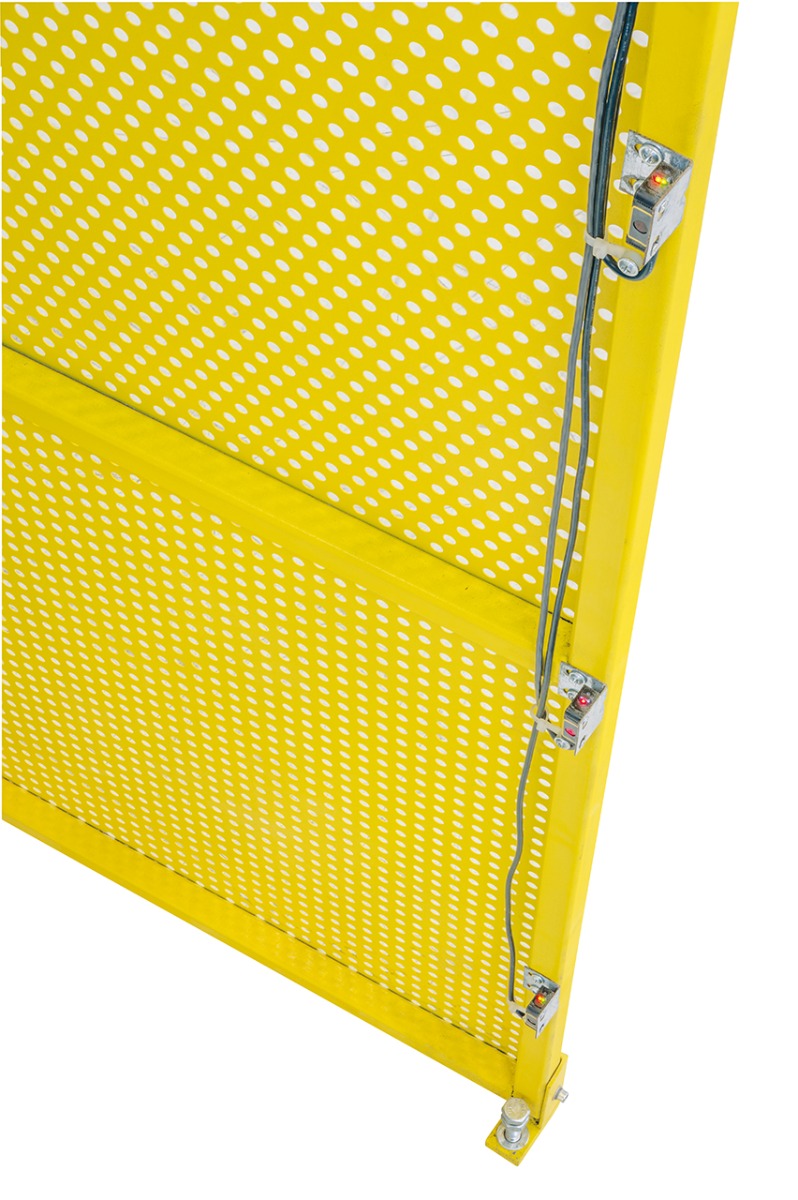

- Protective plate with photocells

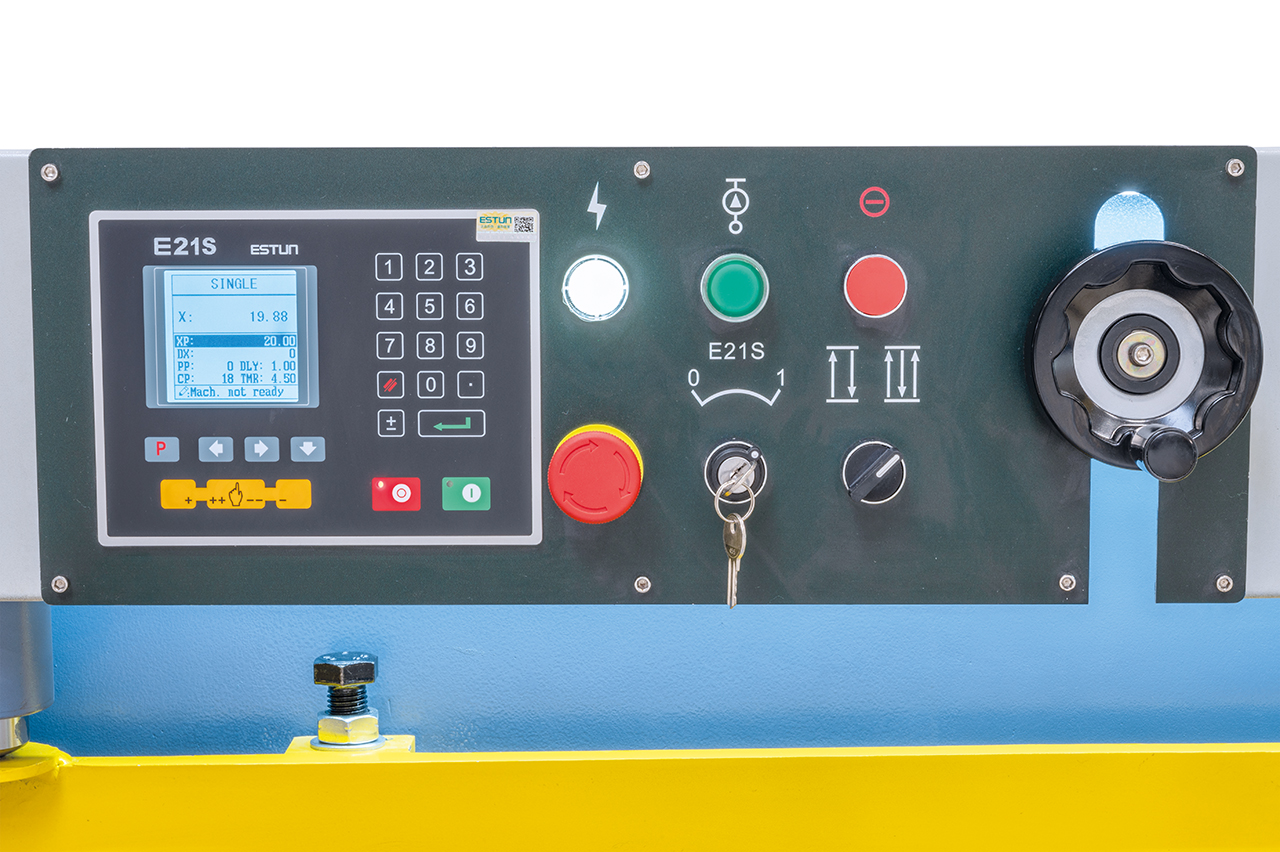

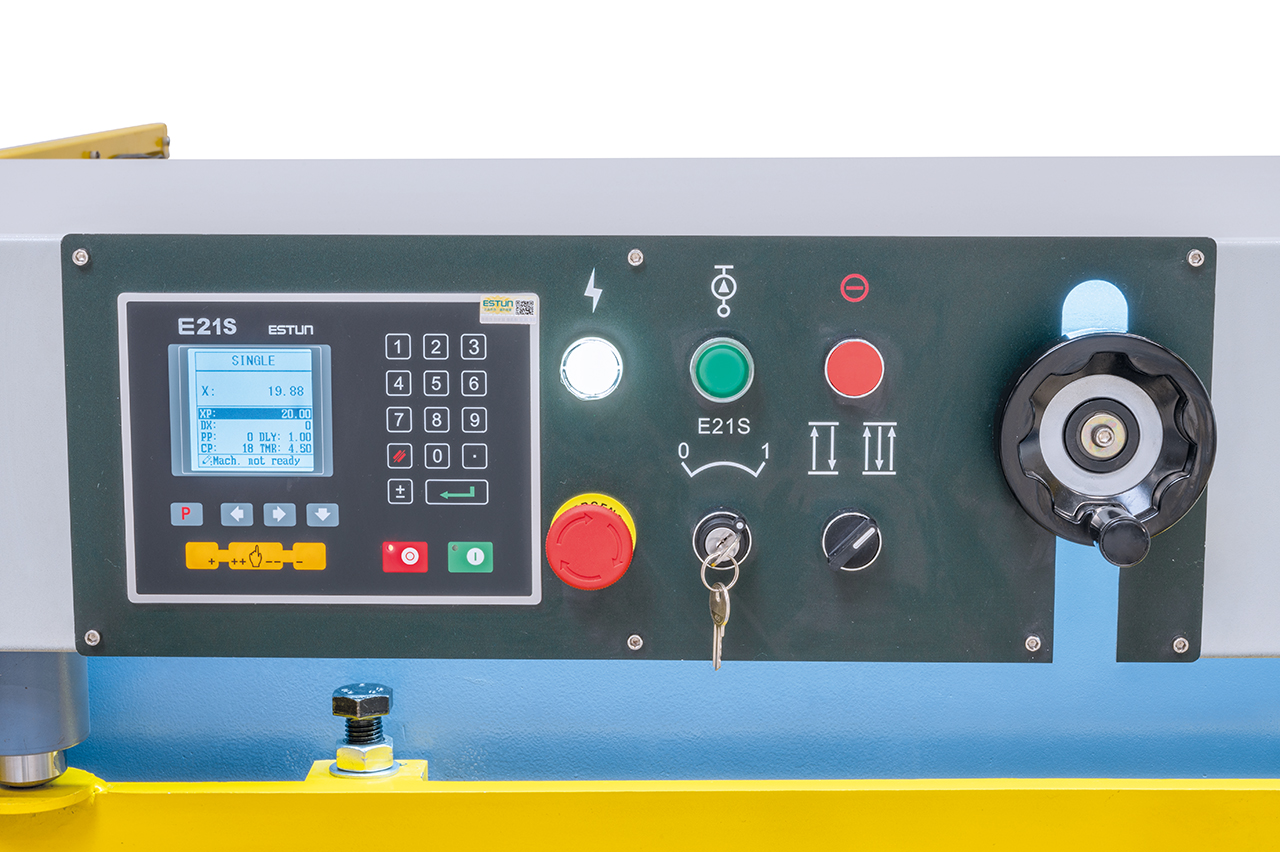

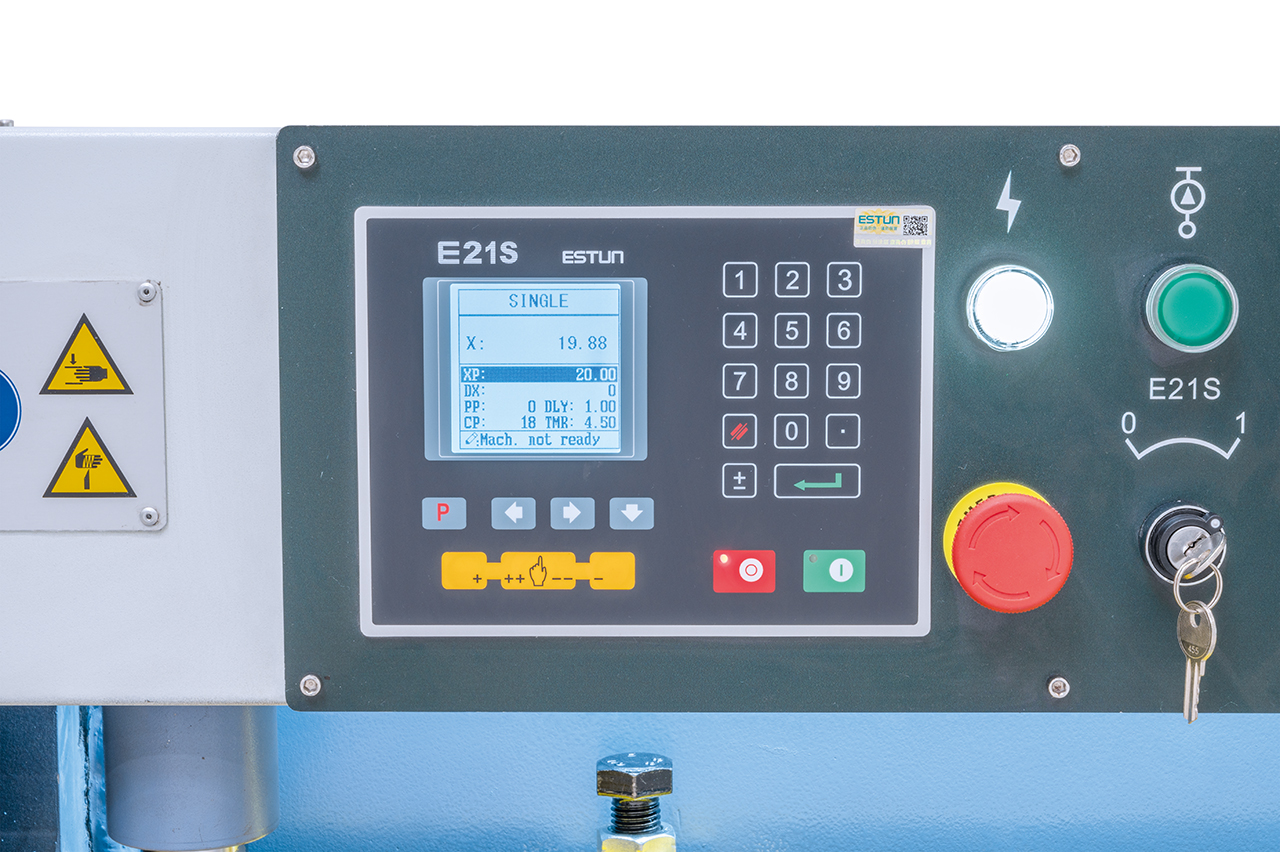

- NC-control E21S

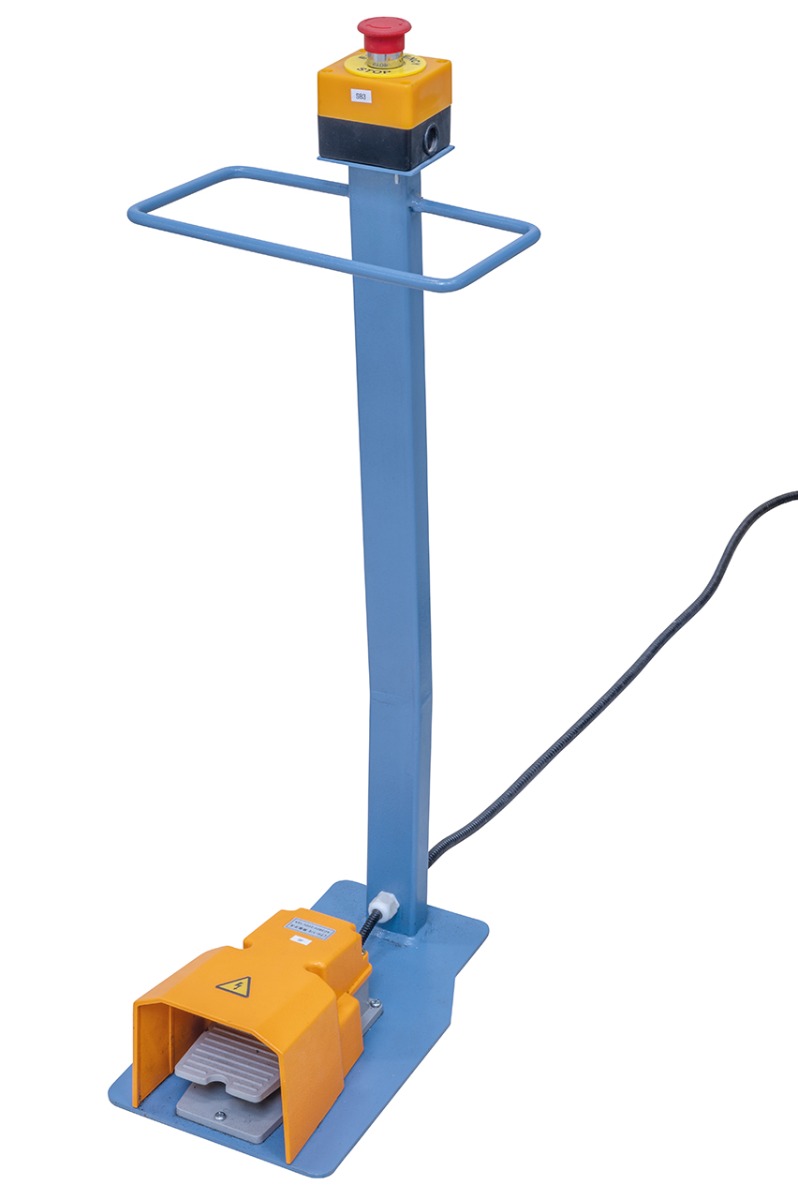

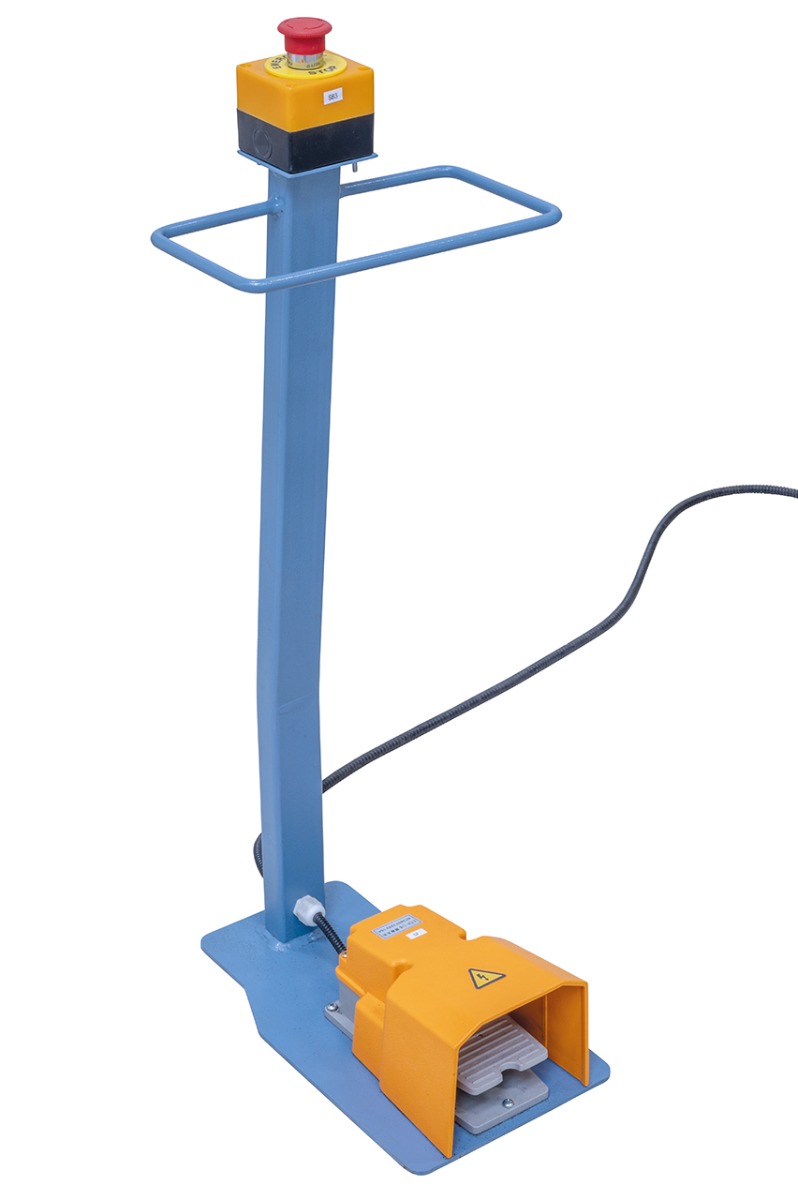

- Foot pedal with emergency stop
- Knives made of tool steel
