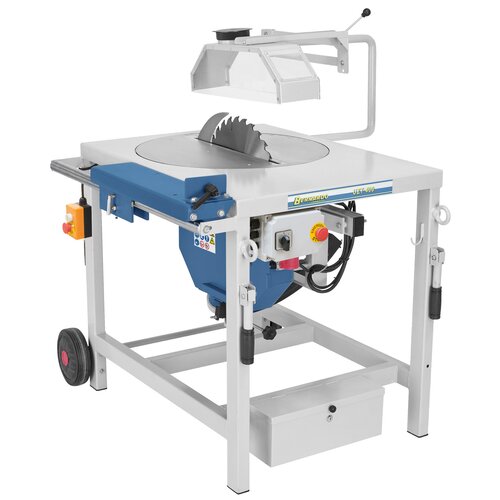

Standard version

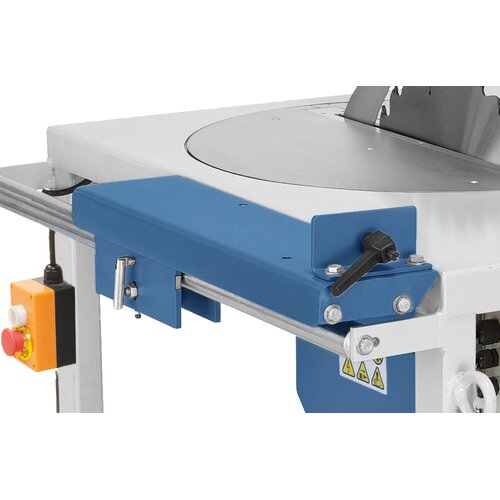

Sliding table with fence

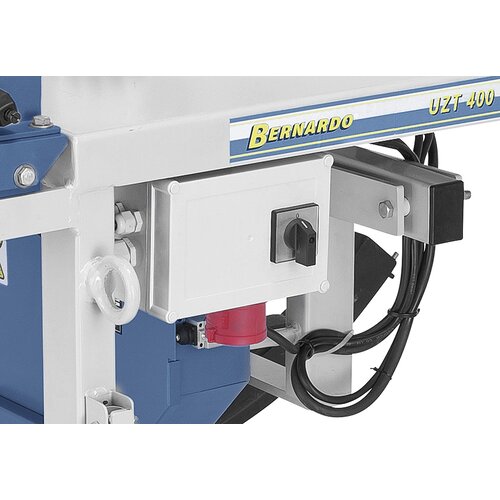

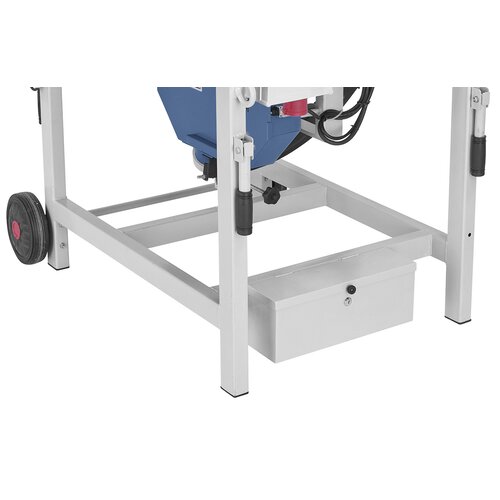

Electronic box with power socket

Includes carriage for easy transport

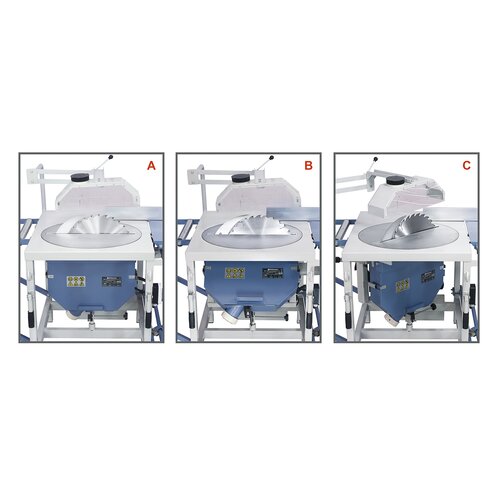

Straight cross cut 90°

Jack rafter cut 45°

Mitre cross cut 90° + 45°

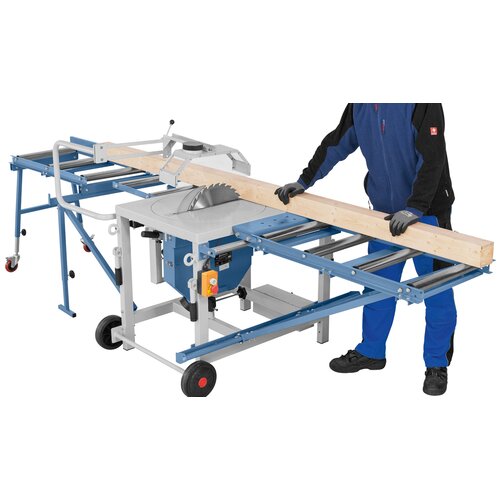

Sawing mit sliding table

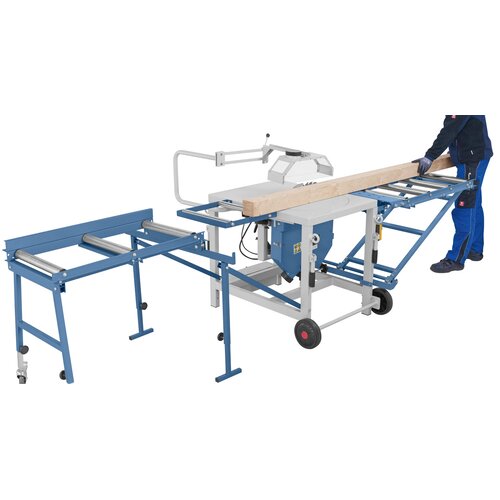

Parallel separation cut

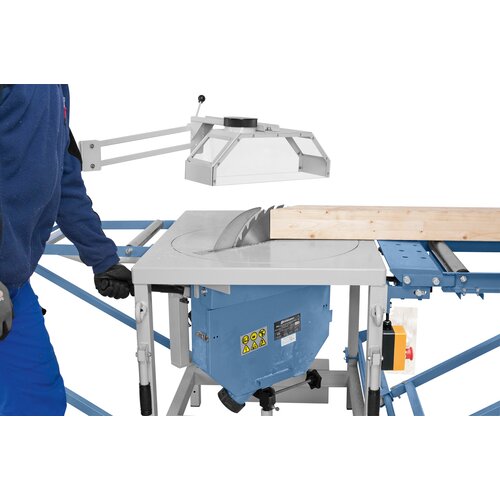

The protective cover follows the sawblade movement.

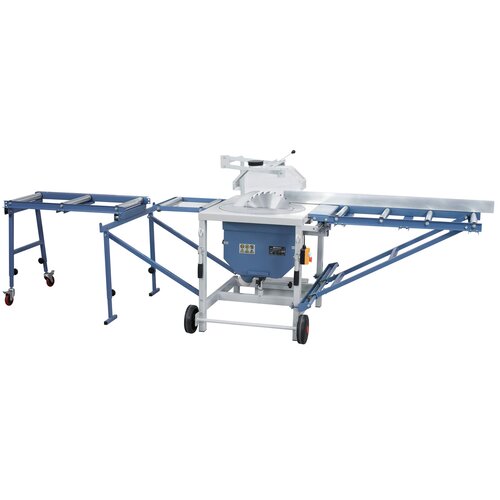

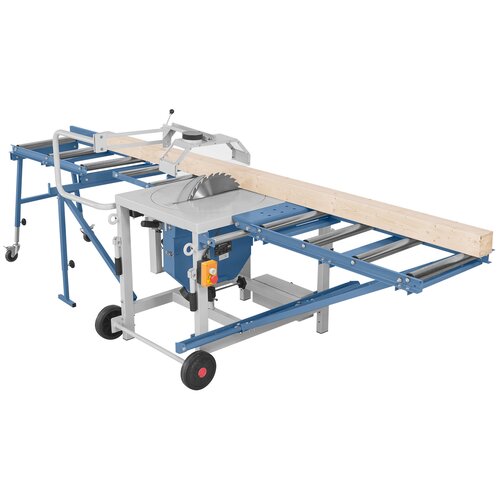

Picture shows outfeed and infeed roller table (optional extra)

Heavy duty circular saw UZT 400 / 400 V

Art.Nr.: 09-1022

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The UZT 400 heavy duty circular saw is suitable for cross cuts and longitudinal cuts. The rotary disc and the tiltable sawblade allow a large variety of applications, such as jack rafter cutting, ripping, mitre and straight cross cutting. It allows the production of valley- and hip rafter as well as the cutting of gutter boards and wedge planks.

€1,896.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Simultaneously adjustable rotary disc (up to 90º) and sawblade (up to 45º)
Ideal device for experienced craftsmen for building for instance carports, garden and dog huts, canopies etc.

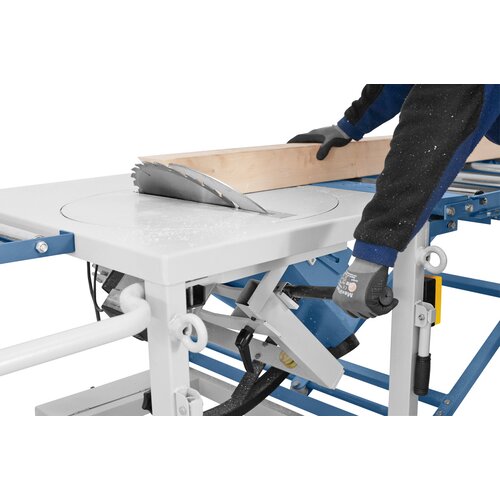

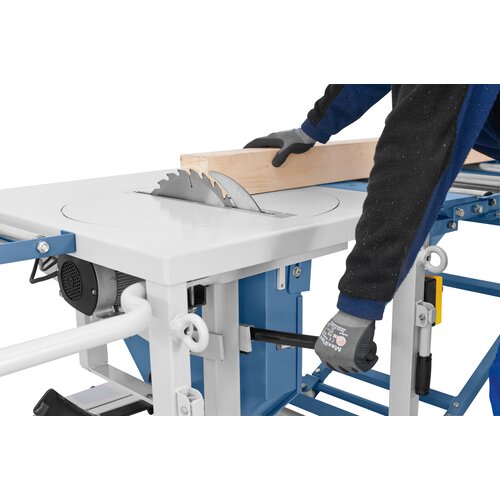

Lever allows for cross cutting, saw unit travels from bottom to top
Solid and easily adjustable saw unit for cutting heights up to 120 mm
Add the optionally available infeed and outfeed roller tables to achieve the maximum capacity of this model
User-friendly saw unit convenient for various cutting operations
Maintain a clean work environment by connecting a dust collector to the sawblade cover or the saw unit

Product Specifications

Table size	945 x 715 mm
Max. sawblade diameter	400 x 30 mm
Max. cutting height 90° / 45°	120 / 90 mm
Table height	845 mm
Movable infeed roller table (optional)	1000 x 550 mm
Movable outfeed roller table (optional)	1000 x 550 mm
Speed main sawblade	2800 rpm
Dust extraction outlet top / bottom	100 / 100 mm
Motor power output S₁ 100%	2,8 kW (3,8 HP)
Motor power input S₆ 40%	3,9 kW (5,3 HP)
Voltage	400 V
Machine dimensions (W x D x H)	1350 x 1400 x 1200 mm
Machine dimensions with roller tables*	3500 x 1400 x 1200 mm
Weight approx.	210 kg
