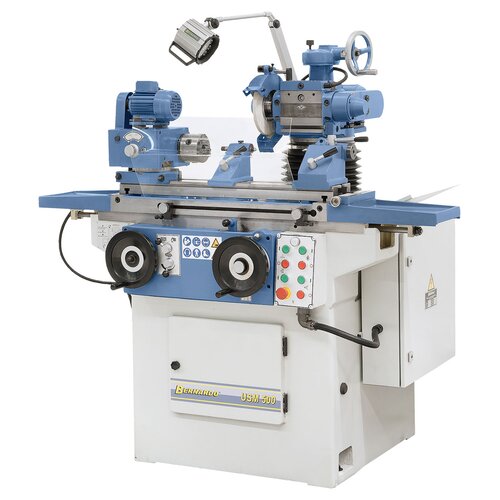

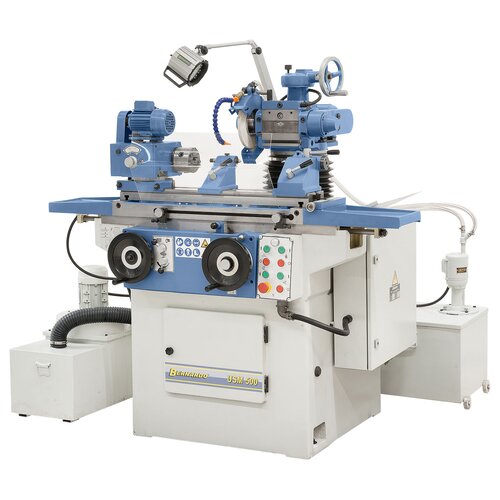

Grinding machine USM 500 with aspiration **

Art.Nr.: 05-1375

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The USM 500 universal grinding machine features a variety of applications for professional users, requiring minimum space. High user-friendliness and a wide range of standard accessories guarantees a maximum of performance.

€22,488.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

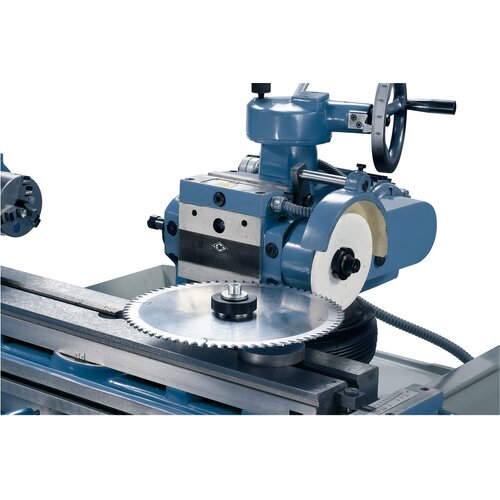

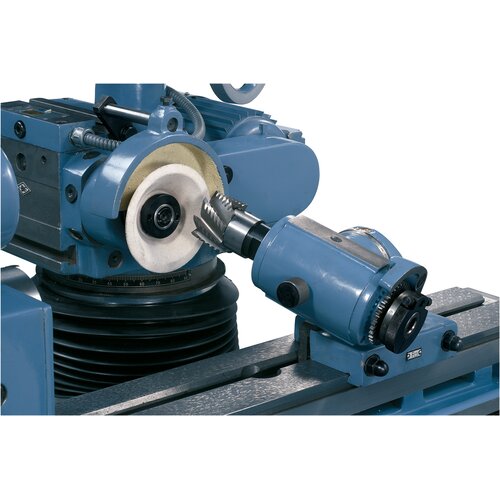

Round, flat and tool grinding combined in one machine
Heavy cast-iron construction allows vibration-free machining
Special spindle bearing for precise sanding results
Used in tool and die making, production as well as in training workshops
Various application areas increase productivity
Coolant device, central lubrication and dust extractor as standard
Easy gear shifting allows quick speed change
Hydraulic or manual longitudinal adjustment of table (in x-axis)
Headstock adjustable in height and tiltable (-100° to + 100°)

Product Specifications

Max. workpiece diameter	200 mm

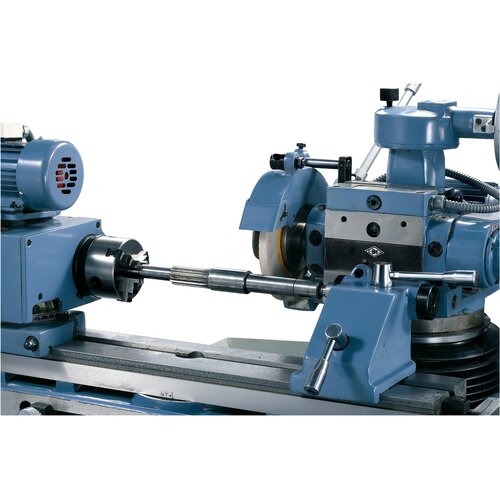

Distance between centers	500 mm

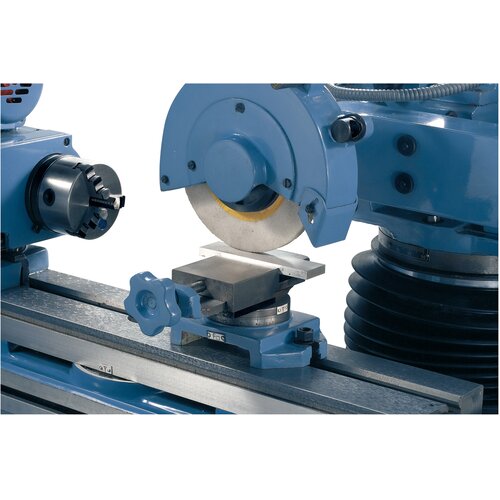

Surface grinding	200 x 50 mm

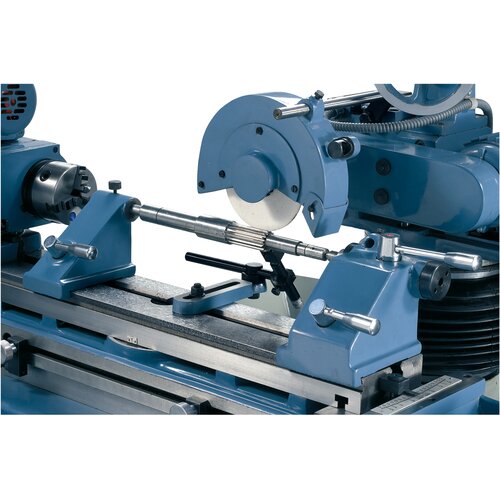

Outside grinding	Ø 5 - 50 x 400 mm

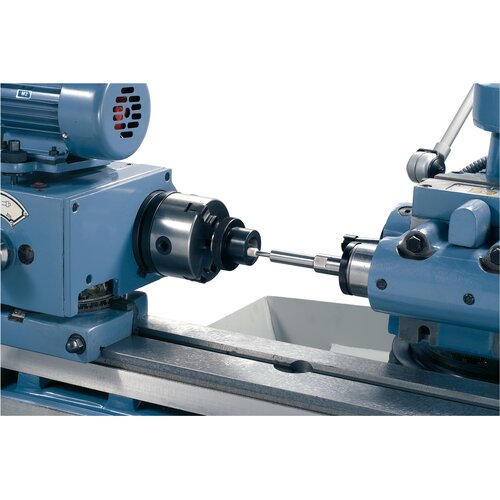

Inside grinding	Ø 10 - 50 x 75 mm
Max. workpiece weight	10 kg
Headstock
Tilting range	-90° to +90°
Speed	110 / 200 / 300 rpm
Spindle taper	MT 2
Chuck diameter	100 mm
Grinding headstock
Tilting range	-100° to +100°
Travel
Cross	230 mm
Vertical	210 mm
Scale division vertical	0,01 mm
Vertical adjustment per handwheel rotation	2 mm/rev.
Scale division	0,02 mm
Cross adjustment per handwheel rotation	2 / 4 mm/rev.
Sanding	disc 200 x 20 x 75 mm
Speed	2500 rpm
Speed inside grinding spindle	13500 rpm
Grindstone	Ø 26 x 20 x 6 mm
	Ø 10 x 10 x 3 mm
Working table
Max. travel	480 mm
Hydraulic longitudinal feed	0,01 - 6 m/min
Table tilting range	-45° to +45°
Taper of tailstock sleeve	MT 2
Travel of tailstock sleeve	15 mm


Total motor power	2,5 kW
Motor power of sanding disc	1,1 kW
Machine dimension (L x W x H)*	1500 x 1150 x 1400 mm
Weight approx.	1300 kg
