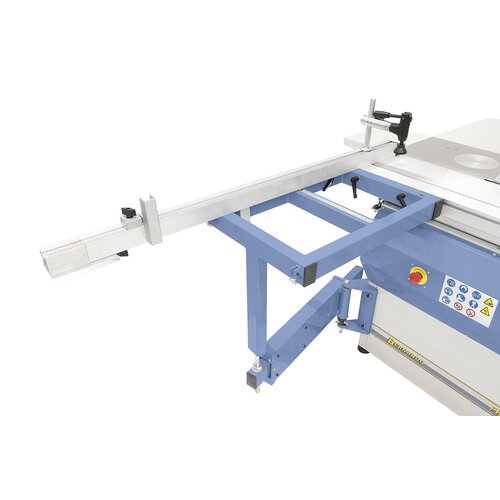

The torsion-free square table assists when cutting large panels.

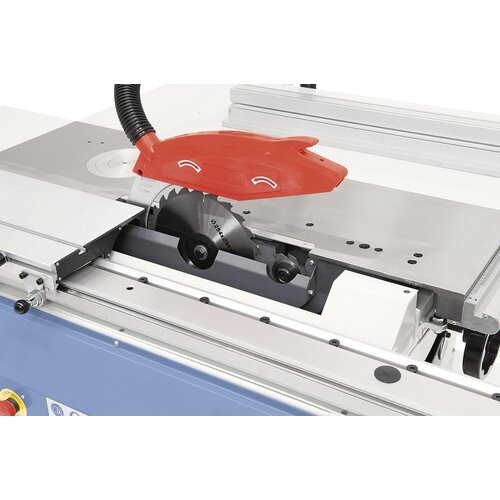

Sawblade cover with integrated dust port positioned at riving knife. Scoring unit is part of equipment.

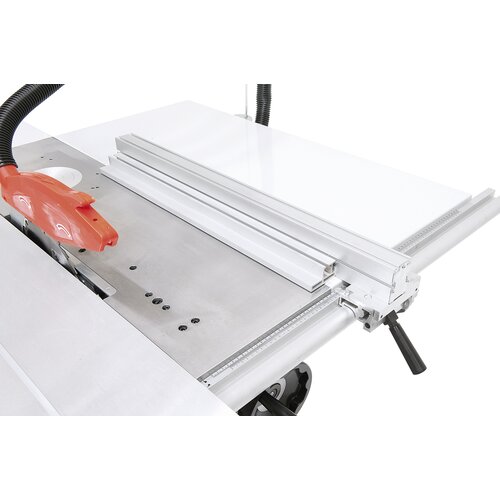

Parallel fence features quick and fine adjustment for a cutting width up to 700 mm.

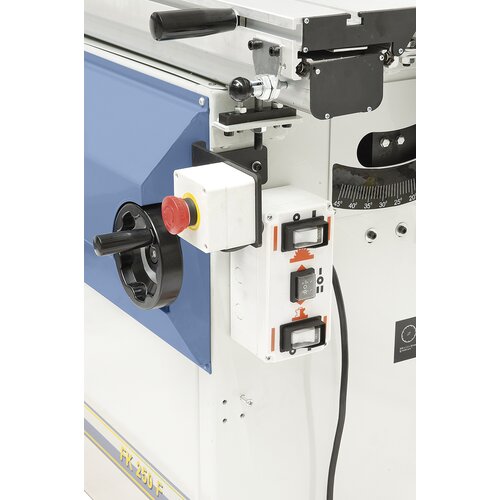

Control elements are clearly mounted on electronic panel.

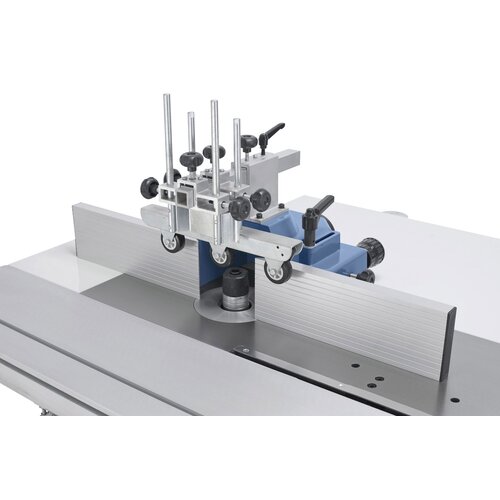

Moulding fence features fence rails made of anodized aluminium.

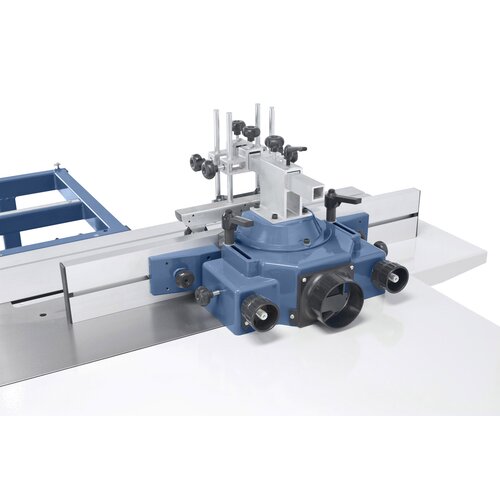

The moulding fence comes complete with fine adjustment. An integrated dust port allows for proper dust extraction.

FK 250 F - 230 V

Art.Nr.: 08-1173

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

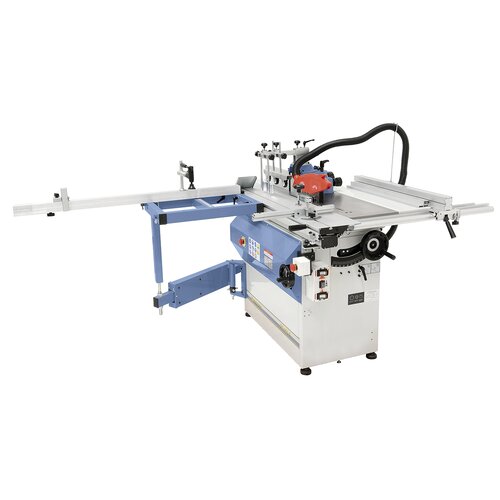

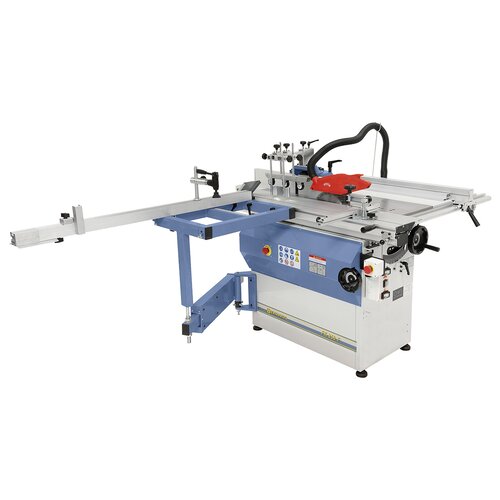

The FK 250 F circular saw & spindle moulder features a sliding table, making this model ideal for experienced craftsmen with high expectations. The extensive range of standard equipment (scoring unit, 3 spindle speeds, sliding table etc.) ensures an optimal price to performance ratio.

€4,284.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Extractable telescopic fence mountable at front or rear of square table
Solid square table for sufficient support when processing large panels
Amply sized, robust, grey cast-iron table eliminates vibrations
Spindle moulder unit features 3 different speeds (3500 / 5500 / 7000 rpm)
Smooth running, precise sliding table features hardened, prism-shaped guides
Ergonomically arranged handwheels for convenient adjustment of saw unit
Complete with telescopic arm and longitudinally adjustable square table
Moulding fence equipped with fine adjustment on both sides
Scoring unit and sawblade are part of standard equipment

Product Specifications

Circular saw
Table size	1045 x 300 mm
Table height	850 mm
Table extension	300 x 245 mm
Table enlargement	1045 x 500 mm
Square table	410 x 600 mm
Sliding table	1200 x 240 mm
Cutting length	1350 mm
Max. sawblade diameter	254 x 30 mm
Max. cutting height 90° / 45°	65 / 55 mm
Cutting width on rip fence	700 mm
Speed main sawblade	4050 rpm
Speed scoring sawblade	6300 rpm
Scoring sawblade	80 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Spindle moulder
Spindle diameter	30 mm
Height adjustment	150 mm
Table opening	150 mm
Working length of spindle	90 mm
Max. tool diameter
- at profiling	140 mm
- at tenoning	200 mm
Spindle speed	3500 / 5500 / 7000 rpm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	230 V
Machine dimension (W x D x H)	1500 x 1560 x 1250 mm
Weight approx	255 kg
