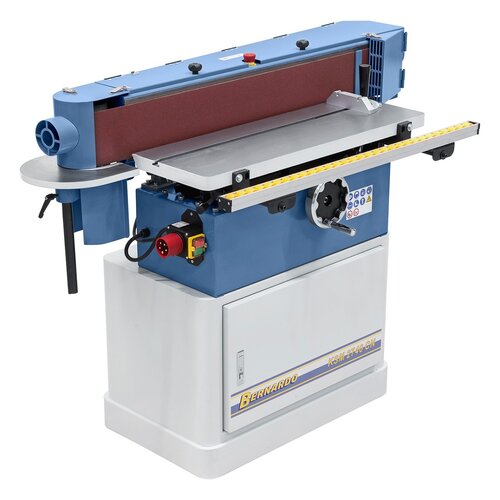

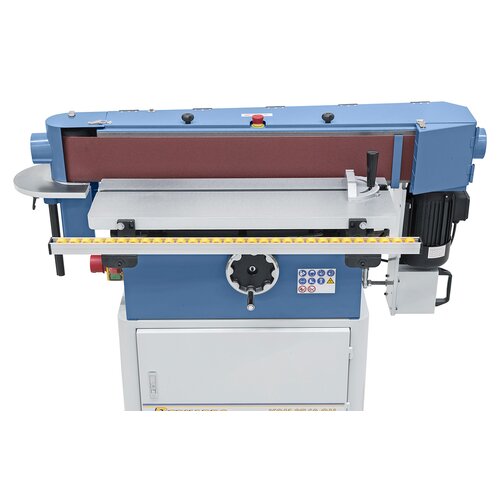

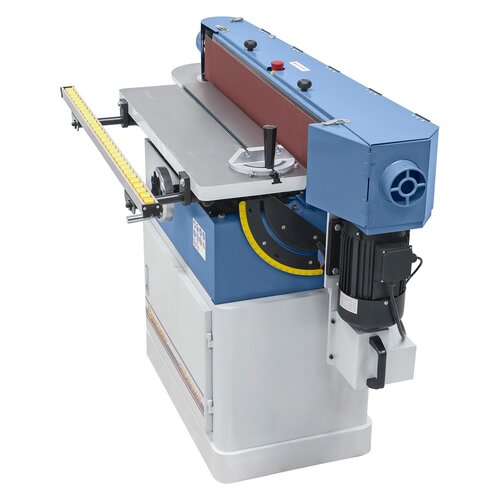

Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)

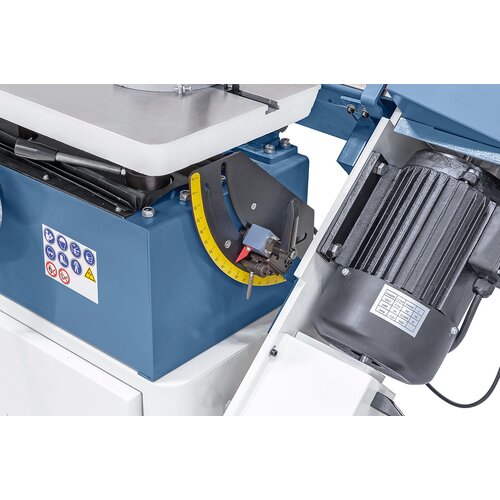

Robust tilting device, sanding unit can be set to an angle between 0º to 90º.
Robust tilting device, sanding unit can be set to an angle between 0º to 90º.

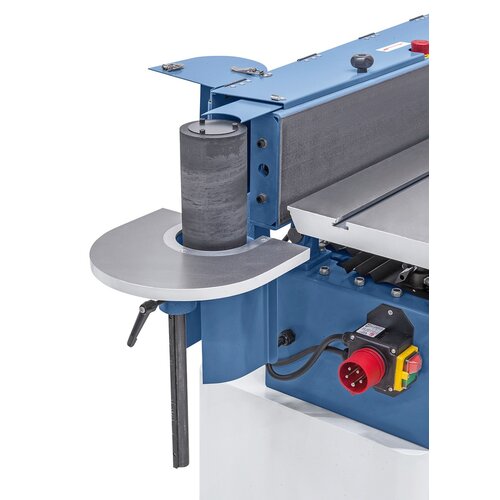

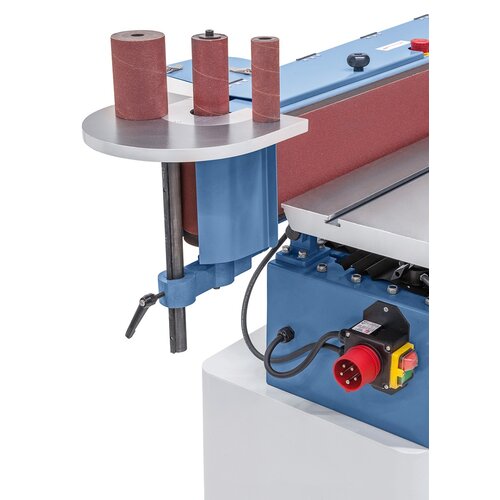

Three sanding sleeves for contour sanding are part ofstandard equipment.
Three sanding sleeves for contour sanding are part ofstandard equipment.
Rubber-coated sanding roller comes standard.
Rubber-coated sanding roller comes standard.

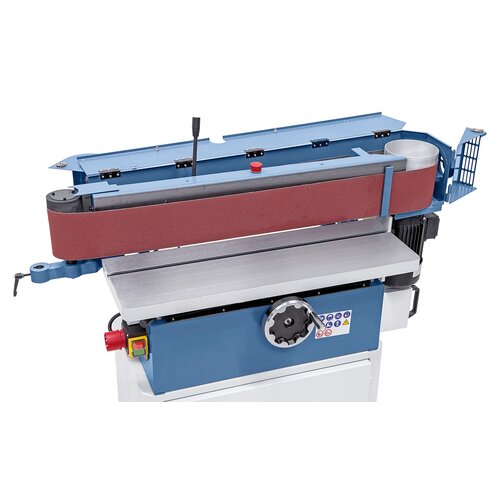

Steplessly tiltable sanding unit for vertical and horizontal sanding.
Steplessly tiltable sanding unit for vertical and horizontal sanding.

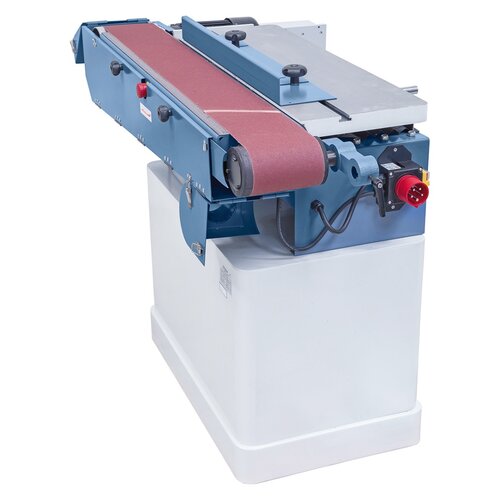

KSM 2740 CN with horizontally tilted sanding unit for a larger application area.
KSM 2740 CN with horizontally tilted sanding unit for a larger application area.

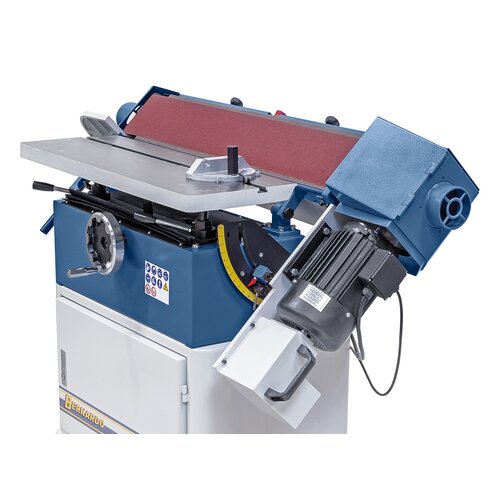

Picture shows tilted sanding unit (up to 90°) The height adjustable work table can additionally be moved from the front to the rear.
Picture shows tilted sanding unit (up to 90°) The height adjustable work table can additionally be moved from the front to the rear.

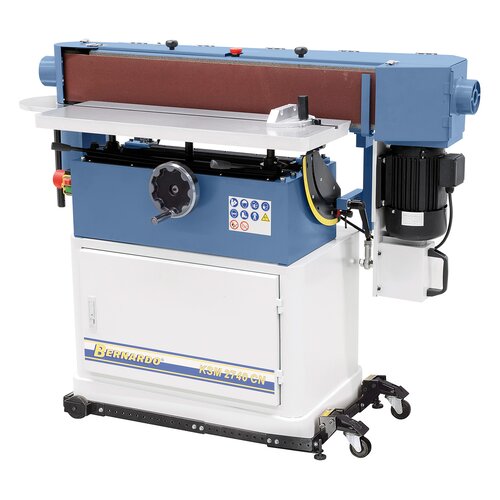

Universal mobile base allows for easy change of location (optional extra).
Universal mobile base allows for easy change of location (optional extra).
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Robust tilting device, sanding unit can be set to an angle between 0º to 90º.
Three sanding sleeves for contour sanding are part ofstandard equipment.
Rubber-coated sanding roller comes standard.
Steplessly tiltable sanding unit for vertical and horizontal sanding.
KSM 2740 CN with horizontally tilted sanding unit for a larger application area.
Picture shows tilted sanding unit (up to 90°) The height adjustable work table can additionally be moved from the front to the rear.
Universal mobile base allows for easy change of location (optional extra).

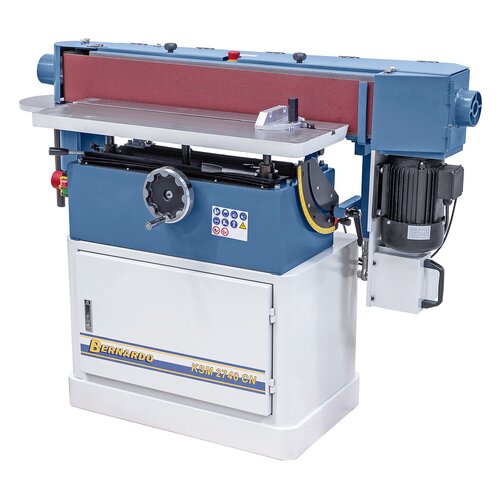

Edge sanding machine with oscillation KSM 2740 CN

Art.Nr.: 11-4199
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The KSM 2740 CN is a robust edge sanding machine complete with mechanical oscillation of sanding belt. The extensive standard equipment and the optimal price-to-performance ratio make this versatile machine an ideal solution for professional users.

€2,256.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Oscillating sanding belt guarantees sufficient removal and even results
  • Spring balanced belt tension ensures automatic adjustment of differences in sanding belt lengths
  • Amply sized work table features integrated T-slot for mounting of mitre fence
  • Quick clamping lever allows for convenient change of sanding belt
  • Sanding unit tilts steplessly for vertical and horizontal sanding operations
  • Graphite coating on sanding table increases gliding capacity of sanding belt
  • Additional emergency stop-button on sanding unit for maximum safety
  • Height adjustable work table can be moved to front or rear
  • Comes complete with three replaceable sanding sleeves (38, 50 and 76 mm)
  • Support table features height adjustment and four inserts for sanding rollers
  • Dust port (100 mm) on both sides for optimal dust removal
  • Handwheel ensures user-friendly height adjustment of work table

Product Specifications

Work table

900 x 305 mm

Table height adjustment

120 mm

Belt length

2740 mm

Belt width

150 mm

Sanding table

1010 x 175 mm

Sanding unit tiltable

90° - 0°

Belt speed

16 m/sec.

Supporting table

290 x 260 mm

Oscillation stroke

12 mm

Dust extraction outlet

2 x 100 mm

Motor power output S1 100%

2,2 kW (3,0 HP)

Motor power input S6 40%

3,0 kW (4,0 HP)

Voltage

400 V

Machine dimension (W x D x H)

1540 x 750 x 1140 mm

Weight approx.

220 kg

Delivery Contents

  • Sanding belt oscillation
  • Support table
  • Graphite coating
  • 3 sanding rollers
  • Mitre fence
  • 3 sanding sleeves diam. 38 / 50 / 76 mm - grit 100
  • Sanding belt 2740 x 150 mm - grit 100
  • Stop bar
  • Switch-plug-combination
  • Emergency stop at sanding unit
  • Rubber coated sanding roller
  • Stand with tool storage
  • Tools
