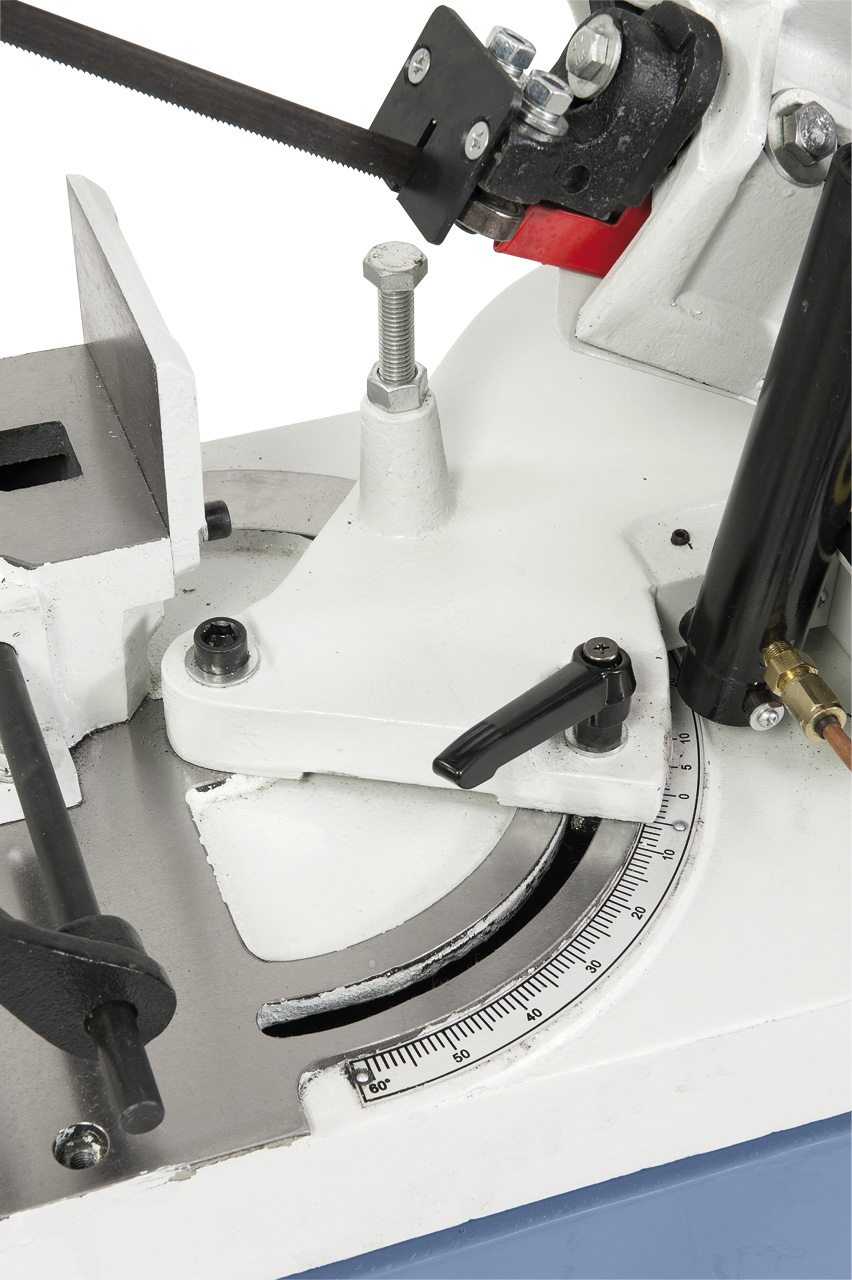

Tiltable saw frame for double mitre cutting from -45° to +60°.

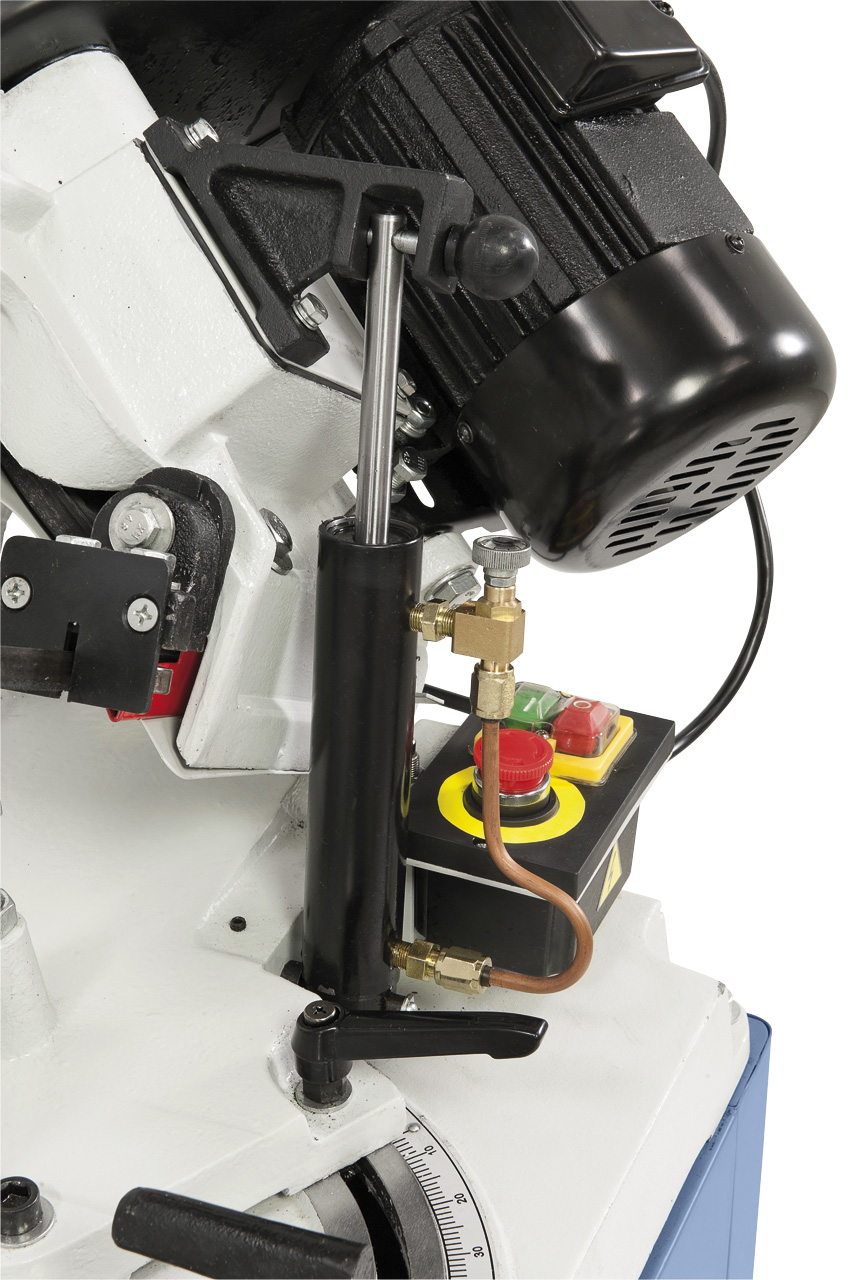

For accurate lowering of the saw frame serially equipped with hydraulic cylinder.

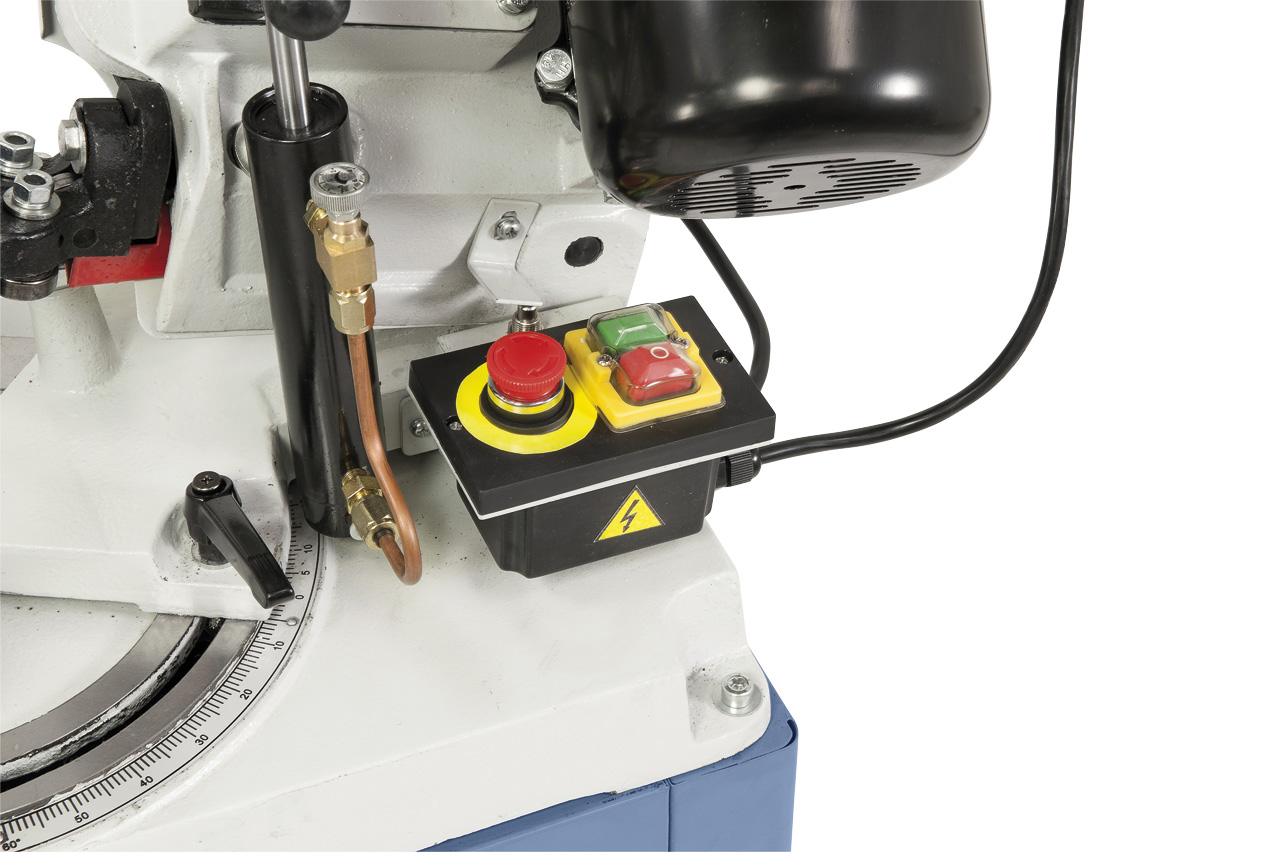

Serially equipped with automatic shutdown when cutting is complete, on-off-switch according to IP 54.

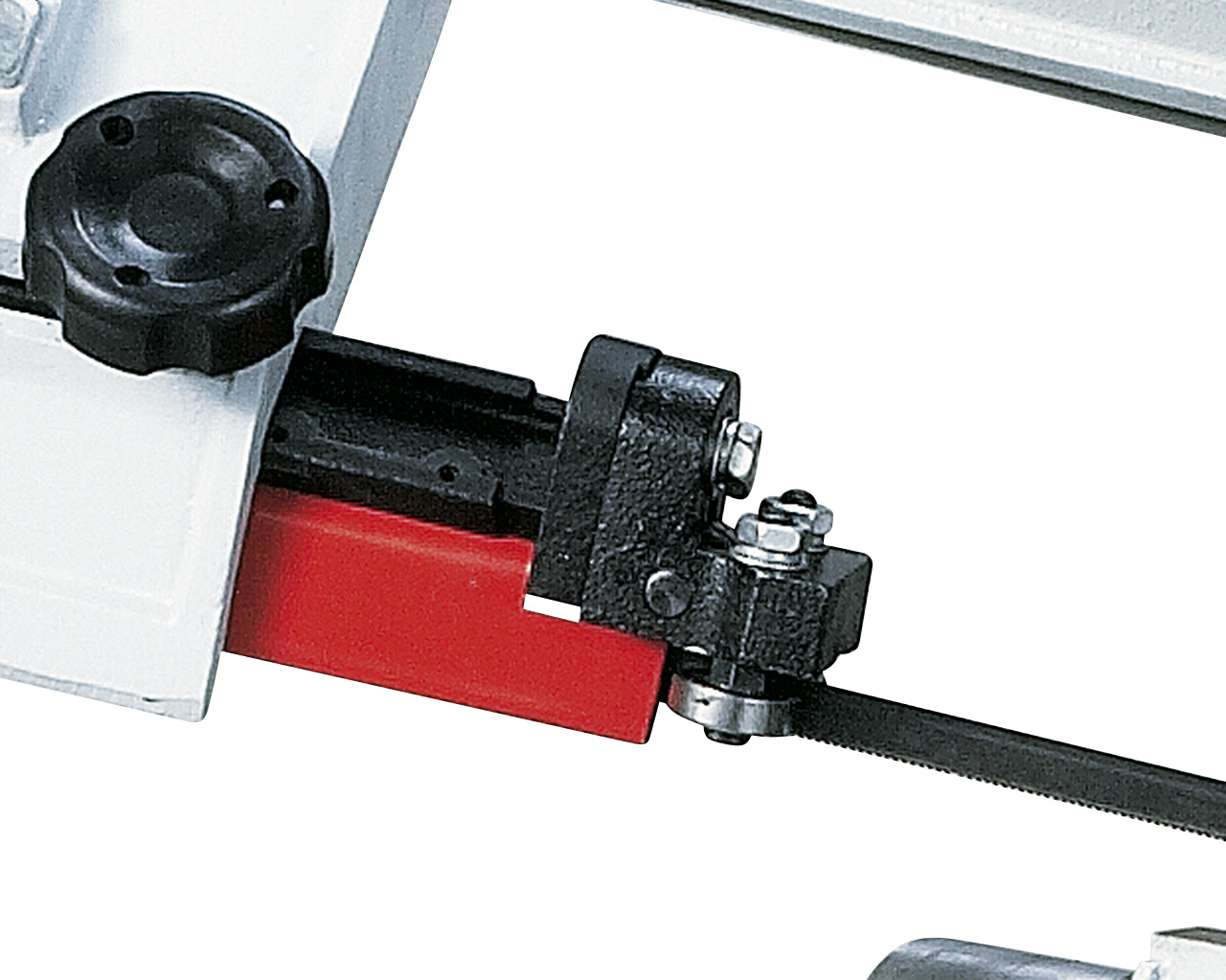

Bandsaw blade guides feature ball bearings adjustable to any workpiece.

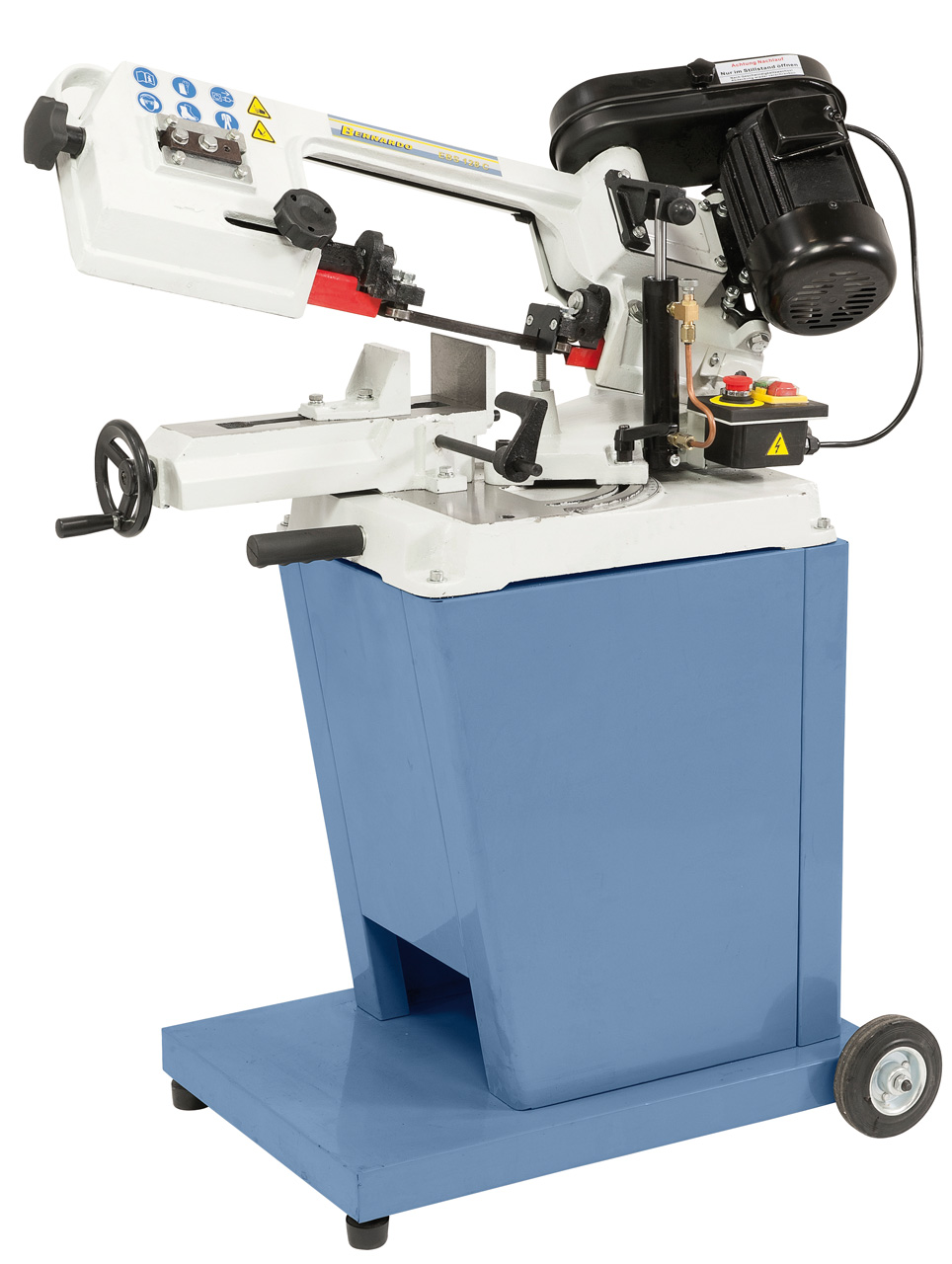

Double mitre bandsaw EBS 128 C / 230 V
Art.Nr.: 04-1106The low-cost double mitre bandsaw EBS 128 C with the ideal cutting capacity for the amateur features high efficiency and easy handling.
€768.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- Double mitre cutting on both sides (+45° to -60 °)
- Stepless, hydraulic saw frame lowering
- Automatic shut-down at cutting end
- Torsion-free, solid saw frame
- 3 speed setting adjustable by v-belt
- Solid construction allowing smooth running free of vibrations
- Saw frame tilts for mitre cutting

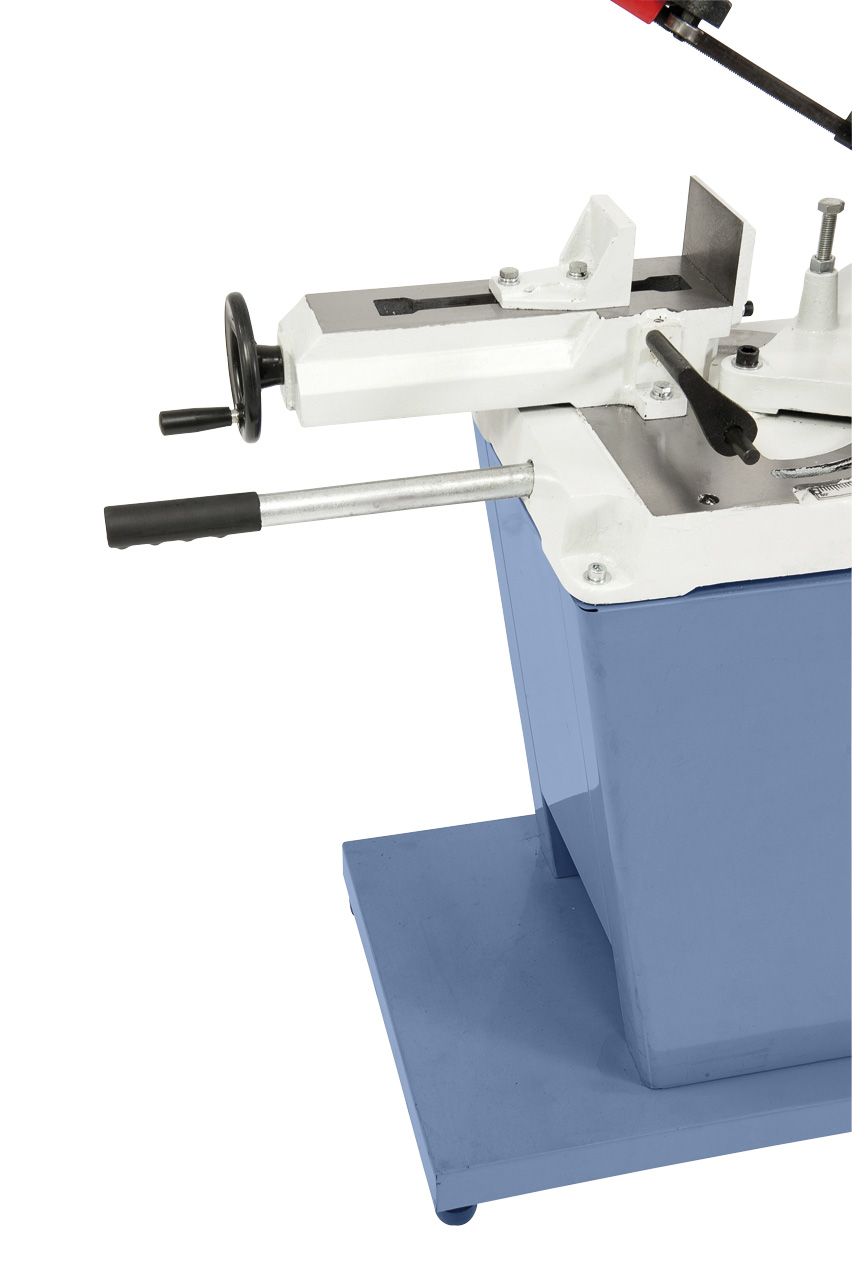

- Quick clamping vice and material fence included
Product Specifications
|
Cutting capacity round 90° |
125 mm |
|
Cutting capacity flat 90° |
100 x 150 mm |
|
Cutting capacity round 45° |
95 mm |
|
Cutting capacity flat 45° |
95 x 76 mm |
|
Cutting capacity round 60° |
50 mm |
|
Cutting capacity flat 60° |
50 x 56 mm |
|
Working height |
730 mm |
|
Bandsaw blade dimensions |
1638 x 13 x 0,65 mm |
|
Cutting speeds |
23 / 34 / 54 m/min |
|
Motor power output S1 100% |
0,55 kW |
|
Motor power input S6 40% |
0,75 kW |
|
Voltage |
230 V |
|
Machine dimensions (L x D x H) |
1000 x 550 x 1100 mm |
|
Weight approx. |
68 kg |
Delivery Contents
- Bandsaw blade
- Quick clamping vice
- Material fence
- Automatic shut-down
- Mobile machine base
- Hydraulic cylinder
- Separate emergency stop button according CE
