Self-centering chuck 40/70 (optional).
Self-centering chuck 40/70 (optional).
4-jaw chuck 150 mm (optional).
4-jaw chuck 150 mm (optional).
3-jaw chuck 150 mm (optional).
3-jaw chuck 150 mm (optional).

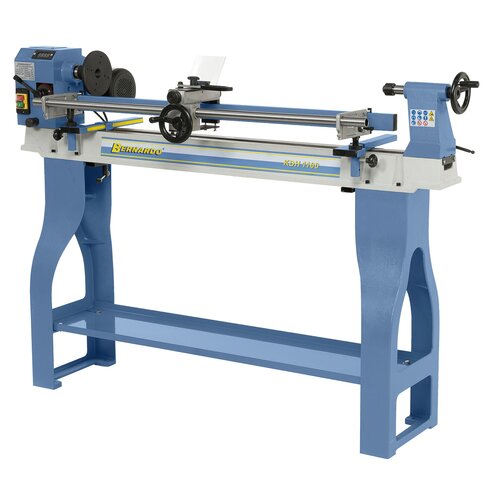

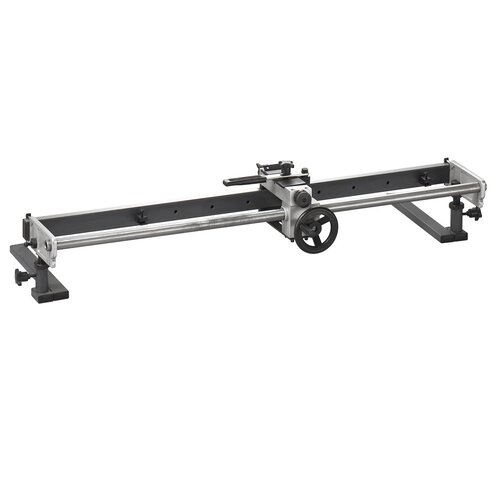

Part of the standard equipment is a copying device for efficient copying of original parts or templates.
Part of the standard equipment is a copying device for efficient copying of original parts or templates.

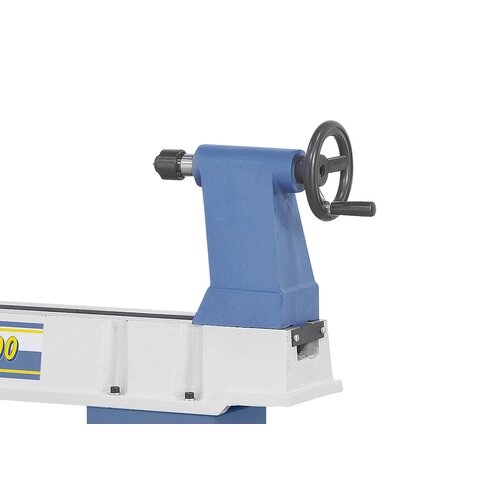

Sleeve features bore which is ideal for eg. creating cable shafts in lamp bases.
Sleeve features bore which is ideal for eg. creating cable shafts in lamp bases.

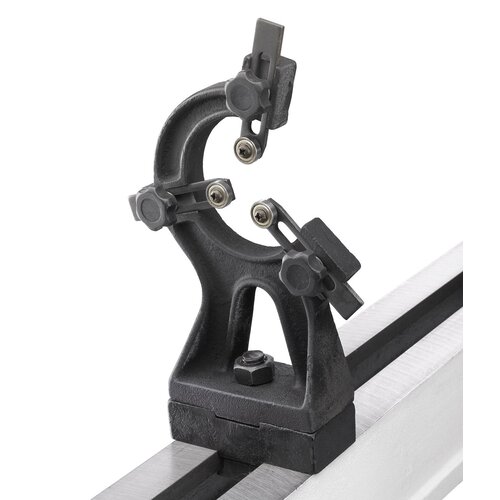

Optionally available with steady rest.
Optionally available with steady rest.

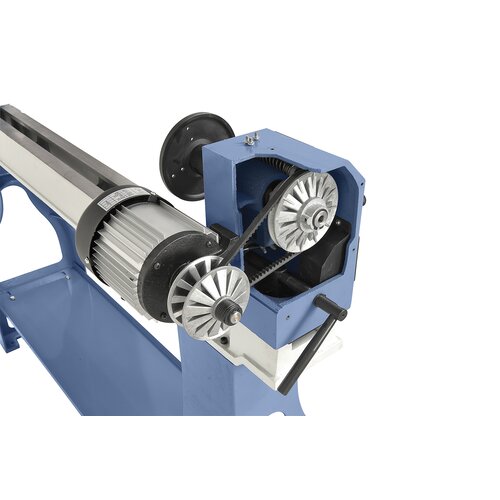

Solid variator drive ensures effective speed transmission from motor to spindle.
Solid variator drive ensures effective speed transmission from motor to spindle.

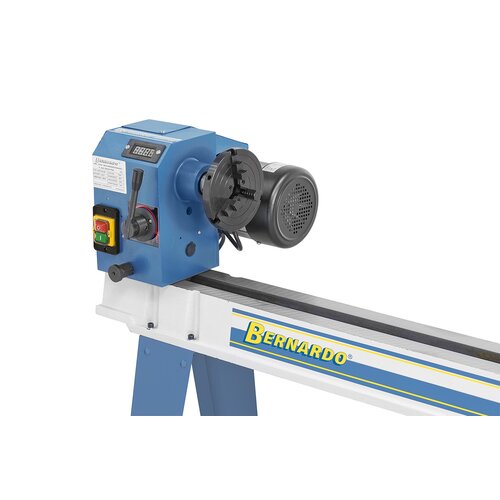

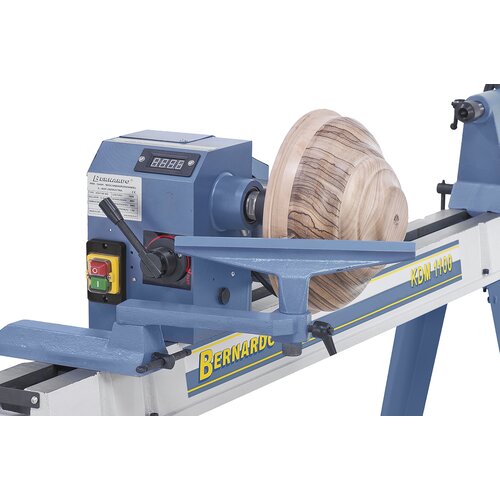

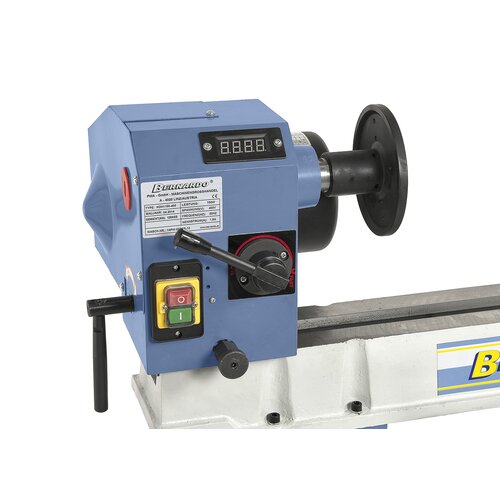

Comes complete with a digital display to allow for convenient speed adjustment.
Comes complete with a digital display to allow for convenient speed adjustment.

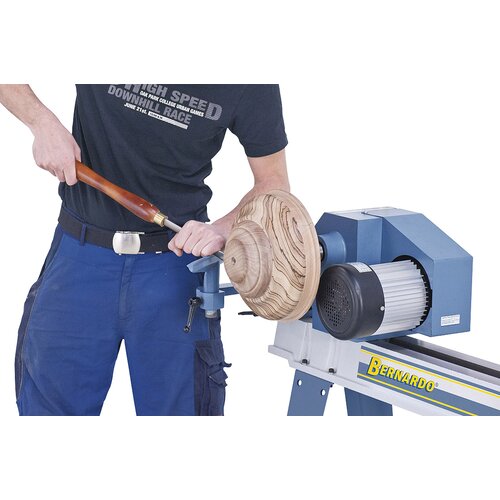

Spindle stock tilts 90° to allow for processing of large workpieces.
Spindle stock tilts 90° to allow for processing of large workpieces.
Self-centering chuck 40/70 (optional).
4-jaw chuck 150 mm (optional).
3-jaw chuck 150 mm (optional).
Part of the standard equipment is a copying device for efficient copying of original parts or templates.
Sleeve features bore which is ideal for eg. creating cable shafts in lamp bases.
Optionally available with steady rest.
Solid variator drive ensures effective speed transmission from motor to spindle.
Comes complete with a digital display to allow for convenient speed adjustment.
Spindle stock tilts 90° to allow for processing of large workpieces.

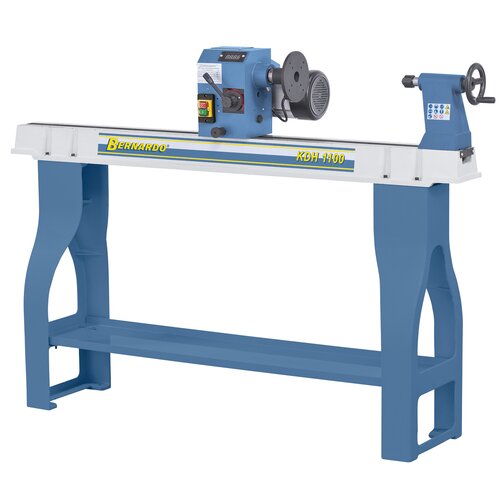

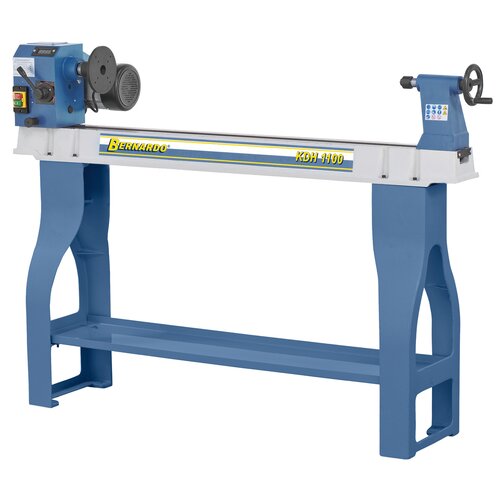

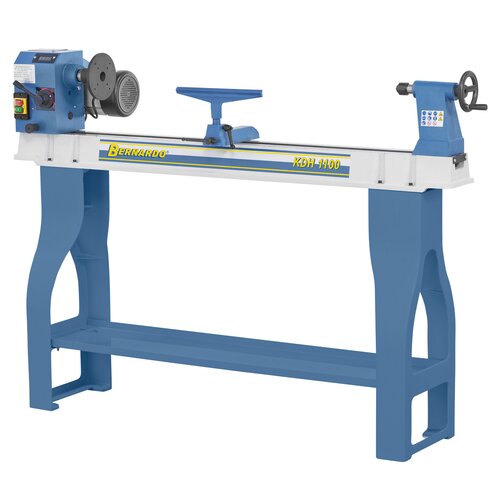

Copying woodturning lathe KDH 1100 / 400 V with copy device

Art.Nr.: 10-1112
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The woodturning lathe KDH 1100 comes complete with a copying device as well as an extensive range of standard accessories. The solid cast construction and the attractive price-to-performance ratio make this machine the ideal entry-level model.

€996.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Copying device allows copying of original parts or templates
  • Tailstock sleeve with bore ensures convenient processing of long workpieces
  • Digital display guarantees easy speed adjustment
  • Comes complete with a robust cast-iron machine base
  • Stepless speed setting allows optimal adjustment to each workpiece
  • Solid, precisely bedded spindle ensures high concentricity
  • Turnable spindle stock for working outside of the machine bed
  • Grey cast-iron construction for vibration-free work
  • High-quality belt drive ensures optimal power transmission from motor to spindle
  • Quick clamping lever enables fast locking of tailstock onto machine bed

Product Specifications

Distance between centers

1100 mm

Working diameter



          - over guideway

370 mm

          - at copying

160 mm

Spindle speed, stepless

500 - 2000 rpm

Spindle thread

M 33 x 3,5 mm

Taper of tailstock sleeve

MT 2

Travel of tailstock sleeve

50 mm

Copying length

850 mm

Motor power output S1 100%

0,75 kW (1,0 HP)

Motor power input S6 40%

1,1 kW (1,5 HP)

Voltage

400 V

Machine dimension (W x D x H)

1650 x 750 x 1210 mm

Weight approx.

128 kg

Delivery Contents

  • Tool rest 300 mm
  • Face plate 150 mm
  • Live center
  • Spore drive center
  • Copying device
  • Stepless speed adjustment
  • Digital speed indication
  • Stand
  • Tools
