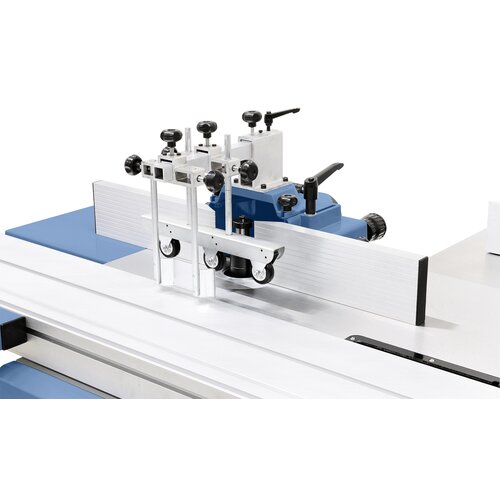

Aluminium fence rails come with fine adjustment and can easily and quickly be adjusted to each milling tool.

Milling spindle tilts to the back, bringing several advantages, such as optimal use of the power feed, maximum safety and tidy milling results.

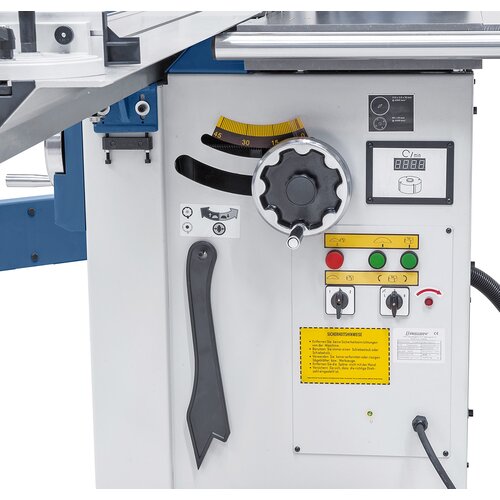

Electronic display of spindle speed settings.

Complete with scoring unit for burr-free operation of panels.

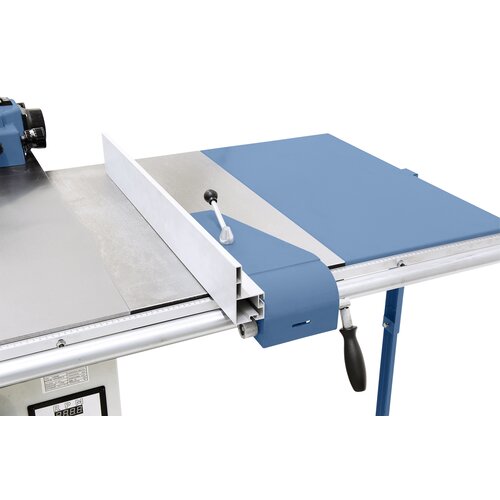

Parallel fence with solid round guide (40 mm) can be used for cutting width of up to 1220 mm.

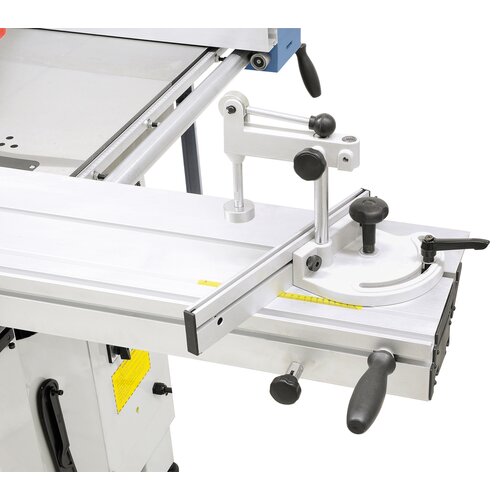

T-slot in sliding table allows mounting of mitre fence and end stop.

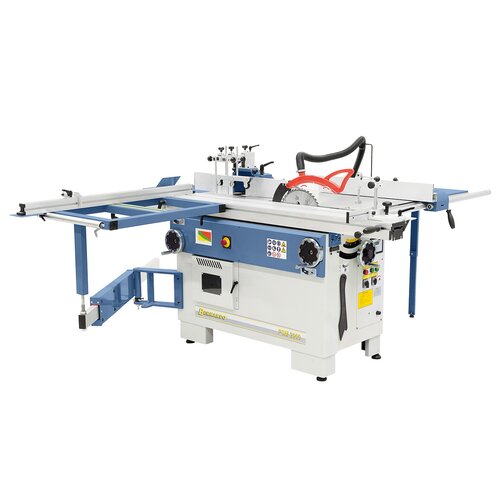

Circular saw & spindle moulder PSM 2000 / 400 V *

Art.Nr.: 08-1185

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The PSM-series sliding table saw and spindle moulders are available with a table length of 2000 or 2600 mm. Part of the standard equipment are 2 motors, a sawblade (315 mm) for cutting height up to 315 mm and a scoring unit for smooth processing of coated materials. The wide range of standard equipment allow these models to offer an extraordinary performance and a maximum number of applications.

€5,472.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

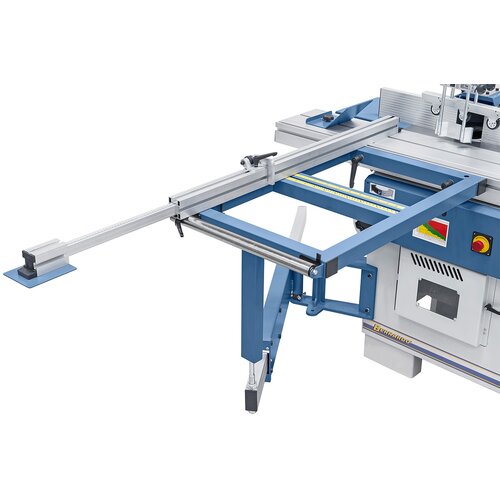

Square table with roller for convenient handling of larger workpieces
Telescopic-longitudinal fence comes complete with end stop feat. fine adjustment
Quick and easy readout of spindle speed on digital display

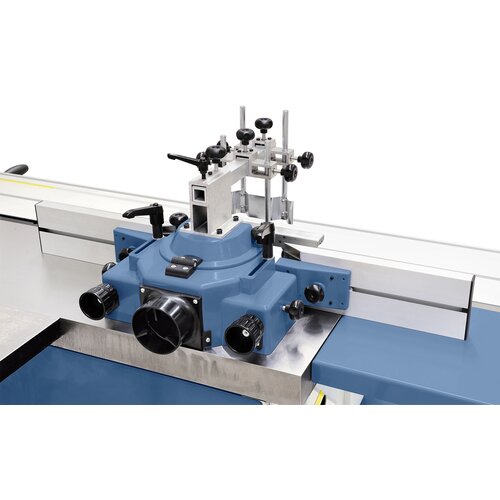

Solid moulding fence features finely adjustable aluminium fence rails

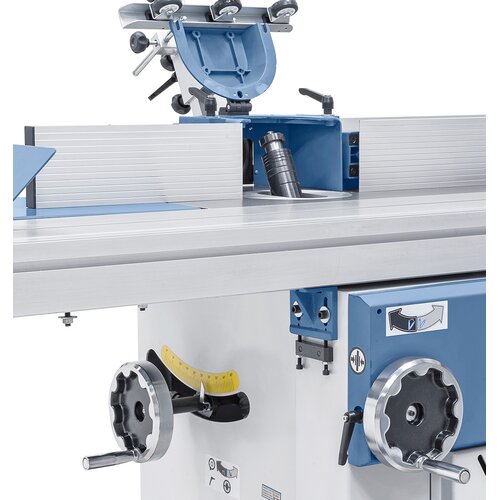

Large, grey cast-iron moulder unit, tilts from 0° to -45°

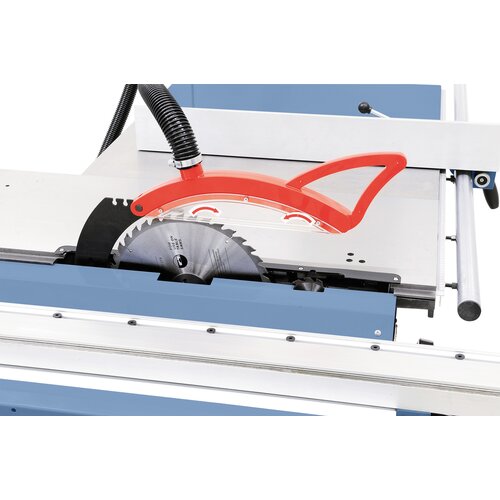

Important feature: Sawblade 315 mm can be used when scoring unit is mounted
Machine body consists of torsion-free combination of steel and grey cast iron
Solid square table allows processing of large, heavy panels without additional support

Product Specifications

Circular saw
Table size	1300 x 380 mm
Table height	970 mm
Table extension	350 x 310 mm
Table enlargement	800 x 880 mm
Square table with roll	940 x 580 mm
Sliding table	2000 x 270 mm
Cutting length	2000 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90°/ 45°	100 / 80 mm
Cutting width on rip fence	1220 mm
Speed main sawblade	4500 rpm
Speed scoring sawblade	8500 rpm
Scoring sawblade	90 x 20 mm
Dust extraction outlet	95 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Spindle moulder
Spindle diameter	30 mm
Height adjustment	140 mm
Spindle tiltable	0° to 45°
Table opening	200 mm
Working length of spindle	110 mm
Max. tool diameter	180 mm
Spindle speed	1800 / 3000 / 6000 / 9000 rpm
Motor power output S₁ 100%	2,8 kW (3,8 HP)
Motor power input S₆ 40%	3,9 kW (5,3 HP)
Voltage	400 V
Machine dimension (W x D x H)	2000 x 2900 x 1260 mm
Weight approx.	425 kg
