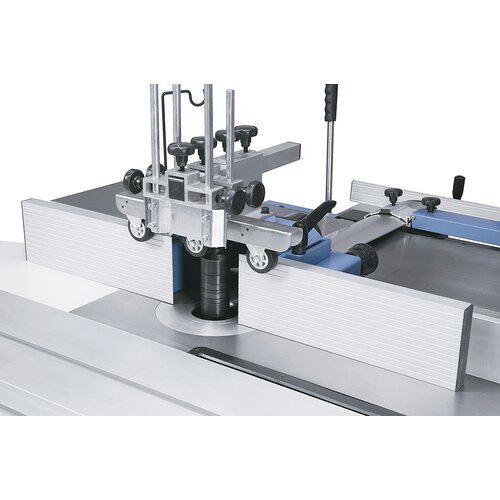

Solid moulding fence features fence rails with fine adjustment.

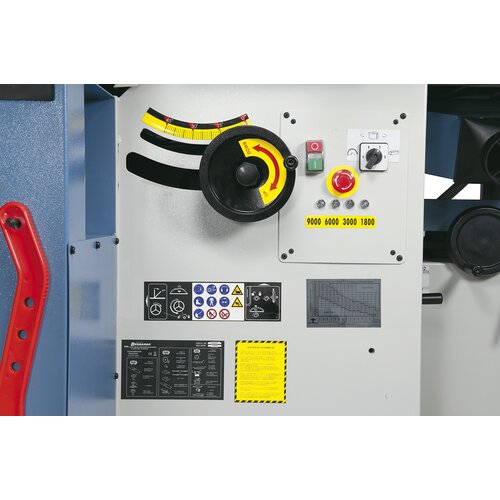

User-friendly arranged switches and control elements, electronic speed display via LED.

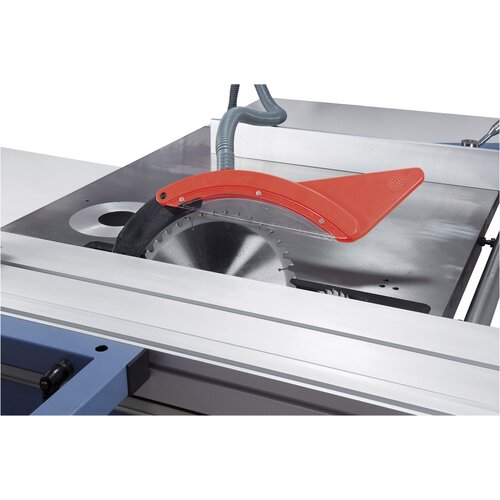

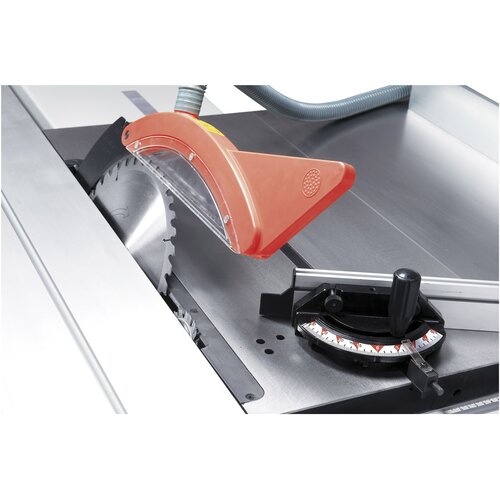

The saw unit, tiltable up to 45º, can be adjusted for a cutting height up to 100 mm, by using the handwheel.

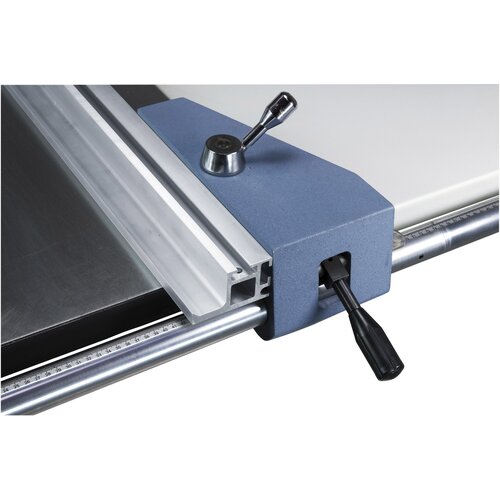

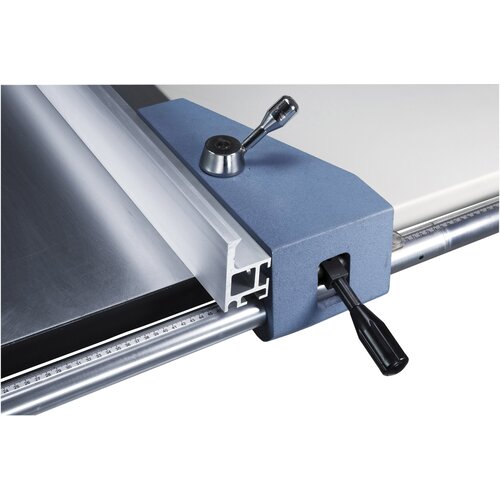

The anodized parallel fence features a uniquely shaped profile and allows viewing of the scale whether using the high or low guide fence.

Solid square table with roller for easier handling of large workpieces.

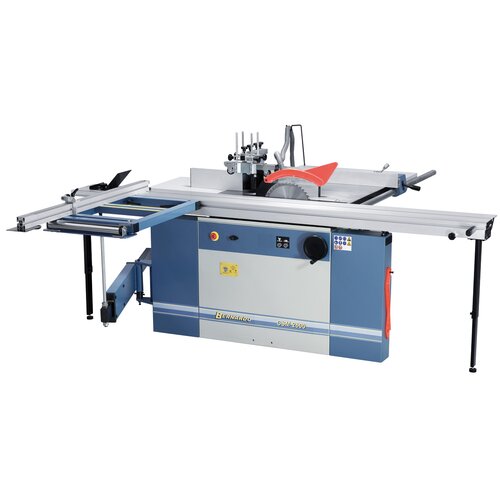

Circular saw & spindle moulder CSM 2600 / 400 V *

Art.Nr.: 08-1182

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The CSM 2600 is a combination of sliding saw and spindle moulder, featuring 2 motors, making it an ultimate processing centre for professional users. The robust construction as well as the generous dimensions of this machine create perfect working conditions for cutting solid timber or large panel. Even decorative panels can easily be processed by using the scoring unit which is part of standard accessories.

€4,788.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Solid square table allows processing of large, heavy panel without additional support
Table extension for cutting width up to 1270 mm is included
Complete with 4 milling speeds, quick and easy to read on LED
Moulder fence with anodized fence rails and fine adjustment
Equipped with table extension and enlargement for sufficient support of large, heavy panel
Parallel fence tilts and features a 40 mm round rod guiding

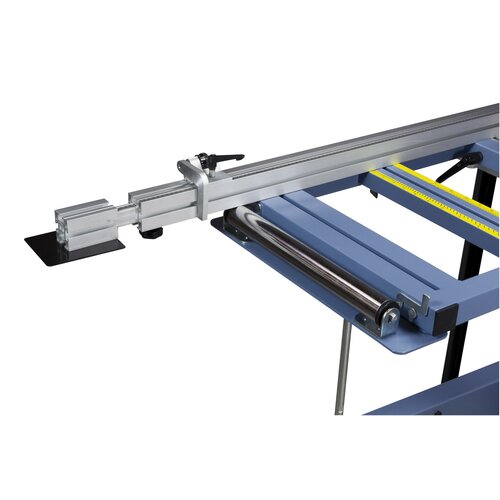

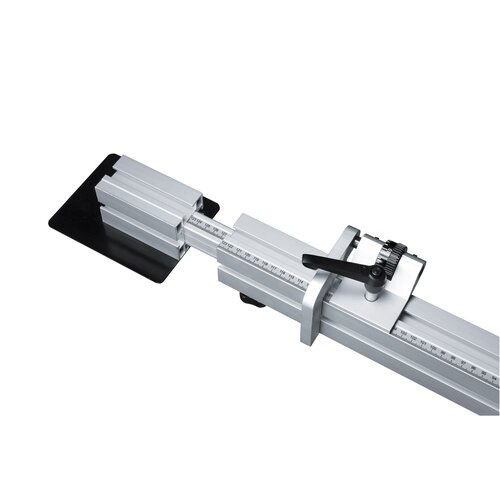

Extractable telescopic fence (up to 2260 mm), can be mounted at front or rear of square table
Solid parallel fence with magnifier guarantees high user comfort
Large, grey cast-iron machine table, precisely manufactured and polished

Product Specifications

Circular saw
Table siz	860 x 450 mm
Table height	850 mm
Table extension	500 x 310 mm
Table enlargement	860 x 880 mm
Square table with roll	760 x 530 mm
Sliding table	2600 x 270 mm
Cutting length	2600 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90° / 45°	100 / 80 mm
Cutting width on rip fence	1270 mm
Speed main sawblade	4500 rpm
Speed scoring sawblade	8500 rpm
Scoring sawblade	2-100 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,8 kW (3,8 HP)
Motor power input S₆ 40%	3,9 kW (5,3 HP)
Spindle moulder
Spindle diameter	30 mm
Height adjustment	100 mm
Table opening	80 / 100 / 140 / 190 mm
Working length of spindle	100 mm
Max. tool diameter
- at profiling	180 mm
- at tenoning	200 mm
Spindle speed	1800 / 3000 / 6000 / 9000 rpm
Motor power output S₁ 100%	2,8 kW (3,8 HP)
Motor power input S₆ 40%	3,9 kW (5,3 HP)
Voltage	400 V
Machine dimension (W x D x H)	2600 x 3090 x 1250 mm
Weight approx.	391 kg
