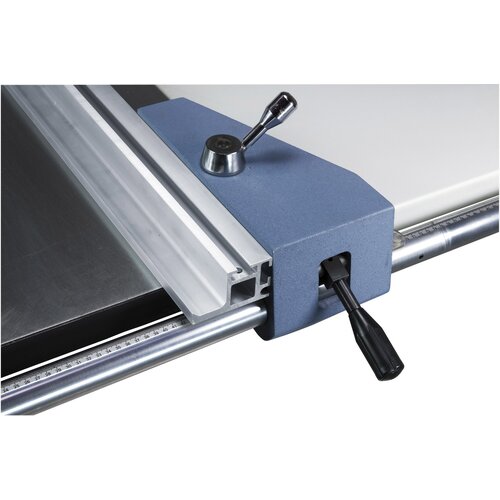

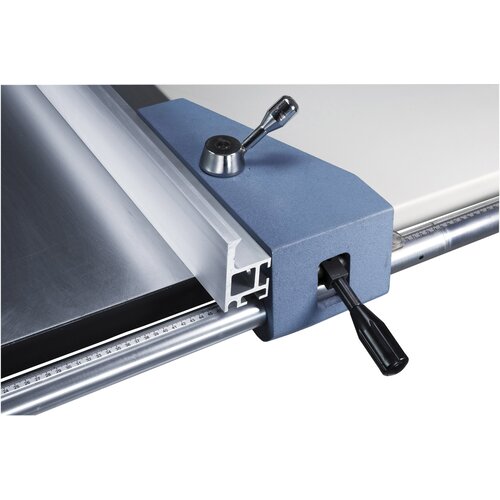

Aluminium fence rails come with fine adjustment and can easily and quickly be adjusted to each milling tool.

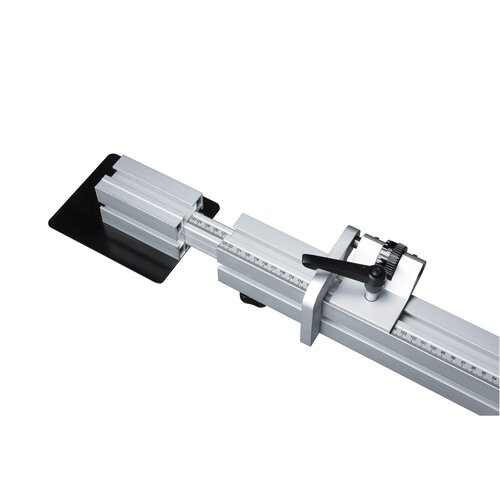

Extractable telescopic fence (up to 2260 mm) with stop featuring fi ne adjustment.

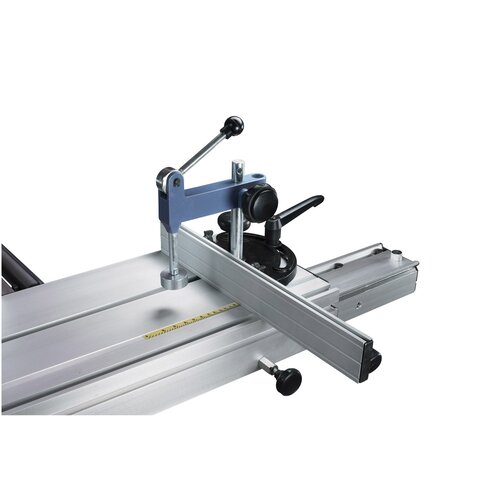

T-slot in sliding table allows mounting of mitre fence and end stop.

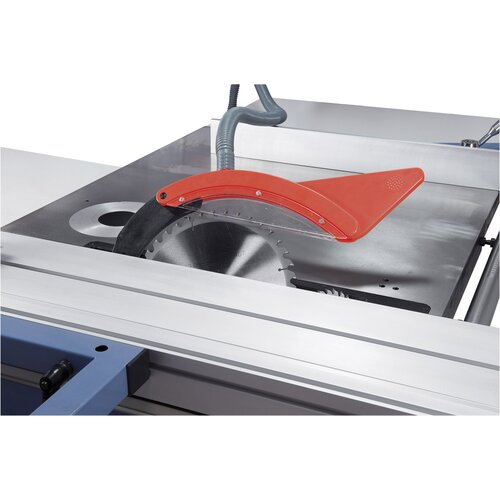

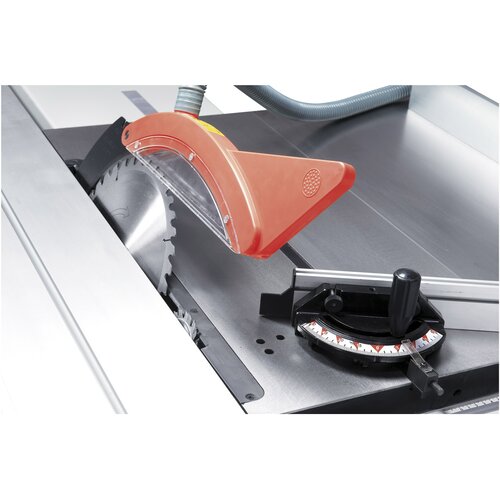

Sawblade can be tilted from 90º to 45º for angular cutting. Mitre fence can be used for cuts up to 60º.

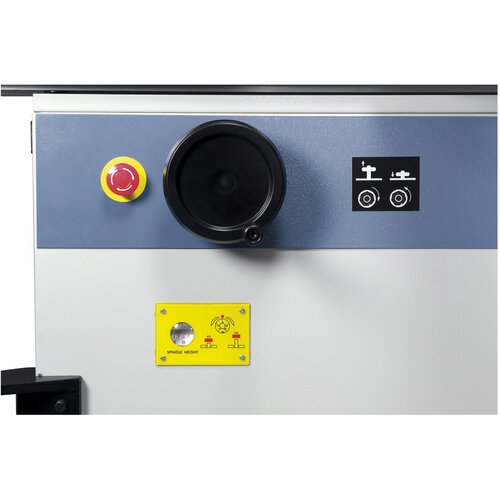

Handwheel ensures quick and easy height adjustmentof milling spindle, easy to read with magnifier.

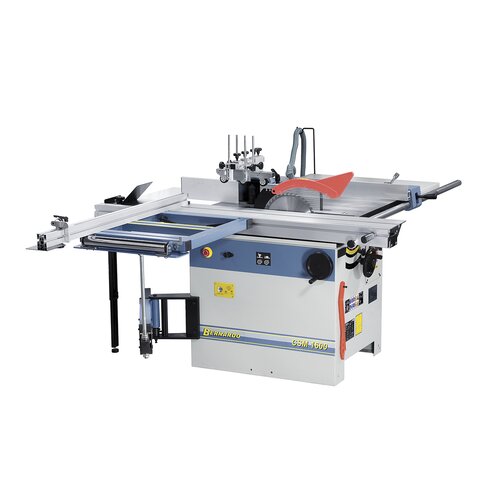

Circular saw & spindle moulder CSM 1600 / 400 V

Art.Nr.: 08-1180

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The CSM 1600 circular saw & spindle moulder with tiltable sawblade and scoring unit as part of the standard accessories, are ideal models for price-conscious users. The wide range of standard equipment allow these models to offer an extraordinary performance and a maximum number of applications.

€4,392.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Handwheel on front of machine allows for height adjustment of milling spindle, easy to read on scale
Powerful motor guarantees optimal cutting capacity even at continuous operation

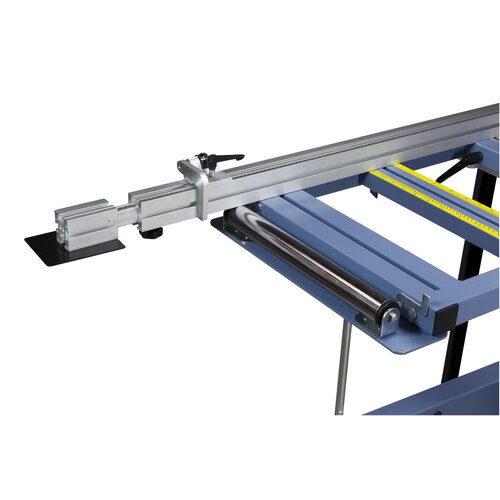

Square table with roller for convenient handling of larger workpieces
Extractable telescopic fence (up to 2260 mm), mountable at front or rear of square table
Telescopic-longitudinal fence comes complete with end stop feat. fi ne adjustment
All aluminium parts (sliding table, fences,...) are anodized
LED speed display guarantees easy read-out
Aluminium sliding table features hardened guide rails

Product Specifications

Circular saw
Table size	860 x 450 mm
Table height	850 mm
Table extension	500 x 310 mm
Table enlargement	800 x 880 mm
Square table with roll	750 x 580 mm
Sliding table	1600 x 270 mm
Cutting length	1600 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90°/45°	100 / 80 mm
Cutting width on rip fence	1270 mm
Speed main sawblade	4500 rpm
Speed scoring sawblade	8500 rpm
Scoring sawblade	2-100 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,8 kW (3,8 HP)
Motor power input S₆ 40%	3,9 kW (5,3 HP)
Spindle moulder
Spindle diameter	30 mm
Height adjustment	100 mm
Table opening	80 / 100 / 140 / 190 mm
Working length of spindle	100 mm
Max. tool diameter
- at profiling	180 mm
- at tenoning	200 mm
Spindle speed	1800 / 3000 / 6000 / 9000 rpm
Motor power output S₁ 100%	2,8 kW (3,8 HP)
Motor power input S₆ 40%	3,9 kW (5,3 HP)
Voltage	400 V
Machine dimension (W x D x H)	1600 x 3010 x 1250 mm
Weight approx.	352 kg
