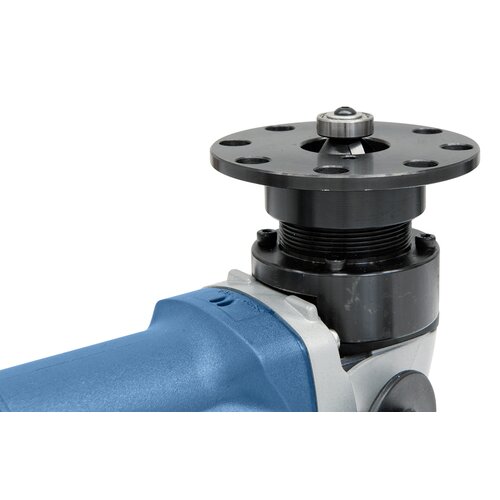

45° milling head incl. 2 pcs. carbide inserts, comes standard

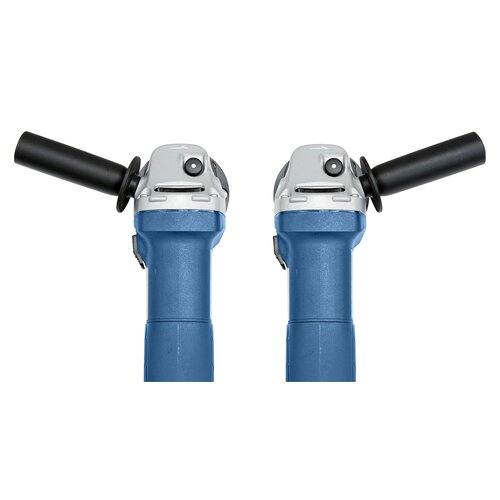

Ergonomic handle for high work comfort, alternatively mountable on the left or right side.

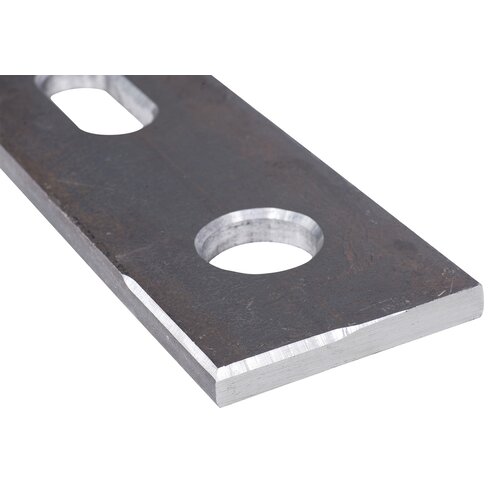

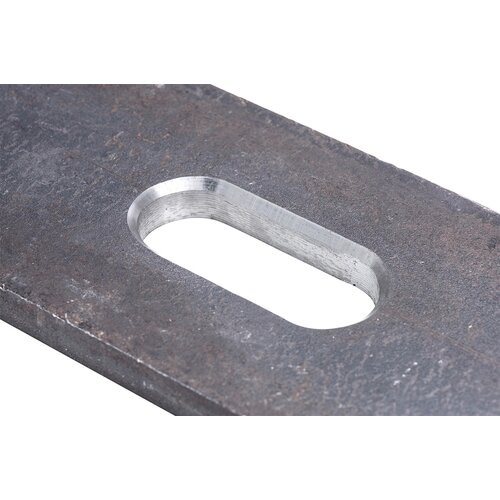

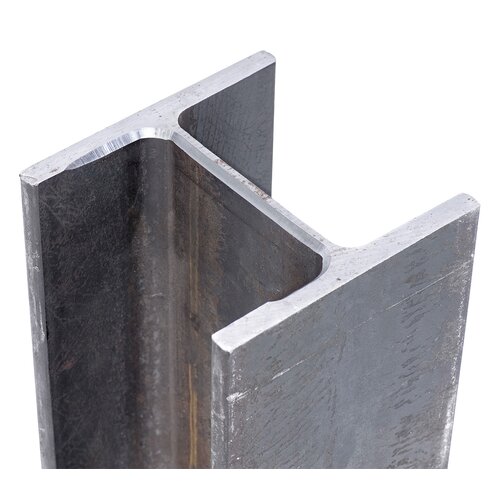

Examples of use

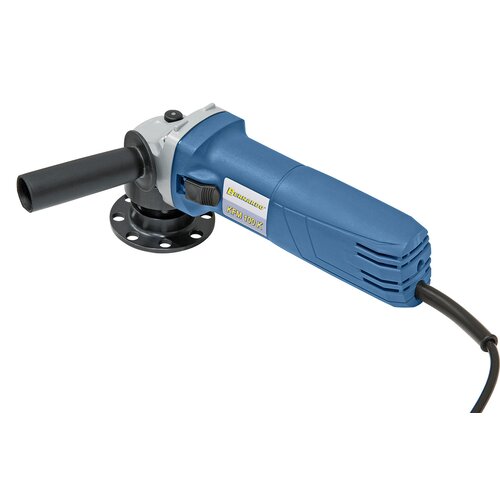

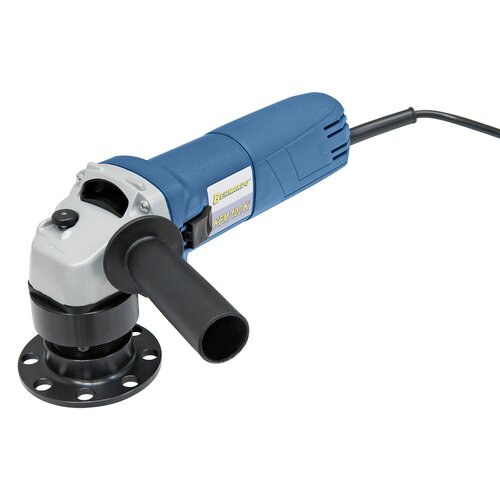

Circular chamfering machine KFM 100 K

Art. No.: 05-1646

Wishlist Comparison List

The chamfering machine KFM 100 K is the ideal model for chamfering and deburring various materials. The cost-effective model is suitable for chamfering of inner and outer edges, as well as for milling of contours and drilled holes from diam. 20 mm.

€246.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Complete with mill head 45° and 2 TiN-coated inserts
Light-weight, compact construction allows user-friendly handling
Processing of differently shaped workpieces
Stepless adjustment of the chamfering width from 0 - 4 mm
Ergonomic two-hand control ensures high working comfort
Suitable for processing of steel, stainless steel, plastics and non-ferrous materials
Quick and easy removal of raw cutting edges
Great for creating clean visible edges with excellent surface quality
Perfect for removal of sharp edges and corners

Product Specifications

Bevel angle	45°
Width of bevel	4 mm
Bevel dimension adjustable	0,1 mm
Smallest inner radius	20 mm
Quantity of inserts	2 pcs.
Speed	10.000 rpm
Motor power	720 W
Voltage	230 V
Machine dimension (L x W x H)	300 x 190 x 140 mm
Weight approx.	3,5 kg
