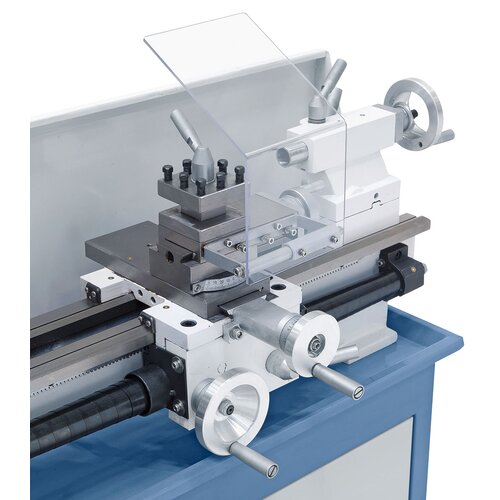

To reduce downtime significantly, the machine can be equipped with a quick change set model BERNARDO size 10
To reduce downtime significantly, the machine can be equipped with a quick change set model BERNARDO size 10

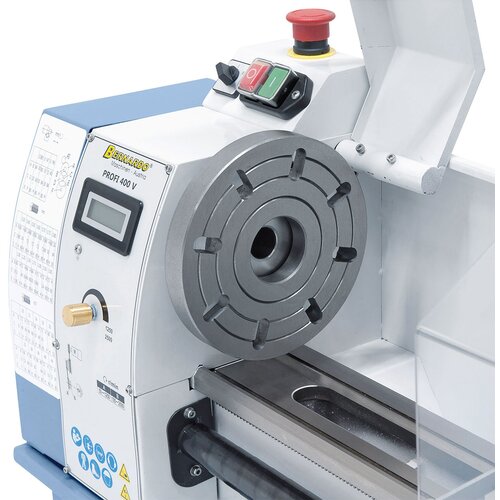

Face plate (170 mm) to clamp irregular shaped workpieces available at request
Face plate (170 mm) to clamp irregular shaped workpieces available at request

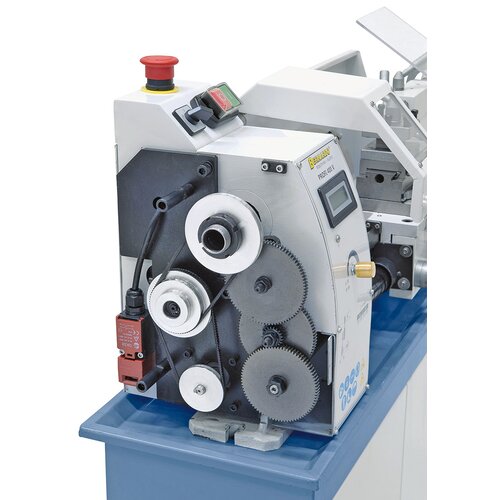

Complete with change gears for thread cutting
Complete with change gears for thread cutting
To reduce downtime significantly, the machine can be equipped with a quick change set model BERNARDO size 10
Face plate (170 mm) to clamp irregular shaped workpieces available at request
Complete with change gears for thread cutting

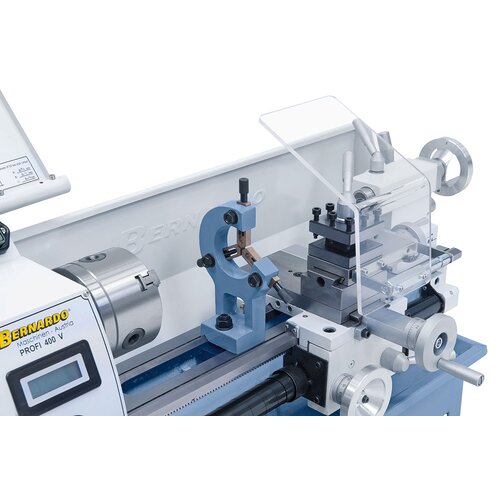

Bench lathe Profi 400 V / 230 V

Art.Nr.: 03-1036
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Profi 400 V table lathe comes complete with a stepless speed adjustment and digital display for convenient readout. The attractive price-to-performance ratio makes this model ideal for model makers and amateurs.



€1,536.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Highly suitable for processing steel, non-ferrous materials or plastics
  • Wide range of applications, such as face turning, straight turning, thread cutting etc.
  • Change gears for metric thread cutting come standard
  • High-quality ball bearing ensure concentricity of spindle nose (better than 0,015 mm)
  • User-friendly arrangement of controls
  • Complete with leadscrew for thread cutting and zhe automatic longitudinal feed
  • Compact construction, ideal price-to-performance ratio
  • Electronic, stepless speed setting allow ideal adjustment to each workpieces

Product Specifications

Distance between centers

400 mm

Center height

100 mm

Swing over bed

200 mm

Spindle bore

20 mm

Taper of spindle bore

MT 3

Speed range, stepless

50 - 1250 / 100 - 2500 rpm

Longitudinal feed

(3) 0,089 - 0,198 mm/rev

Metric thread

(14) 0,3 - 3 mm

Inch thread

(10) 10 - 44 threads/1“

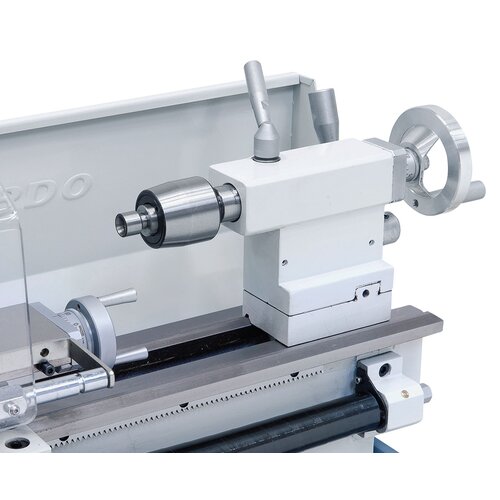

Travel of tailstock sleeve

50 mm

Taper of tailstock sleeve

MT 2

Motor power output S1 100%

0,60 kW / 230 V

Motor power input S6 40%

0,80 kW / 230 V

Machine dimension (W x D x H)*

930 x 400 x 380 mm

Weight approx.

65 kg




* without stand

Delivery Contents

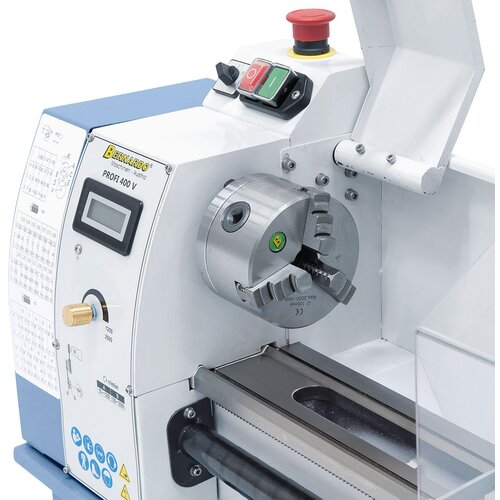

  • 3-jaw chuck DK 11-100 mm

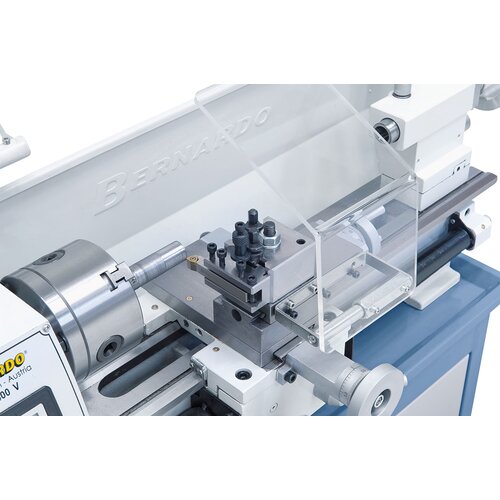

  • 4-way tool post holder
  • Dead center
  • Change gears
  • Chuck guard
  • Splash guard
  • Chip tray

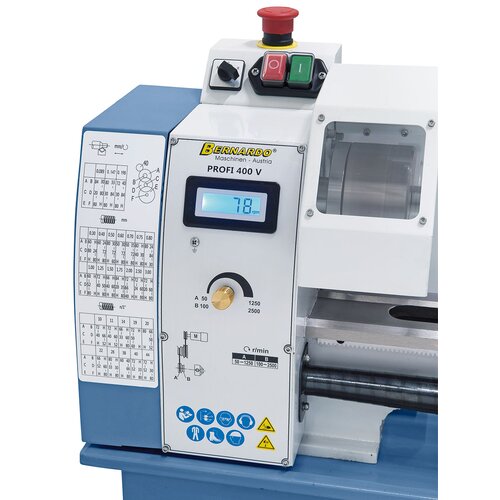

  • Digital speed indication
  • Tools

Suitable accessories

Medium duty live center with 7 interchangable tips SMA - MT 2
Medium duty live center with 7 interchangable tips SMA - MT 2
Art.Nr. : 22-1040

€163.20

incl. 20% VAT
Soft solid jaws DSJ-DK12-100
Soft solid jaws DSJ-DK12-100
Art.Nr. : 21-0864

€80.40

incl. 20% VAT
Face plate 170 mm f. Profi 400 V
Face plate 170 mm f. Profi 400 V
Art.Nr. : 03-1577

€61.20

incl. 20% VAT
Flange diam. 100 mm f. Profi 400 V
Flange diam. 100 mm f. Profi 400 V
Art.Nr. : 03-1576

€57.60

incl. 20% VAT
Steady rest f. Profi 400 V
Steady rest f. Profi 400 V
Art.Nr. : 03-1578

€61.20

incl. 20% VAT
Follow rest f. Profi 400 V
Follow rest f. Profi 400 V
Art.Nr. : 03-1579

€54.00

incl. 20% VAT

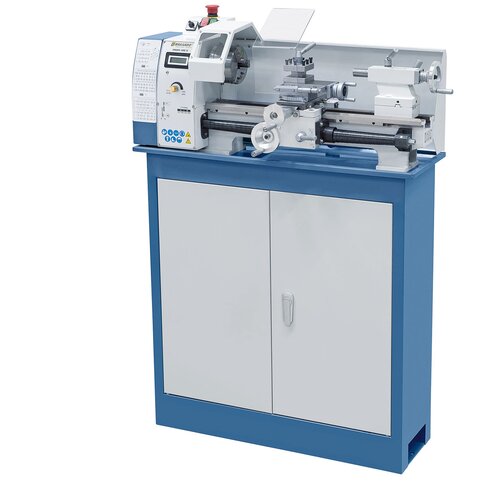

Stand f. Profi 400 V / 400 G
Stand f. Profi 400 V / 400 G
Art.Nr. : 56-1068

€397.20

incl. 20% VAT
Costs of assembly for quick change set **
Costs of assembly for quick change set **
Art.Nr. : 23-1092

€138.00

incl. 20% VAT
5 pcs. indexable carbide turning tool set, 10 mm
5 pcs. indexable carbide turning tool set, 10 mm
Art.Nr. : 44-2013

€79.20

incl. 20% VAT
Soft solid jaws DSJ-DK11-100
Soft solid jaws DSJ-DK11-100
Art.Nr. : 21-0851

€57.60

incl. 20% VAT
HSS-Carbide tipped tool set, 10 mm, 8 pcs.
HSS-Carbide tipped tool set, 10 mm, 8 pcs.
Art.Nr. : 44-1024

€96.00

incl. 20% VAT
Bernardo Standard-4-jaw chuck DK12, DIN 6350, DK12-100, cast irom
Bernardo Standard-4-jaw chuck DK12, DIN 6350, DK12-100, cast irom
Art.Nr. : 21-0801

€219.60

incl. 20% VAT

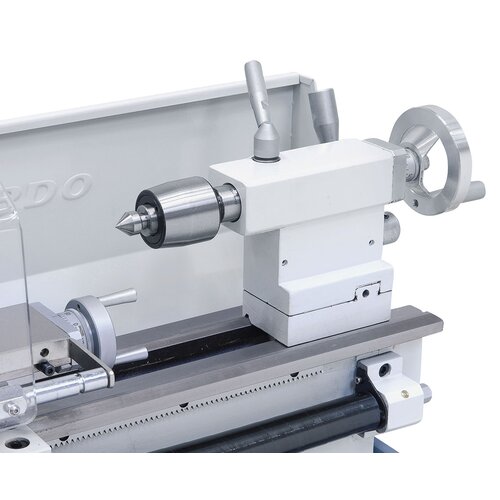

Ball nose live center MT 2 / 60 mm
Ball nose live center MT 2 / 60 mm
Art.Nr. : 22-1050

€112.80

incl. 20% VAT

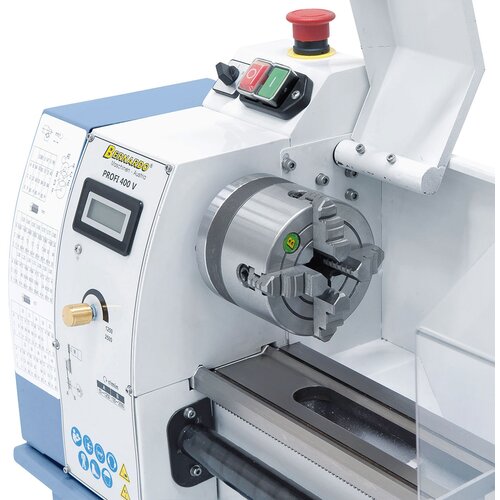

Bernardo 4-jaw independent chuck K72 according DIN 6350, K72 - 100
Bernardo 4-jaw independent chuck K72 according DIN 6350, K72 - 100
Art.Nr. : 21-5001

€134.40

incl. 20% VAT
Quick change set model Bernardo size 10, incl. 4 tips
Quick change set model Bernardo size 10, incl. 4 tips
Art.Nr. : 23-1055B

€202.80

incl. 20% VAT
Turning and facing holder size 10
Turning and facing holder size 10
Art.Nr. : 23-1058B

€31.20

incl. 20% VAT
Economy live center Typ PC - MT 2
Economy live center Typ PC - MT 2
Art.Nr. : 22-1001

€81.60

incl. 20% VAT
40 pos. tool post & holder set System Multifix size A, incl. 4 tips
40 pos. tool post & holder set System Multifix size A, incl. 4 tips
Art.Nr. : 23-1000

€534.00

incl. 20% VAT
6 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
6 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
Art.Nr. : 44-2051

€192.00

incl. 20% VAT
4 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
4 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
Art.Nr. : 44-2030

€138.00

incl. 20% VAT
7 pcs. multipurpose indexable carbide turning tool set, Tin-coated, 10 mm, set M
7 pcs. multipurpose indexable carbide turning tool set, Tin-coated, 10 mm, set M
Art.Nr. : 44-3076

€156.00

incl. 20% VAT
