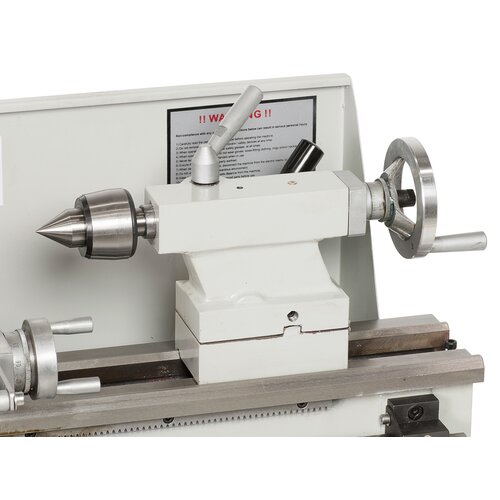

Tailstock featuring single lever clamping can be adjusted for taper turning. Live center available on request.
Tailstock featuring single lever clamping can be adjusted for taper turning. Live center available on request.
Hardened main spindle, precision taper roll bearings allow for high concentricity of spindle nose (≤ 0.009 mm).
Hardened main spindle, precision taper roll bearings allow for high concentricity of spindle nose (≤ 0.009 mm).

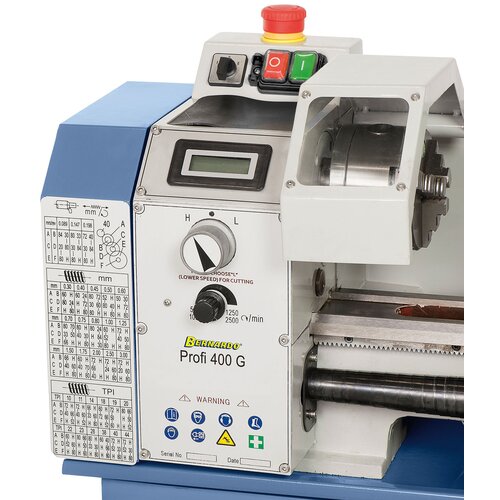

Convenient pre-selection of gears via reduction gearing, potentiometer allows for speed adjustment.
Convenient pre-selection of gears via reduction gearing, potentiometer allows for speed adjustment.
Tailstock featuring single lever clamping can be adjusted for taper turning. Live center available on request.
Hardened main spindle, precision taper roll bearings allow for high concentricity of spindle nose (≤ 0.009 mm).
Convenient pre-selection of gears via reduction gearing, potentiometer allows for speed adjustment.

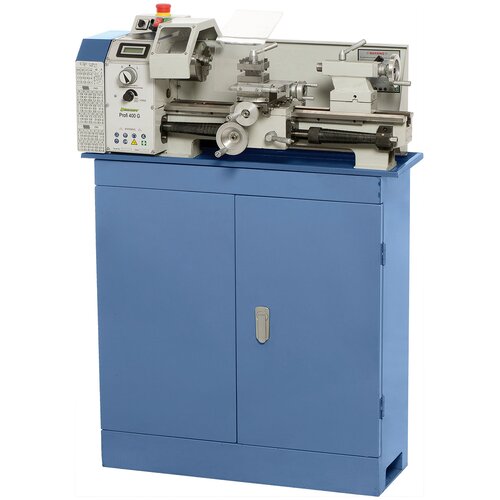

Bench lathe Profi 400 G / 230 V

Art.Nr.: 03-1037
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

In contrast to the Profi 400 V the Profi 400 G bench lathe features a reduction gearing, allowing speed setting without having to change pulleys. The digital display allows for convenient and quick readout of set speed.



€1,656.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Comes complete with 2 gear settings and electronic stepless speed adjustment
  • Strongly reinforced machine bed featuring induction-hardened, polished guide
  • Ideal for processing of steel, non-ferrous metals and plastics
  • Universal in use: longitudinal turning, facing, profiling, thread cutting etc.

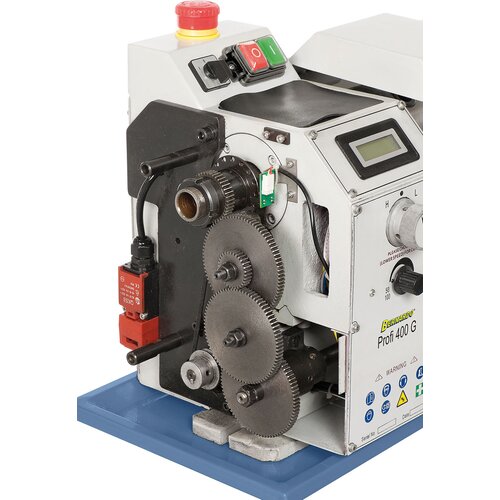

  • Change gears for cutting of metric threads are part of the standard accessories
  • Main spindle features adjustable tapered roller bearings in P5 quality
  • User-friendly arrangement of control elements on gear head
  • Tailstock features single-lever clamping, adjustable for taper turning
  • V-ledges allow for adjustment of bed way guides

Product Specifications

Distance between centers

400 mm

Center height

105 mm

Swing over bed

210 mm

Spindle bore

21 mm

Taper of spindle bore

MT 3

Speed range, stepless

50 - 1250 / 100 - 2500 rpm

Longitudinal feed

(3) 0,089 - 0,198 mm/rev

Metric thread

(15) 0,3 - 3 mm

Inch thread

(12) 10 - 44 threads/1“

Travel of tailstock sleeve

55 mm

Taper of tailstock sleeve

MT 2

Motor power output S1 100%

0,60 kW / 230 V

Motor power input S6 40%

0,80 kW / 230 V

Machine dimension (W x D x H)*

930 x 400 x 380 mm

Weight approx.

60 kg




* without stand

Delivery Contents

  • 3-jaw chuck DK 11-100 mm
  • 4-way tool post holder
  • Dead centers
  • Change gears
  • Chuck guard
  • Splash guard
  • Chip tray
  • Digital speed indication
  • Tools

Suitable accessories

Medium duty live center with 7 interchangable tips SMA - MT 2
Medium duty live center with 7 interchangable tips SMA - MT 2
Art.Nr. : 22-1040

€163.20

incl. 20% VAT
Soft solid jaws DSJ-DK11-100
Soft solid jaws DSJ-DK11-100
Art.Nr. : 21-0851

€57.60

incl. 20% VAT
Soft solid jaws DSJ-DK12-100
Soft solid jaws DSJ-DK12-100
Art.Nr. : 21-0864

€80.40

incl. 20% VAT

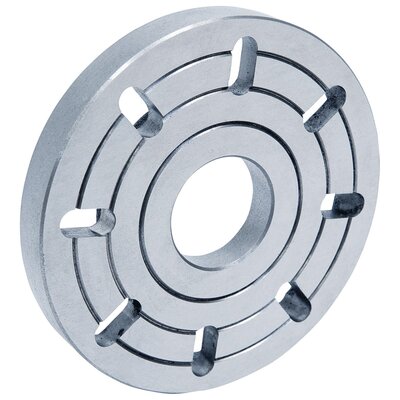

Face plate 170 mm f. Profi 400 V
Face plate 170 mm f. Profi 400 V
Art.Nr. : 03-1577

€61.20

incl. 20% VAT

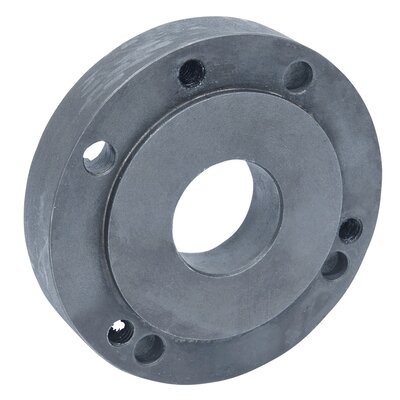

Flange diam. 100 mm f. Profi 400 V
Flange diam. 100 mm f. Profi 400 V
Art.Nr. : 03-1576

€57.60

incl. 20% VAT

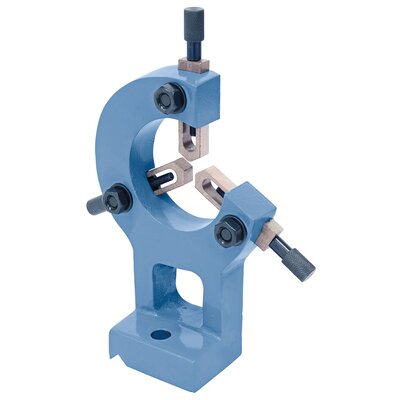

Steady rest f. Profi 400 V
Steady rest f. Profi 400 V
Art.Nr. : 03-1578

€61.20

incl. 20% VAT

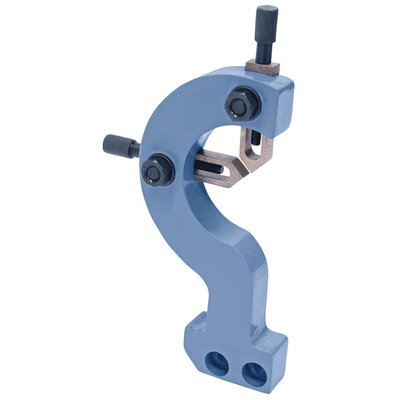

Follow rest f. Profi 400 V
Follow rest f. Profi 400 V
Art.Nr. : 03-1579

€54.00

incl. 20% VAT
Stand f. Profi 400 V / 400 G
Stand f. Profi 400 V / 400 G
Art.Nr. : 56-1068

€397.20

incl. 20% VAT
Collet chuck ER 25 - D 72
Collet chuck ER 25 - D 72
Art.Nr. : 22-1082

€102.00

incl. 20% VAT
Costs of assembly for quick change set **
Costs of assembly for quick change set **
Art.Nr. : 23-1092

€138.00

incl. 20% VAT

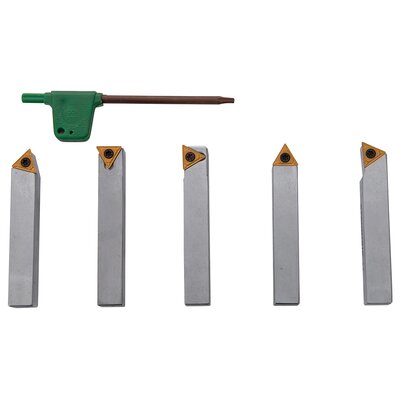

5 pcs. indexable carbide turning tool set, 10 mm
5 pcs. indexable carbide turning tool set, 10 mm
Art.Nr. : 44-2013

€79.20

incl. 20% VAT
HSS-Carbide tipped tool set, 10 mm, 8 pcs.
HSS-Carbide tipped tool set, 10 mm, 8 pcs.
Art.Nr. : 44-1024

€96.00

incl. 20% VAT
Collet set ER 25, 2 - 16 mm, 15 pcs.
Collet set ER 25, 2 - 16 mm, 15 pcs.
Art.Nr. : 26-1022

€168.00

incl. 20% VAT
Ball nose live center MT 2 / 60 mm
Ball nose live center MT 2 / 60 mm
Art.Nr. : 22-1050

€112.80

incl. 20% VAT
4 station revolving tailstock turret MT 2, incl. inserts
4 station revolving tailstock turret MT 2, incl. inserts
Art.Nr. : 22-1069
4 station revolving tailstock turret MT 2, incl. tips

€186.00

incl. 20% VAT
Bernardo 4-jaw independent chuck K72 according DIN 6350, K72 - 100
Bernardo 4-jaw independent chuck K72 according DIN 6350, K72 - 100
Art.Nr. : 21-5001

€134.40

incl. 20% VAT
Quick change set model Bernardo size 10, incl. 4 tips
Quick change set model Bernardo size 10, incl. 4 tips
Art.Nr. : 23-1055B

€202.80

incl. 20% VAT
Turning and facing holder size 10
Turning and facing holder size 10
Art.Nr. : 23-1058B

€31.20

incl. 20% VAT
Economy live center Typ PC - MT 2
Economy live center Typ PC - MT 2
Art.Nr. : 22-1001

€81.60

incl. 20% VAT
Carbide tipped tool set 10 mm, 38 pcs.
Carbide tipped tool set 10 mm, 38 pcs.
Art.Nr. : 44-1015

€84.00

incl. 20% VAT
6 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
6 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
Art.Nr. : 44-2051

€192.00

incl. 20% VAT
4 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
4 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
Art.Nr. : 44-2030

€138.00

incl. 20% VAT
Bernardo Standard-4-jaw chuck DK12, DIN 6350, DK12-100, cast irom
Bernardo Standard-4-jaw chuck DK12, DIN 6350, DK12-100, cast irom
Art.Nr. : 21-0801

€219.60

incl. 20% VAT

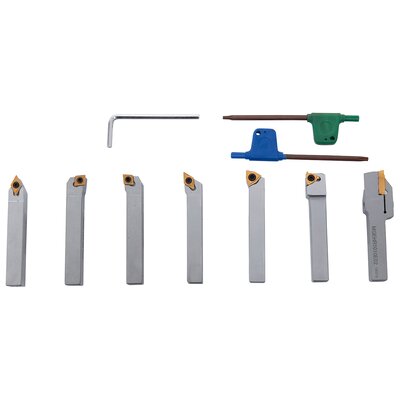

7 pcs. multipurpose indexable carbide turning tool set, Tin-coated, 10 mm, set M
