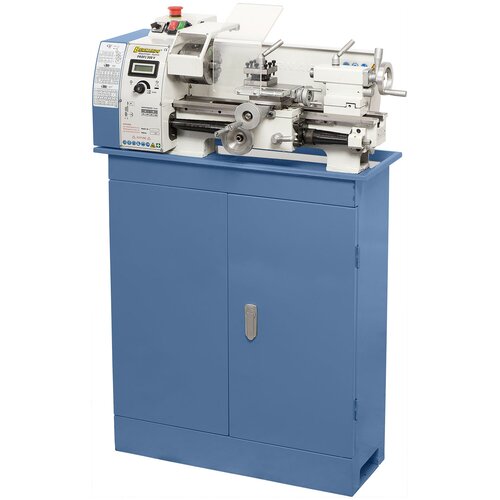

Picture with optional stand
Picture with optional stand

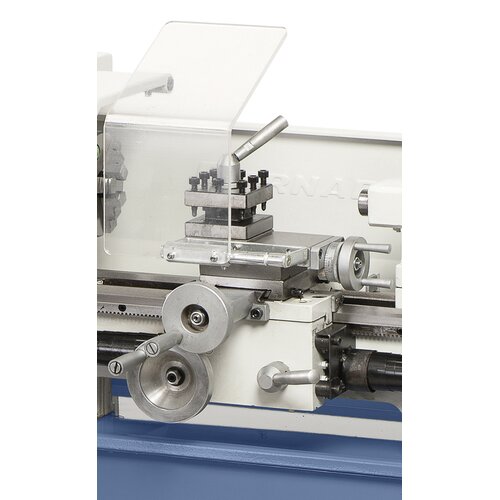

Precise and smoothly-running apron with top support, long life span due to adjustable gibs.
Precise and smoothly-running apron with top support, long life span due to adjustable gibs.

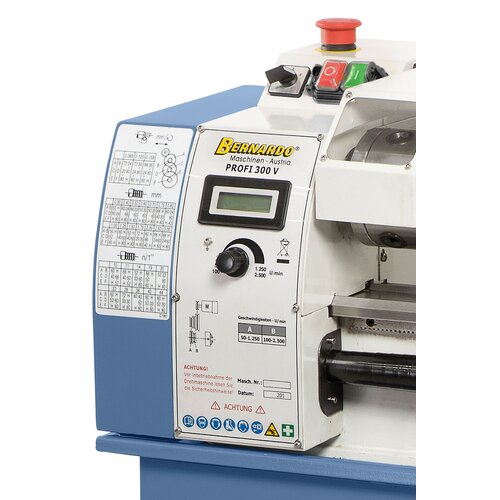

All control elements as well as all tables are clearly arranged on the spindle head.
All control elements as well as all tables are clearly arranged on the spindle head.

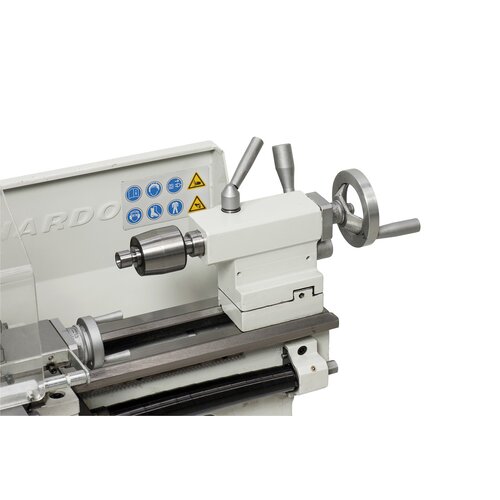

A live center type SMA with 7 interchangeable tips for universal applications is optionally available.
A live center type SMA with 7 interchangeable tips for universal applications is optionally available.

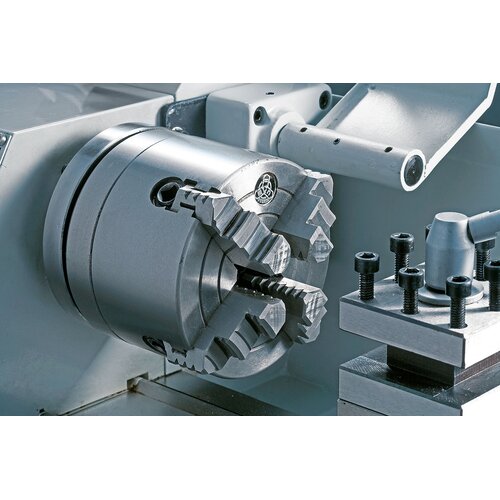

Independent chuck 100 mm ideal for clamping of asymmetric workpieces.(optional)
Independent chuck 100 mm ideal for clamping of asymmetric workpieces.(optional)

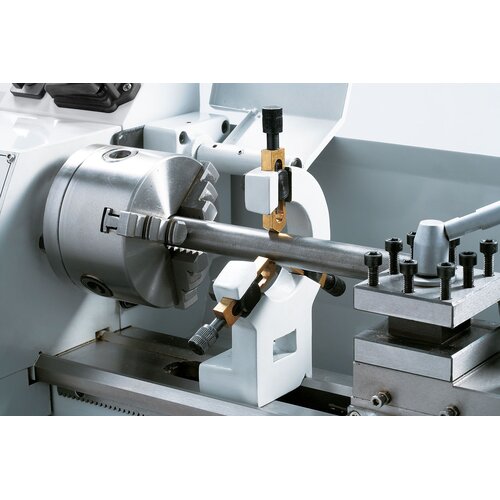

Steady rest with bronze guides to stabilize long workpieces.
Steady rest with bronze guides to stabilize long workpieces.
Picture with optional stand
Precise and smoothly-running apron with top support, long life span due to adjustable gibs.
All control elements as well as all tables are clearly arranged on the spindle head.
A live center type SMA with 7 interchangeable tips for universal applications is optionally available.
Independent chuck 100 mm ideal for clamping of asymmetric workpieces.(optional)
Steady rest with bronze guides to stabilize long workpieces.

Bench lathe Profi 300 V / 230 V

Art.Nr.: 03-1035
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

This is our top model in the turning area with a large 300 mm distance between the centres. The stepless speed adjustment makes this machine very popular for precision mechanics as well as model-makers.



€1,368.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Stepless speed adjustment
  • Control elements are clearly arranged and accessible
  • Machine bed inductive hardened and polished
  • High-quality ball bearings ensure high spindle concentricity (≤ 0,015)
  • 3 freely adjustable longitudinal feeds
  • Adjustable tailstock for taper turning
  • Guideways adjustable via gibs
  • Serially equipped with change gears for thread cutting

Product Specifications

Distance between centers

300 mm

Center height

90 mm

Swing over bed

180 mm

Spindle bore

20 mm

Taper at spindle bore

MT 3

Speed range, stepless

50 - 1250 / 100 - 2500 rpm

Longitudinal feed

(3) 0,083 - 0,159 mm/rev.

Metric thread

(14) 0,3 - 3 mm

Inch thread

(10) 10 - 44 threads/1“

Travel of tailstock sleeve

60 mm

Taper of tailstock sleeve

MT 2

Motor power output S1 100%

0,50 kW / 230 V

Motor power input S6 40%

0,70 kW / 230 V

Machine dimension (W x D x H)*

740 x 390 x 370 mm

Weight approx.

60 kg




* without stand

Delivery Contents

  • 3-jaw chuck DK11-100 mm
  • 4-way tool post holder
  • 2 dead center
  • Change gear
  • Chuck guard
  • Splash guard
  • Chip tray
  • Digital speed indication
  • Tools

Suitable accessories

Medium duty live center with 7 interchangable tips SMA - MT 2
Medium duty live center with 7 interchangable tips SMA - MT 2
Art.Nr. : 22-1040

€163.20

incl. 20% VAT
Bernardo Standard-4-jaw chuck DK12, DIN 6350, DK12-100, cast irom
Bernardo Standard-4-jaw chuck DK12, DIN 6350, DK12-100, cast irom
Art.Nr. : 21-0801

€219.60

incl. 20% VAT
HSS-Carbide tipped tool set, 10 mm, 8 pcs.
HSS-Carbide tipped tool set, 10 mm, 8 pcs.
Art.Nr. : 44-1024

€96.00

incl. 20% VAT
Soft solid jaws DSJ-DK11-100
Soft solid jaws DSJ-DK11-100
Art.Nr. : 21-0851

€57.60

incl. 20% VAT
Soft solid jaws DSJ-DK12-100
Soft solid jaws DSJ-DK12-100
Art.Nr. : 21-0864

€80.40

incl. 20% VAT

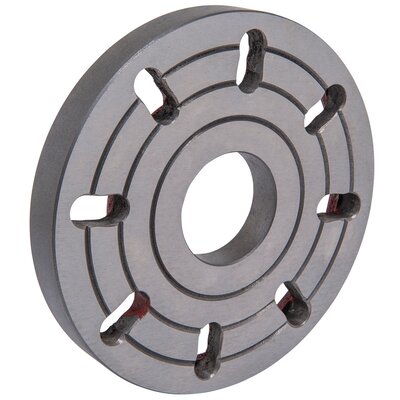

Face plate 170 mm f. Profi 300 V
Face plate 170 mm f. Profi 300 V
Art.Nr. : 03-1565

€61.20

incl. 20% VAT

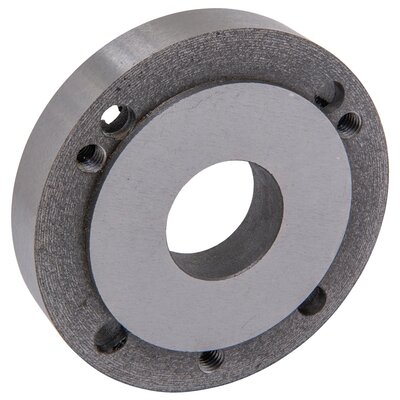

Flange diam. 100 mm f. Profi 300 V
Flange diam. 100 mm f. Profi 300 V
Art.Nr. : 03-1560

€57.60

incl. 20% VAT
Costs of assembly for quick change set **
Costs of assembly for quick change set **
Art.Nr. : 23-1092

€138.00

incl. 20% VAT
5 pcs. indexable carbide turning tool set, 10 mm
5 pcs. indexable carbide turning tool set, 10 mm
Art.Nr. : 44-2013

€79.20

incl. 20% VAT
7 pcs. multipurpose indexable carbide turning tool set, Tin-coated, 10 mm, set M
7 pcs. multipurpose indexable carbide turning tool set, Tin-coated, 10 mm, set M
Art.Nr. : 44-3076

€156.00

incl. 20% VAT
4 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
4 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
Art.Nr. : 44-2030

€138.00

incl. 20% VAT
6 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
6 pcs. turning tools set incl. 1 pc. boring bar, 10 mm
Art.Nr. : 44-2051

€192.00

incl. 20% VAT
Ball nose live center MT 2 / 60 mm
Ball nose live center MT 2 / 60 mm
Art.Nr. : 22-1050

€112.80

incl. 20% VAT
Steady rest f. Profi 300 V
Steady rest f. Profi 300 V
Art.Nr. : 03-1570
Feststehende Lünette mit Bronzeführung zum...

€61.20

incl. 20% VAT
Follow rest f. Profi 300 V
Follow rest f. Profi 300 V
Art.Nr. : 03-1575
Die mitlaufende Lünette verhindert das Durchbiegen...

€57.60

incl. 20% VAT
Stand D1
Stand D1
Art.Nr. : 56-1050

€308.40

incl. 20% VAT
Bernardo 4-jaw independent chuck K72 according DIN 6350, K72 - 100
Bernardo 4-jaw independent chuck K72 according DIN 6350, K72 - 100
Art.Nr. : 21-5001

€134.40

incl. 20% VAT
Quick change set model Bernardo size 10, incl. 4 tips
Quick change set model Bernardo size 10, incl. 4 tips
Art.Nr. : 23-1055B

€202.80

incl. 20% VAT
Turning and facing holder size 10
Turning and facing holder size 10
Art.Nr. : 23-1058B

€31.20

incl. 20% VAT
Economy live center Typ PC - MT 2
Economy live center Typ PC - MT 2
Art.Nr. : 22-1001

€81.60

incl. 20% VAT
40 pos. tool post & holder set System Multifix size A, incl. 4 tips
40 pos. tool post & holder set System Multifix size A, incl. 4 tips
Art.Nr. : 23-1000

€534.00

incl. 20% VAT
Stand D1 Deluxe
Stand D1 Deluxe
Art.Nr. : 56-10500

€384.00

incl. 20% VAT
