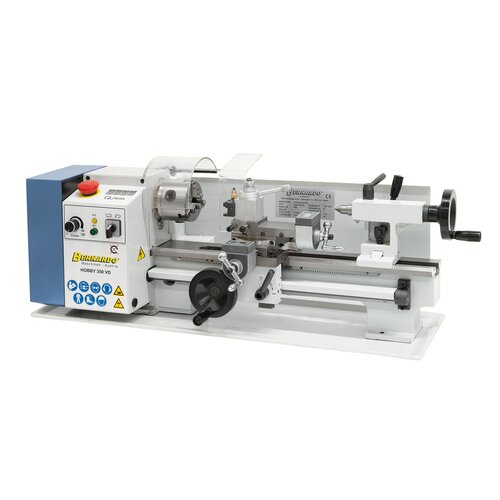

Bench lathe Hobby 350 VD
Art.Nr.: 03-1026BThe Hobby 350 VD bench lathe - compared to the Hobby 300 VD - features a 50 mm greater distance between centres, a convenient digital speed display and a slightly more powerful motor. The attractive price-benefit ratio makes this model ideal for model-makers and amateurs.
€1,164.00
incl. 20% VATAvailability
Product Properties
- Spindle concentricity guaranteed ≤ 0,015 mm
- Digital readout for cross slide and top support come standard
- Optimal speed readout on digital display
- Ideal for working with steel, non-ferrous metals and plastics
- Various applications: thread cutting, longitudinal, face and internal turning etc.
- Powerful DC-Motor with 350 W drive power
- Change gears for thread cutting come standard
- Guides are adjustable via gibs

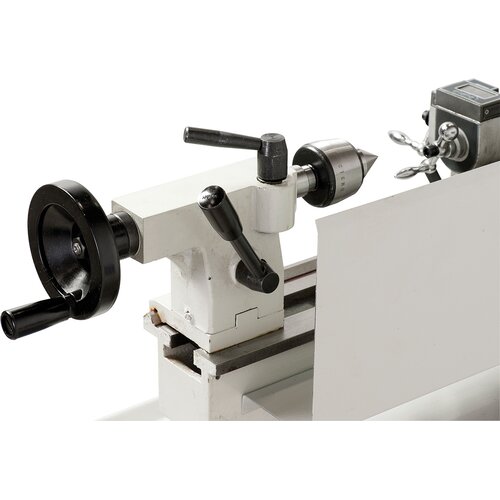

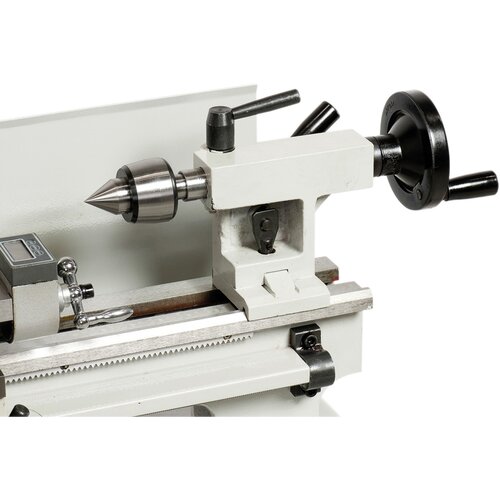

- Tailstock can be adjusted for taper turning
Product Specifications
|
Distance between centers |
350 mm |
|
Center height |
90 mm |
|
Swing over bed |
180 mm |
|
Swing over cross slide |
110 mm |
|
Spindle bore |
21 mm |
|
Taper at spindle bore |
MT 3 |
|
Speed range, stepless |
100 - 1200 / 100 - 3000 rpm |
|
Longitudinal feed |
0,1 / 0,2 mm/rev. |
|
Metric thread |
(10) 0,4 - 2,0 mm |
|
Travel of tailstock sleeve |
60 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,35 kW / 230 V |
|
Motor power input S6 40% |
0,50 kW / 230 V |
|
Machine dimensions (W x D x H)* |
770 x 300 x 310 mm |
|
Weight approx. |
44 kg |
* without stand
Delivery Contents
- 3-jaw chuck 80 mm
- Chuck guard

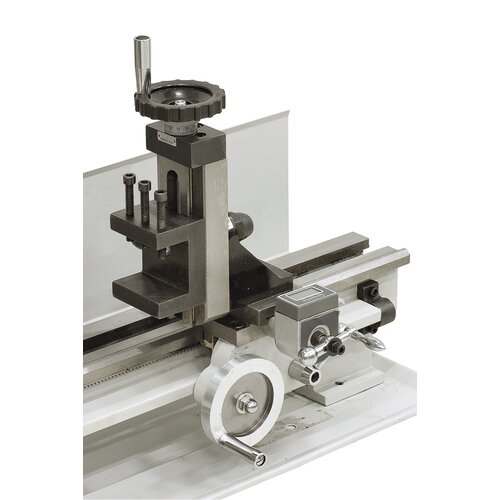

- Quick change tool holder size 5-4 with 4 inserts

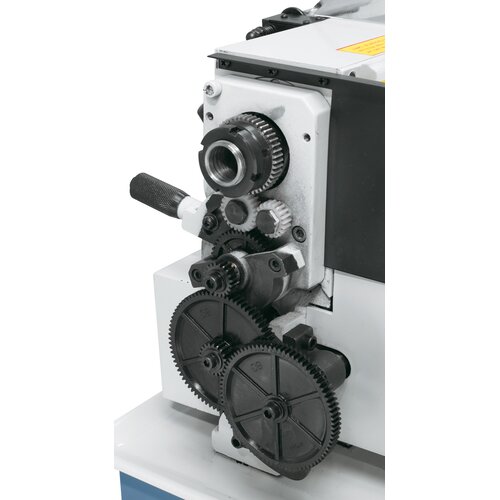

- Change gears
- Splash guard

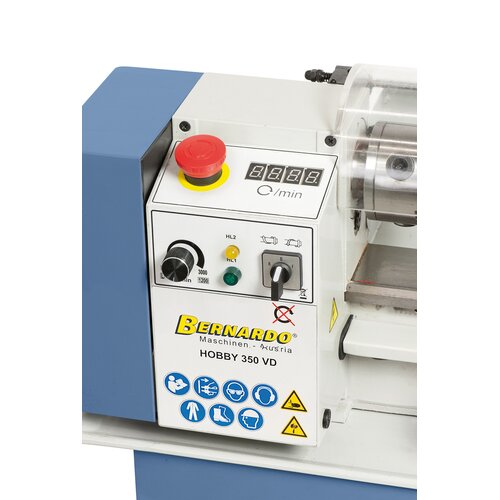

- Digital speed display

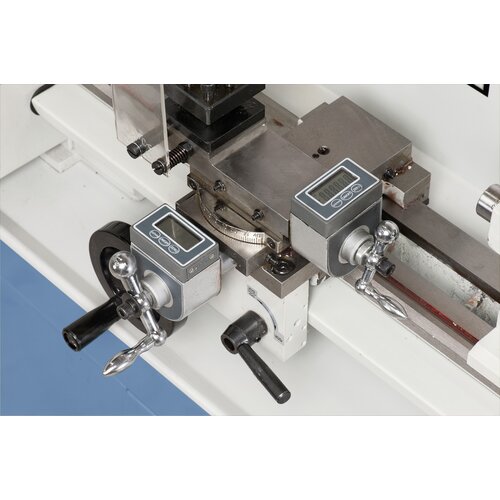

- Digital display for cross slide and top support
- Dead centre
- Tools

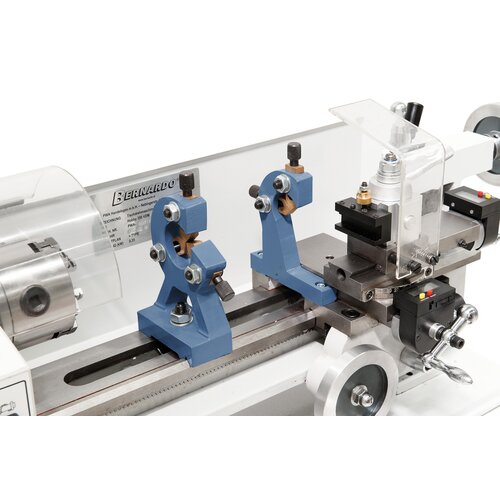

Suitable accessories
