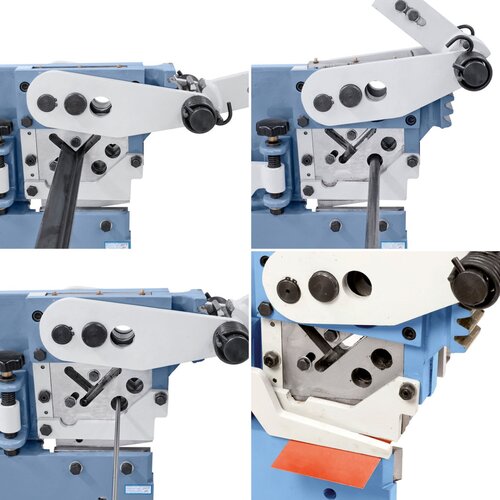

Example of use
Example of use

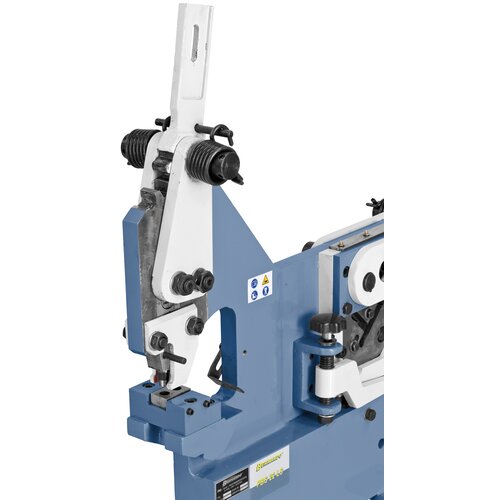

Standard with punching unit for holes up to 20 mm
Standard with punching unit for holes up to 20 mm
Example of use
Standard with punching unit for holes up to 20 mm

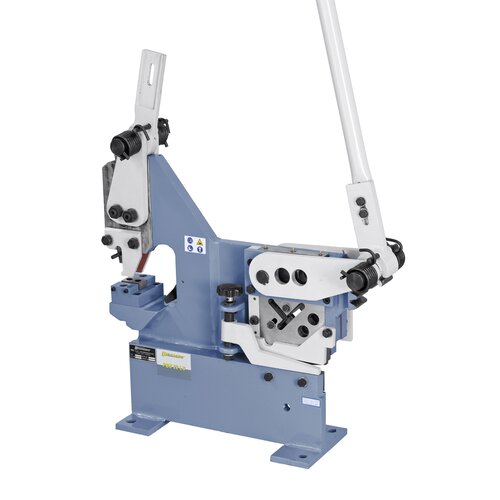

Bar and section shear PBS 22 LS

Art.Nr.: 06-1596
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

€1,033.20

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • For shearing of sheet metal, flat, round and square steel, L- und T-Profilen
  • Ideal universal scissors for craft and repair operations, but also suitable for schools and training workshops
  • Ergonomically favorable machine body made of sturdy steel plates, incl. bores for stationary attachment
  • Height adjustable downholder prevents twisting of the sheet during cutting
  • Good view of the entire knife length, thus ensuring perfect work
  • Knife made of tool steel, hardened and ground
  • Power-saving cutting due to the favorable cutting geometry

Product Specifications

Cutting length max. 150 mm
Sheet steel max.* 8,0 mm
Round material 20 mm
Square steel 20 x 20 mm
Flat steel 90 x 14 mm
L-steel 60 x 7 mm
T-steel 60 x 7 mm
Knife length 175 mm
Punching unit
Throat 150 mm
Hole diameter min./max. 3 / 20 mm
Material thickness max. 8 mm
Machine dimension (W x D x H) 270 x 810 x 1995** mm
Weight approx. 100 kg
* Material strength 400 N/mm², not over the entire length
** incl. lever

Delivery Contents

  • Round stamp with die Ø 16 mm

Suitable accessories

Set of knives for PBS 22 / LS
Set of knives for PBS 22 / LS
Art.Nr. : 06-6140

€264.00

incl. 20% VAT

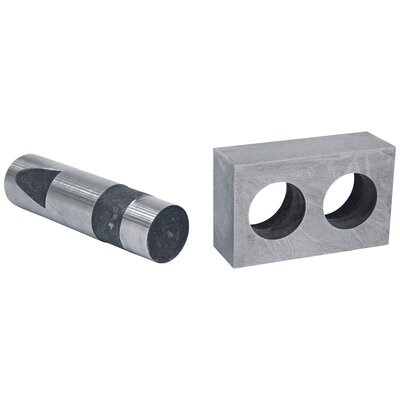

Punching unit diam. 19 mm f. PBS 22 LS
Punching unit diam. 19 mm f. PBS 22 LS
Art.Nr. : 06-6141Q

€46.80

incl. 20% VAT

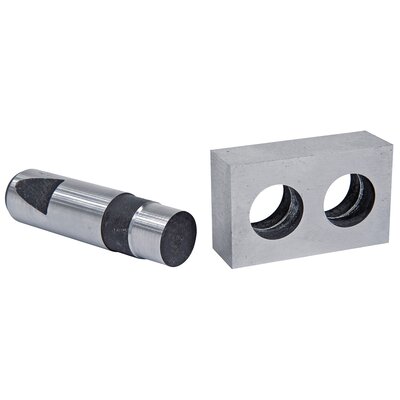

Punching unit diam. 18 mm f. PBS 22 LS
Punching unit diam. 18 mm f. PBS 22 LS
Art.Nr. : 06-6141P

€46.80

incl. 20% VAT

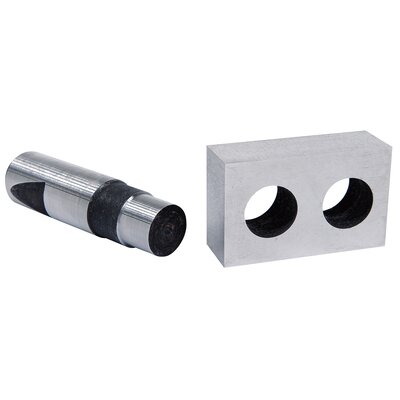

Punching unit diam. 17 mm f. PBS 22 LS
Punching unit diam. 17 mm f. PBS 22 LS
Art.Nr. : 06-6141O

€46.80

incl. 20% VAT

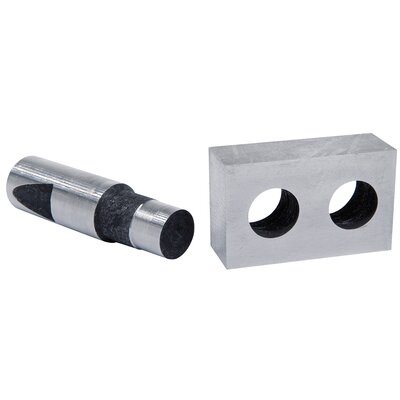

Punching unit diam. 16 mm f. PBS 22 LS
Punching unit diam. 16 mm f. PBS 22 LS
Art.Nr. : 06-6141N

€46.80

incl. 20% VAT
Punching unit diam. 15 mm f. PBS 22 LS
Punching unit diam. 15 mm f. PBS 22 LS
Art.Nr. : 06-6141M

€46.80

incl. 20% VAT
Punching unit diam. 14 mm f. PBS 22 LS
Punching unit diam. 14 mm f. PBS 22 LS
Art.Nr. : 06-6141L

€46.80

incl. 20% VAT
Punching unit diam. 13 mm f. PBS 22 LS
Punching unit diam. 13 mm f. PBS 22 LS
Art.Nr. : 06-6141K

€46.80

incl. 20% VAT
Punching unit diam. 12 mm f. PBS 22 LS
Punching unit diam. 12 mm f. PBS 22 LS
Art.Nr. : 06-6141J

€46.80

incl. 20% VAT
Punching unit diam. 11 mm f. PBS 22 LS
Punching unit diam. 11 mm f. PBS 22 LS
Art.Nr. : 06-6141I

€46.80

incl. 20% VAT
Punching unit diam. 10 mm f. PBS 22 LS
Punching unit diam. 10 mm f. PBS 22 LS
Art.Nr. : 06-6141H

€46.80

incl. 20% VAT
Punching unit diam. 9 mm f. PBS 22 LS
Punching unit diam. 9 mm f. PBS 22 LS
Art.Nr. : 06-6141G

€44.40

incl. 20% VAT
Punching unit diam. 8 mm f. PBS 22 LS
Punching unit diam. 8 mm f. PBS 22 LS
Art.Nr. : 06-6141F

€44.40

incl. 20% VAT
Punching unit diam. 7 mm f. PBS 22 LS
Punching unit diam. 7 mm f. PBS 22 LS
Art.Nr. : 06-6141E

€44.40

incl. 20% VAT
Punching unit diam. 6 mm f. PBS 22 LS
Punching unit diam. 6 mm f. PBS 22 LS
Art.Nr. : 06-6141D

€44.40

incl. 20% VAT
Punching unit diam. 5 mm f. PBS 22 LS
Punching unit diam. 5 mm f. PBS 22 LS
Art.Nr. : 06-6141C

€44.40

incl. 20% VAT
Punching unit diam. 4 mm f. PBS 22 LS
Punching unit diam. 4 mm f. PBS 22 LS
Art.Nr. : 06-6141B

€44.40

incl. 20% VAT
Punching unit diam. 3 mm f. PBS 22 LS
Punching unit diam. 3 mm f. PBS 22 LS
Art.Nr. : 06-6141A

€44.40

incl. 20% VAT

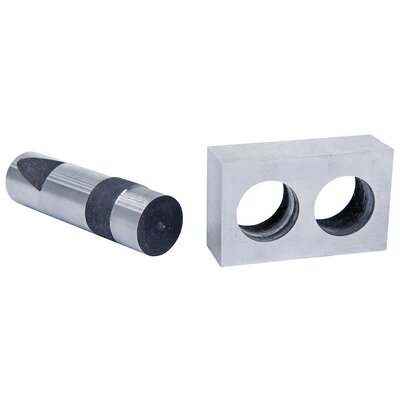

Punching unit diam. 20 mm f. PBS 22 LS
Punching unit diam. 20 mm f. PBS 22 LS
Art.Nr. : 06-6141R
Punching unit diam. 20 mm f. PBS 22 LS

€46.80

incl. 20% VAT
