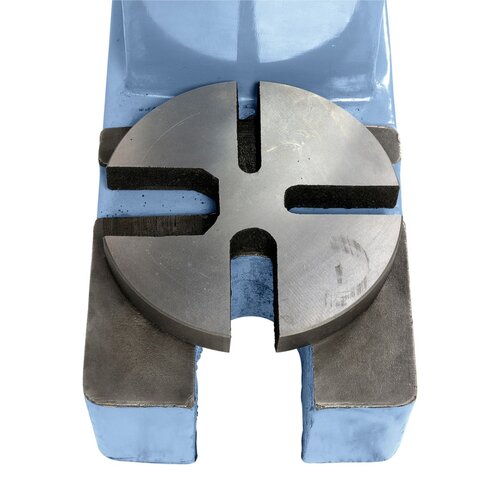

4-positionable base plate

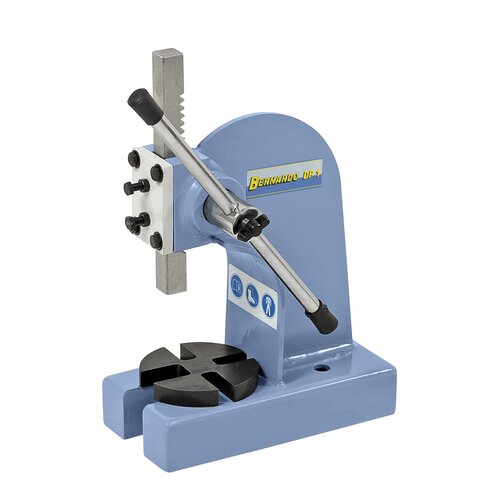

Arbor press DP 1
Art.Nr.: 06-1000€138.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- For pressing in and out of bearings, bushes, ...
- Basic body designed in torsion-free steel construction
- Including mounting holes, ideal for mounting on a workbench
- Suitable for bushing, straightening, bending, broaching, ...
- Variable adjustable lever handle, depending on the required effort
- Ideal for repair shops and the general workshop area
Product Specifications
| Workpiece height max. | 135 mm |
| Distance spindle to column | 95 mm |
| Arbor dimensions | 24 x 24 x 240 mm |
| Turntable Ø | 115 mm |
| Turntable openings | 3 x 17 mm / 1 x 28 mm |
| Hand force (F1) | 60 kg / 588 N |
| Lever handle (H) | 350 mm |
| Force effect (F2) | 1140 kg / 11183 N |
| Machine dimension (W x D x H)* | 190 x 270 x 330 mm |
| Weight approx. | 11 kg |
* only machine body
