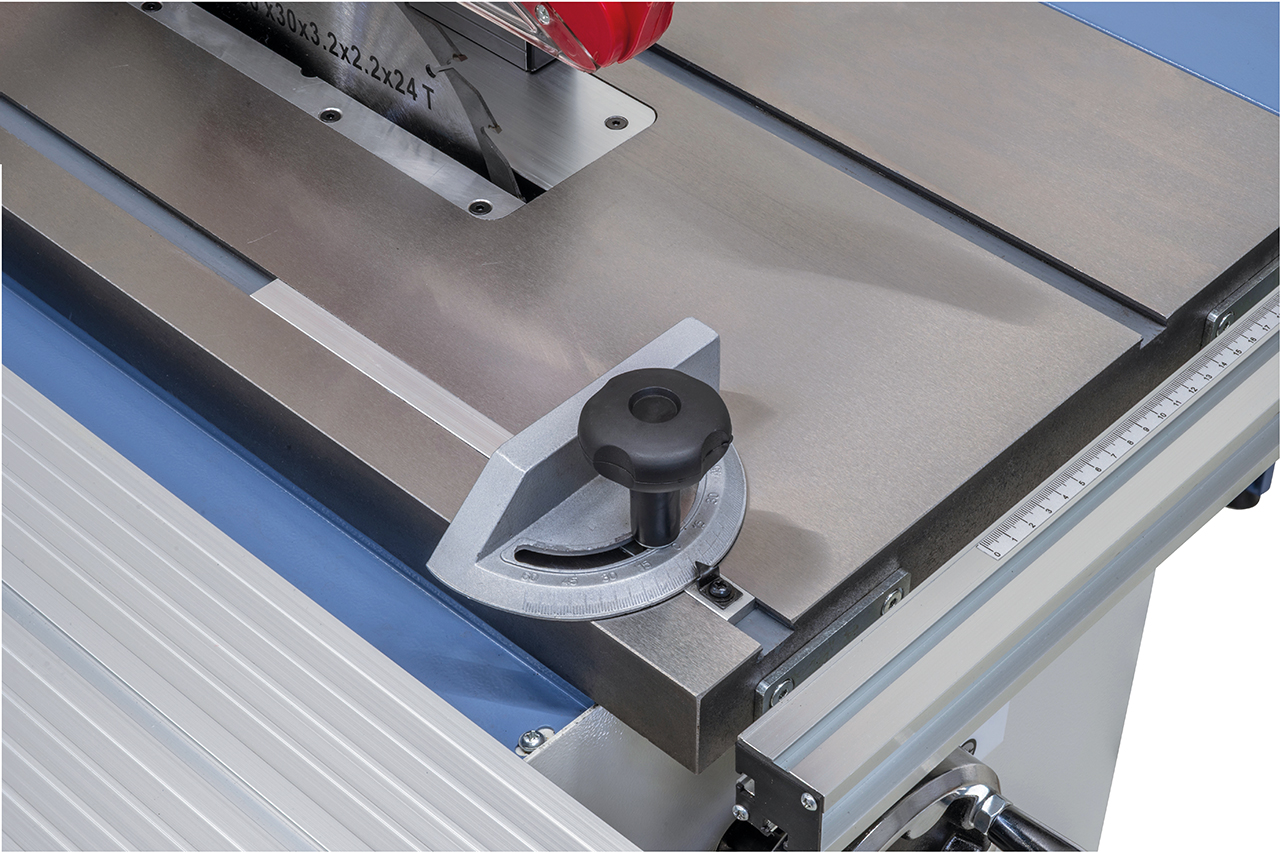

Grey, cast-iron roller table constructed and polished with top accuracy.

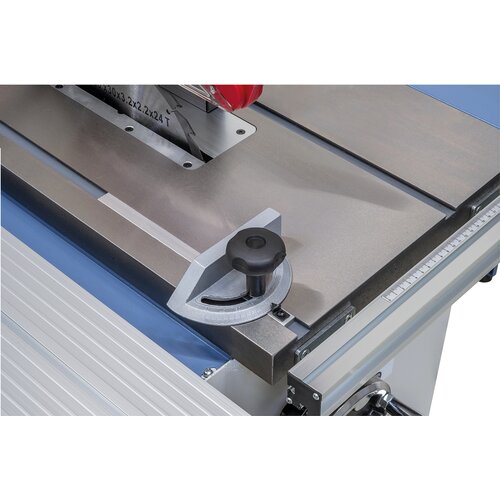

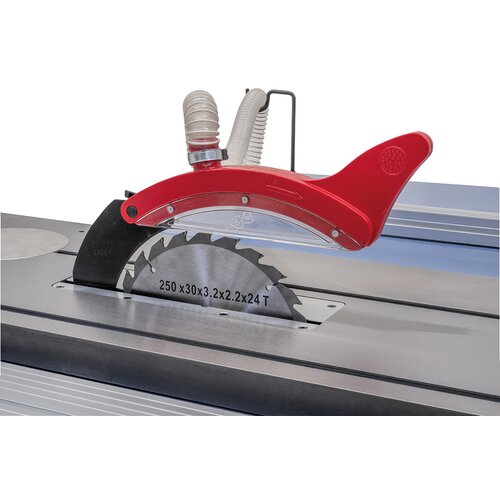

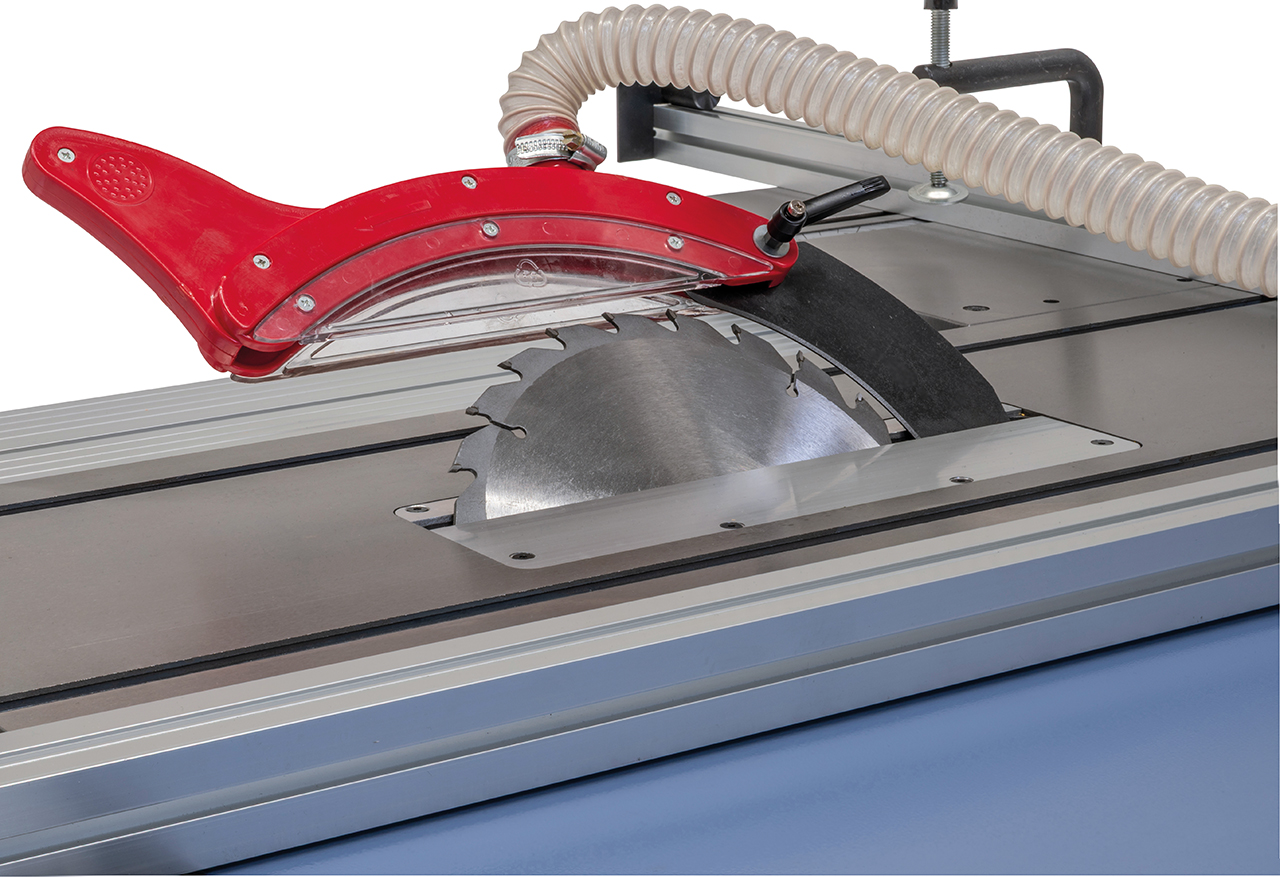

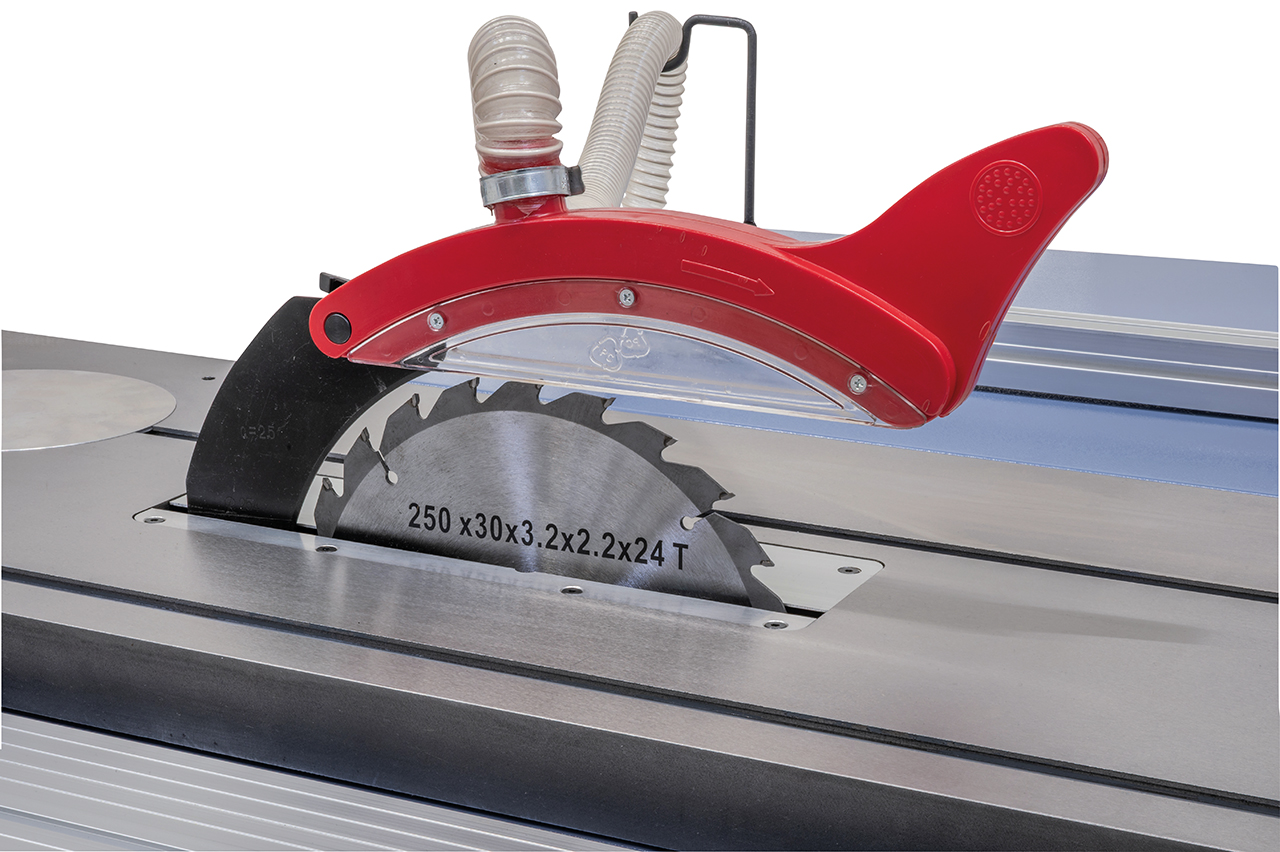

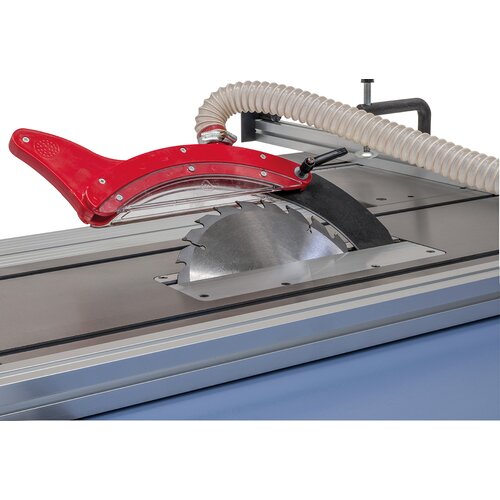

For angular cutting the sawblade can be tilted from 90º to 45º.

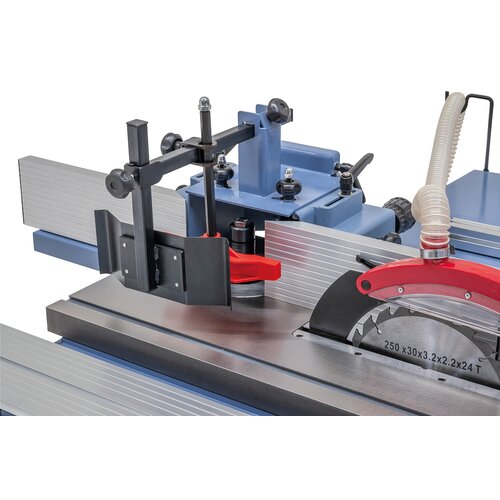

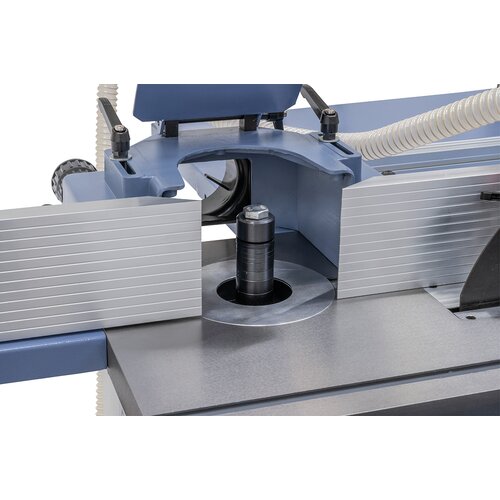

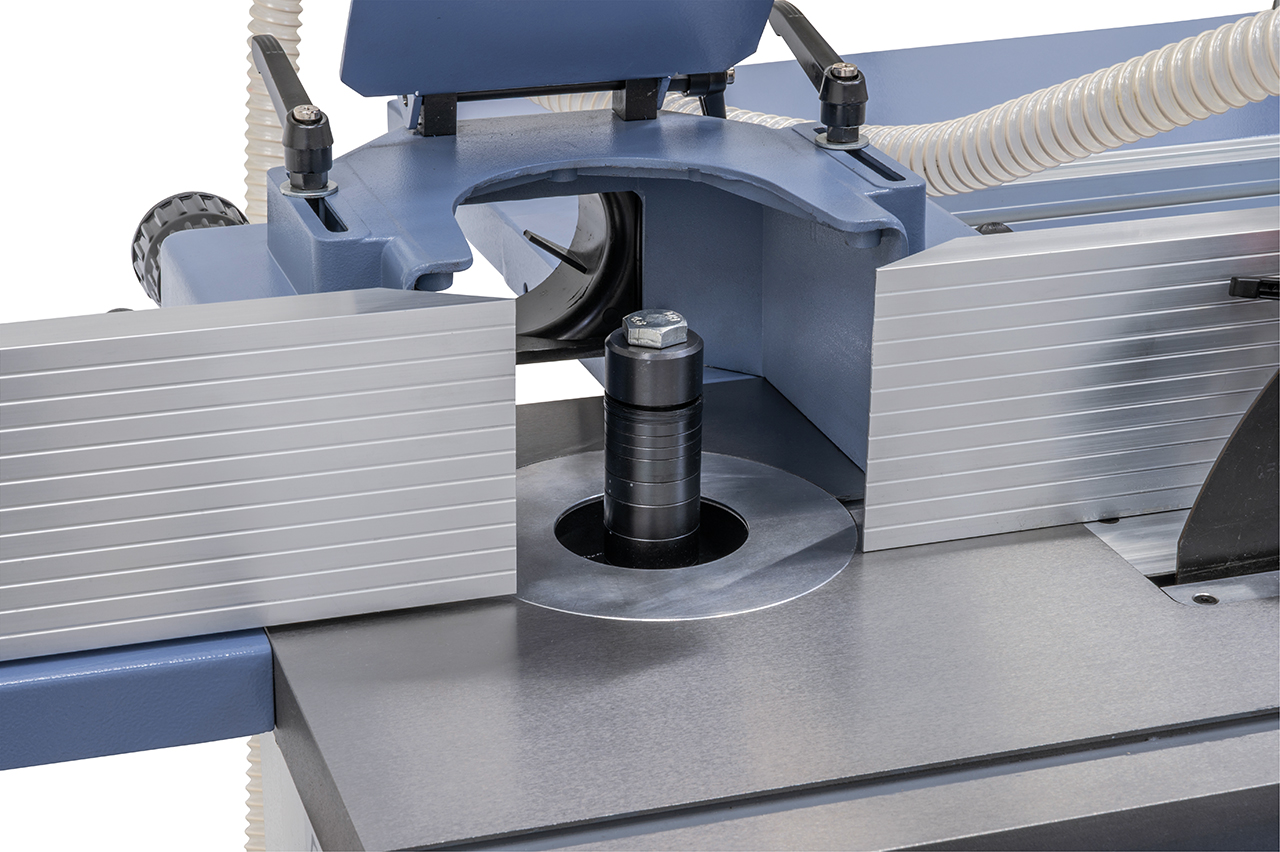

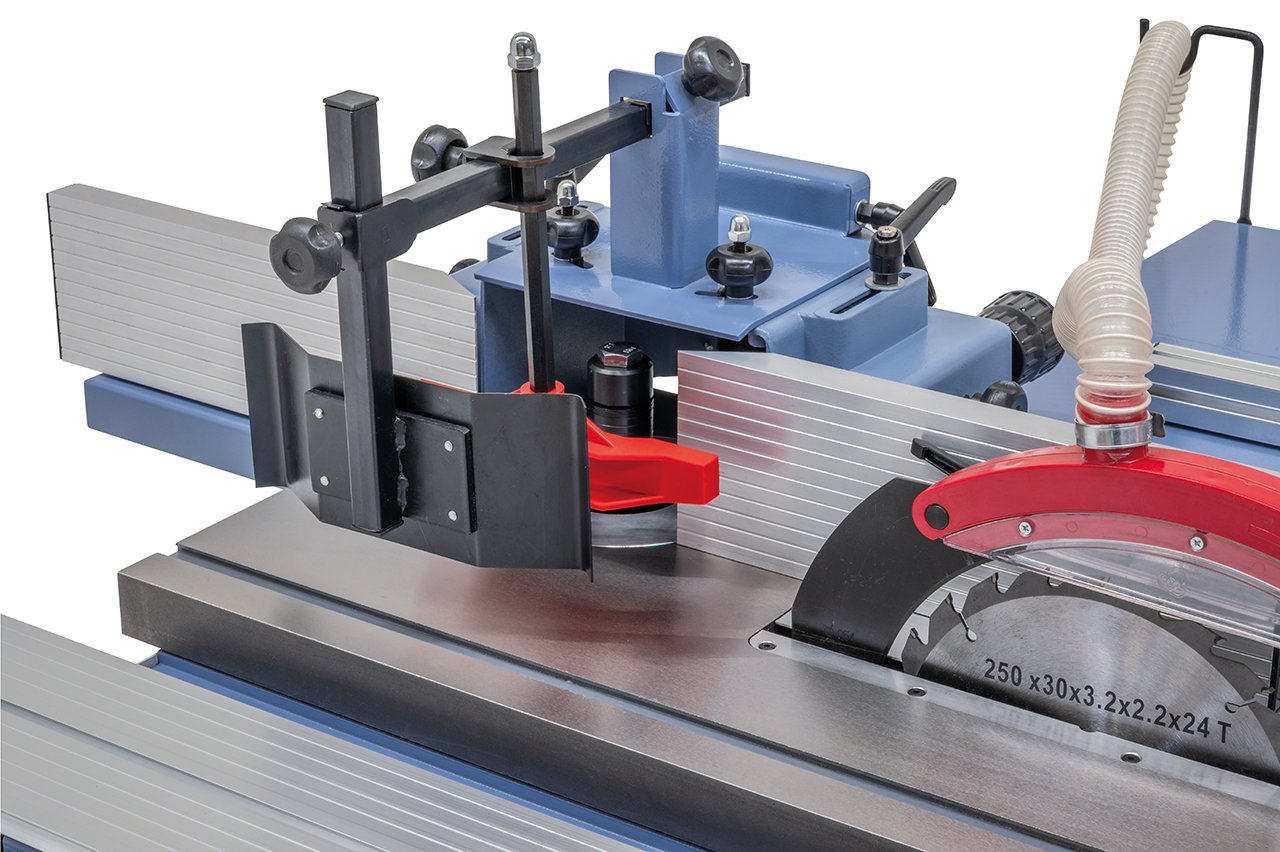

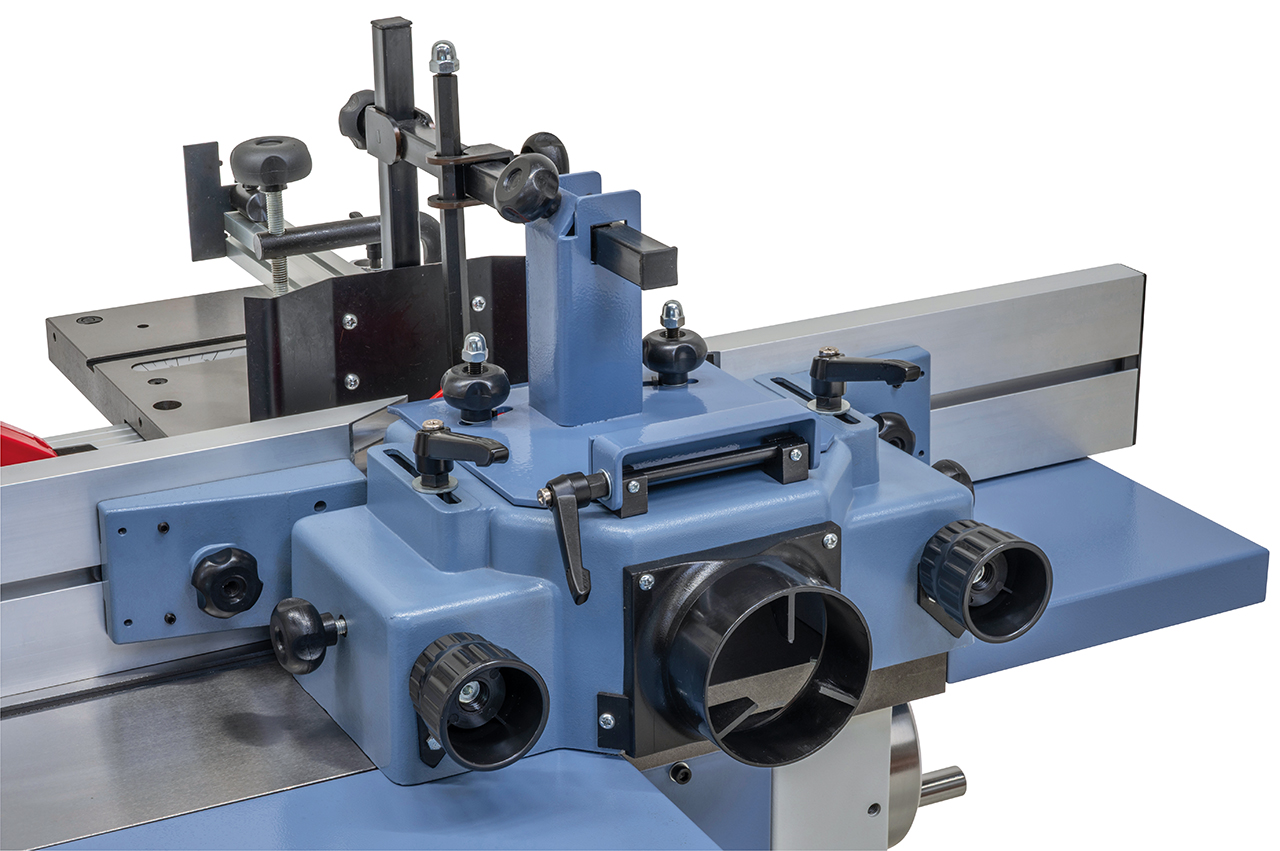

The fences of moulding fence can easily and quickly be adjusted to different cutters. Part of the standard equipment is a protective device to avoid kickback of workpieces.

Kreissäge-Fräsmaschine FK 250 R / 400 V *

product.detail.art-no: 08-1177

Wishlist Comparison List

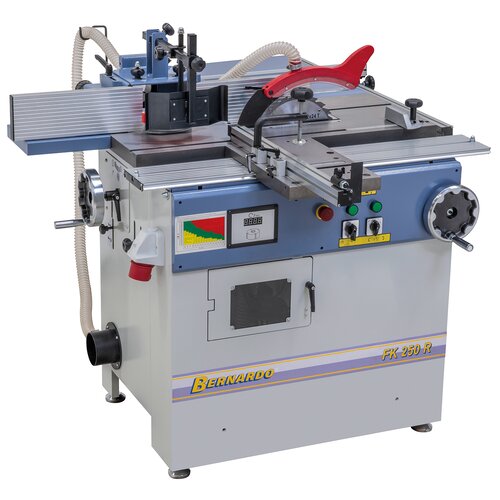

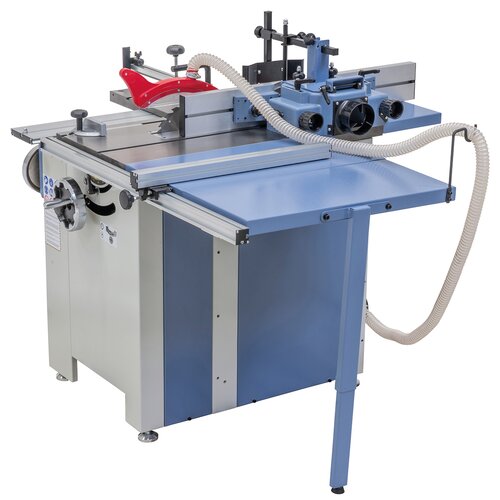

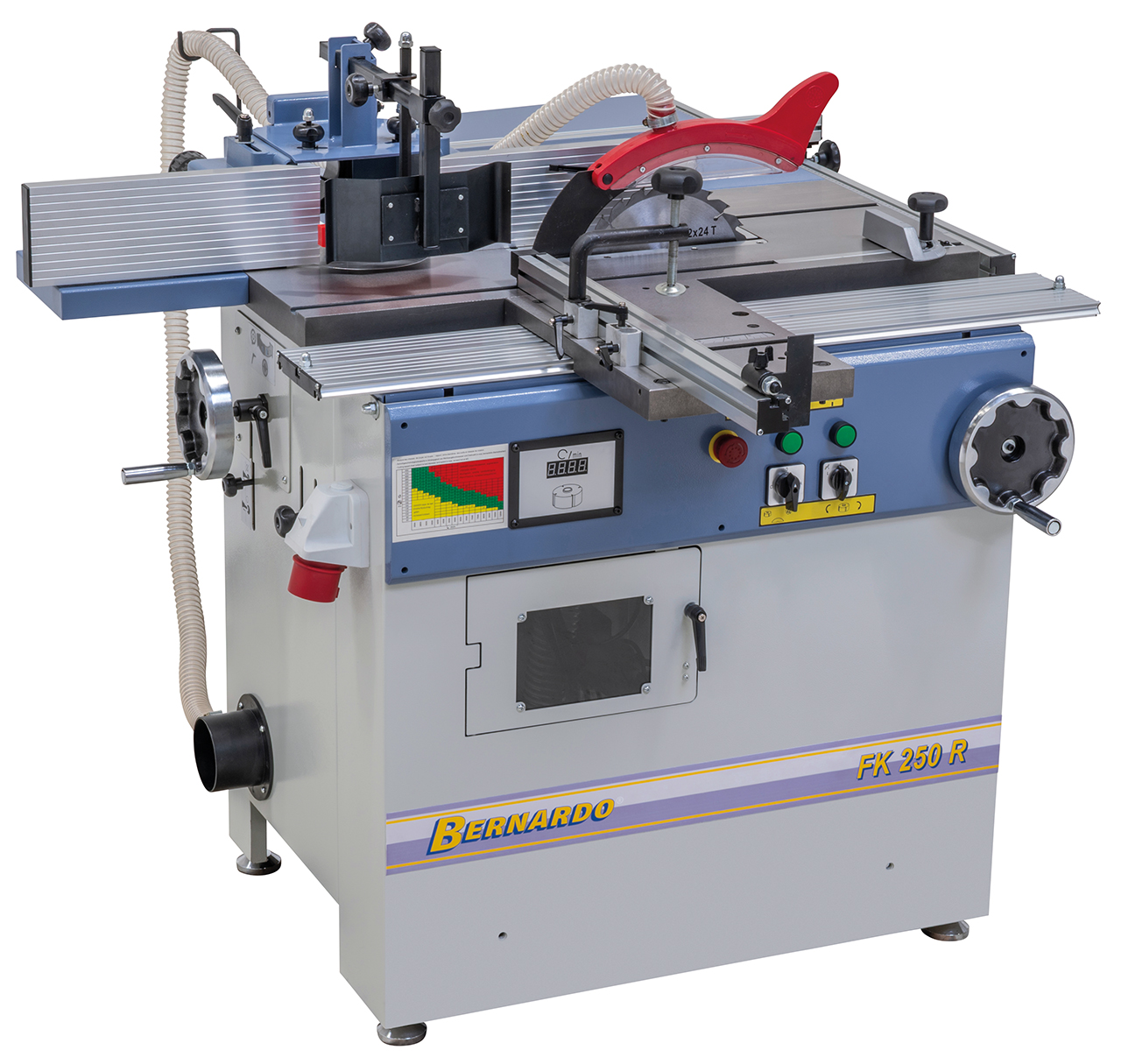

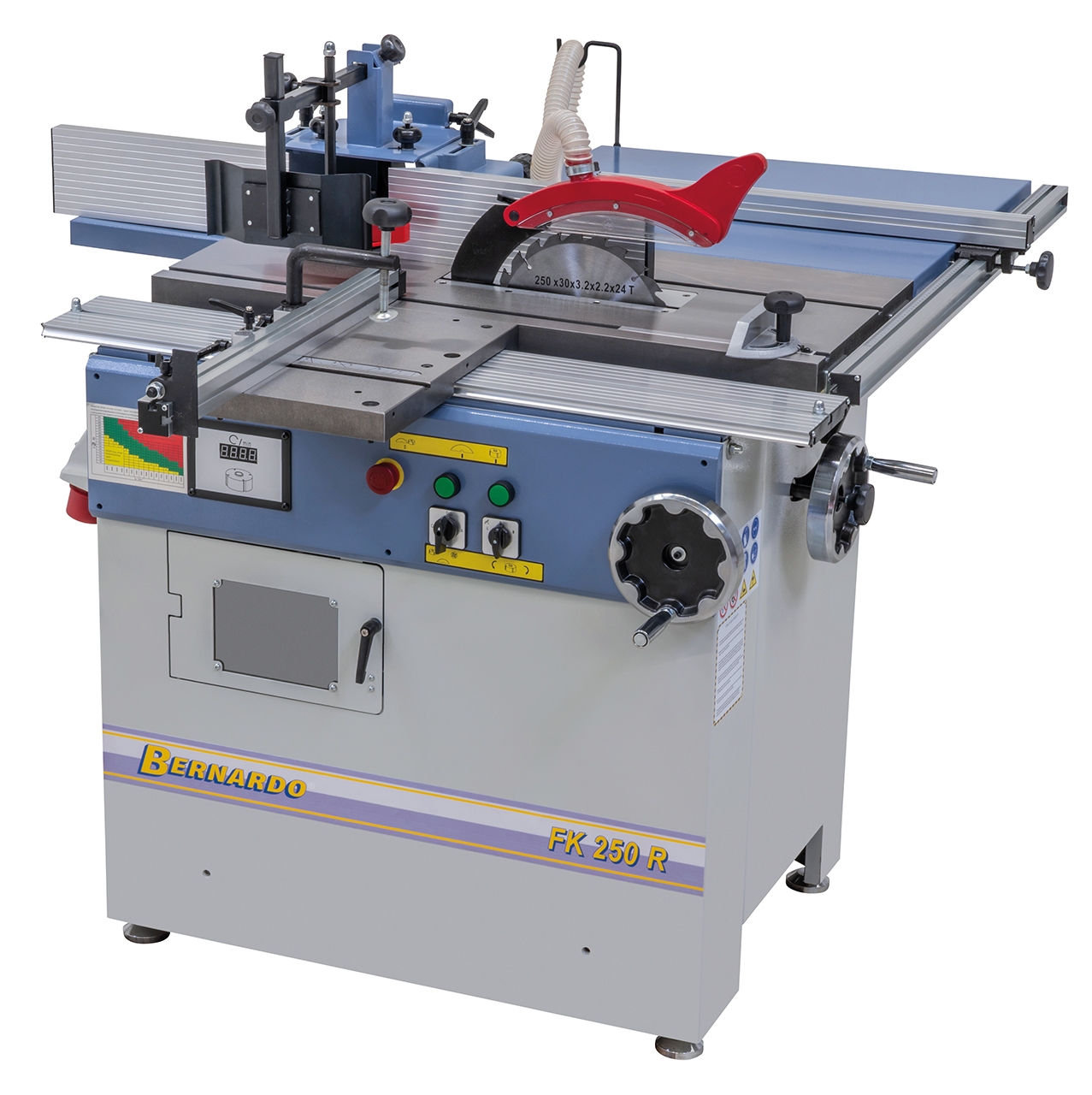

The FK 250 R circular saw & spindle moulder comes complete with a roller table. The small and compact construction makes this model ideal for amateurs.

2 820,00 €

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by 4.11.2025

Product Properties

Optimal price-to-performance ratio for amateurs and craftsmen

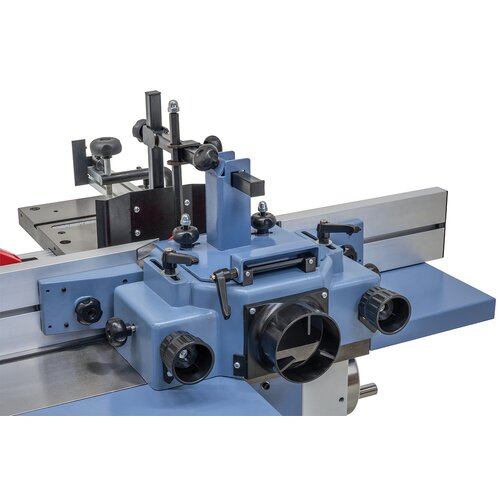

Solid moulding fence with dust port of 100 mm

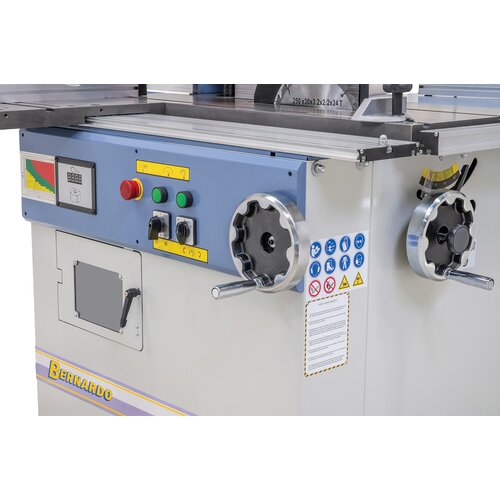

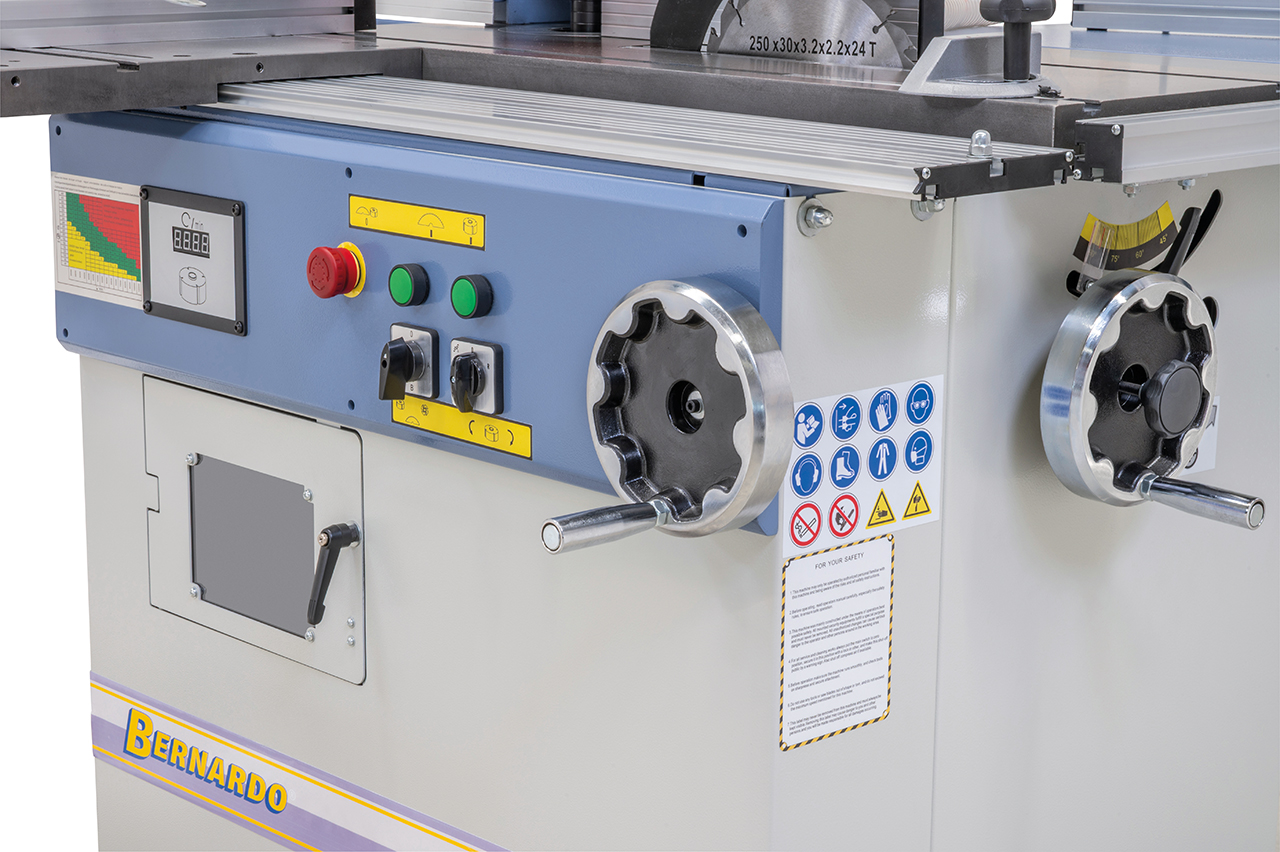

Ergonomically arranged switches and control elements allow for high work comfort
Solid, grey cast-iron table eliminates vibrations, constructed and polished with precision

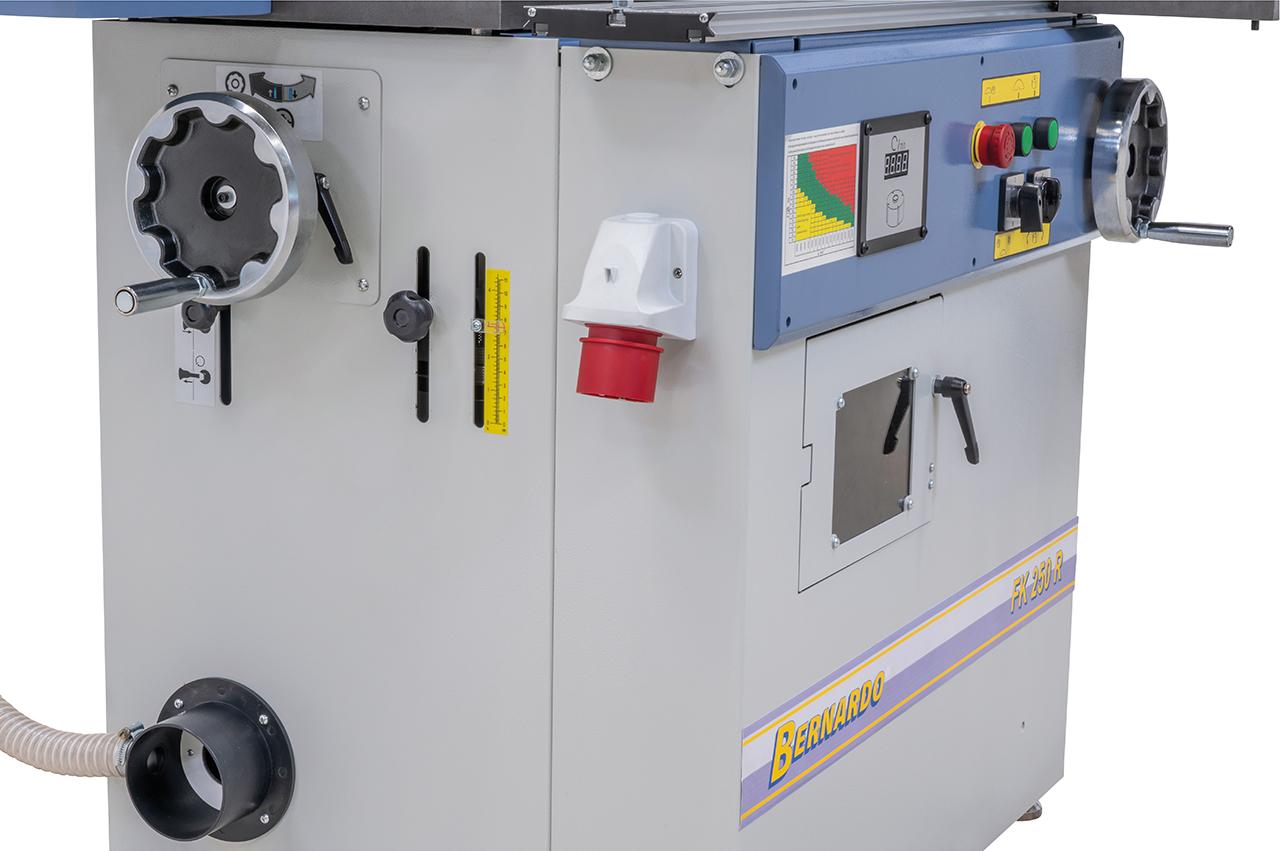

Practically positioned handwheels allow for convenient saw unit adjustment

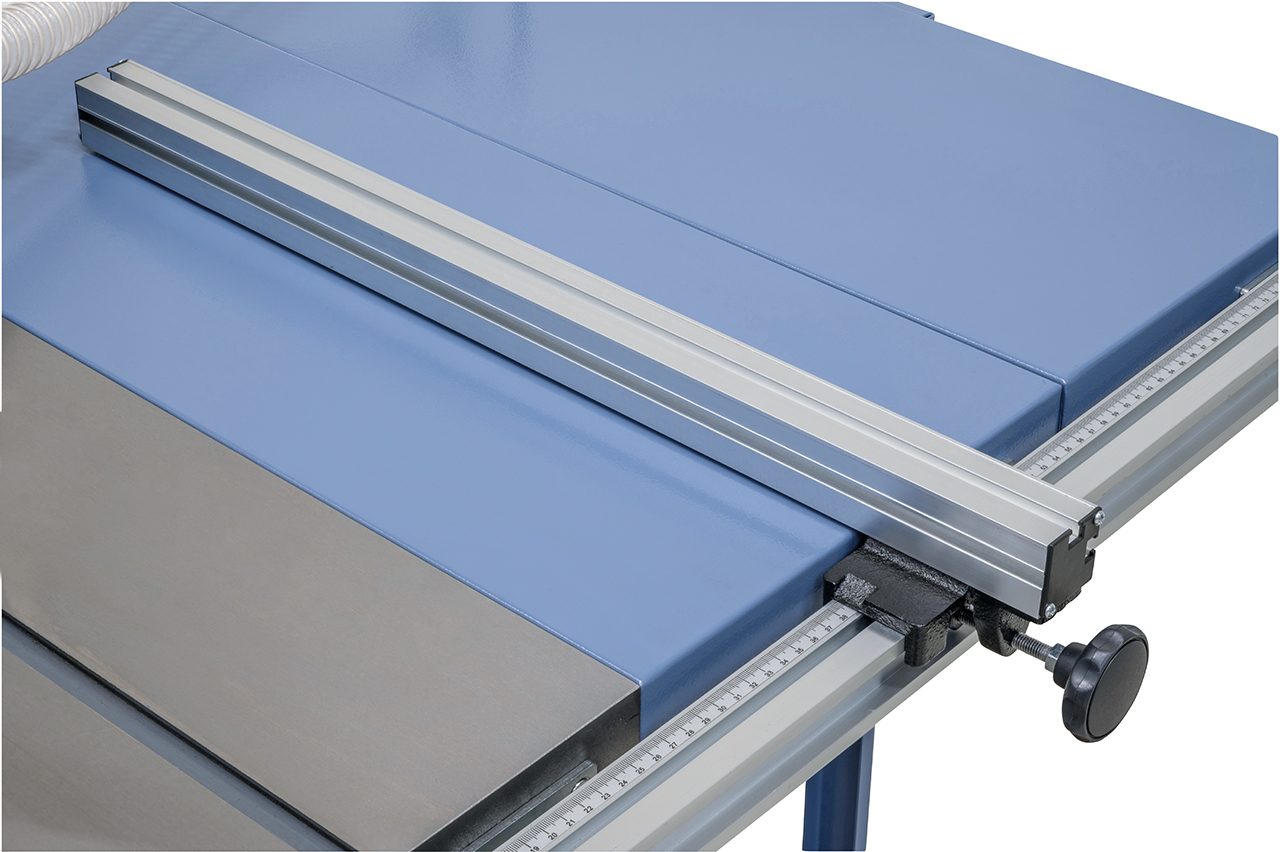

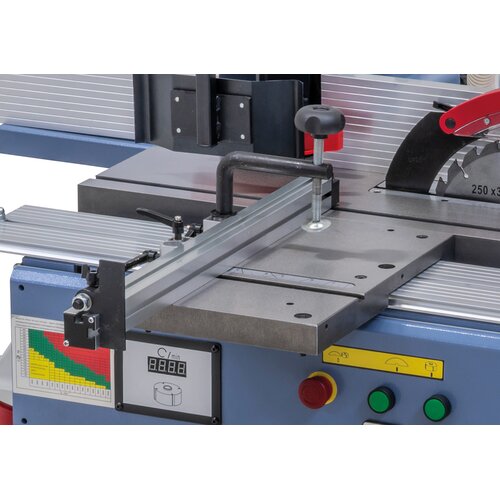

Roller table with aluminium fence ensures high user comfort
Emergency stop button on front of machine increases safety
Most suitable for accurate processing of panels, planks, boards etc.
Dynamically balanced moulder spindle ensures for vibration-free run

Product Specifications

Circular saw
Table size	900 x 410 mm
Table height	865 mm
Table enlargement	2x 235 x 210 mm
Table extension	670 x 300 mm
Roller table	400 x 250 mm
Cutting length	710 mm
Max. sawblade diameter	250 x 30 mm
Max. cutting height 90° / 45°	80 / 60 mm
Cutting width on rip fence	820 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S1 100%	2,2 kW (1,5 HP)
Motor power input S6 40%	3,0 kW (4,0 HP)
Spindle moulder
Spindle diameter	30 mm
Height adjustment	110 mm
Table opening	170 mm
Working length of spindle	90 mm
Max. tool diameter
- at profiling	150 mm
- at tenoning	150 mm
Spindle speed	1400/4000/6000/8000 rpm
Motor power output S1 100%	1,5 kW (2,0 HP)
Motor power input S6 40%	2,1 kW (2,8 HP)
Voltage	400 V
Machine dimension (W x D x H)	1240 x 1620 x 1150 mm
Weight approx.	179 kg
