HPS 60

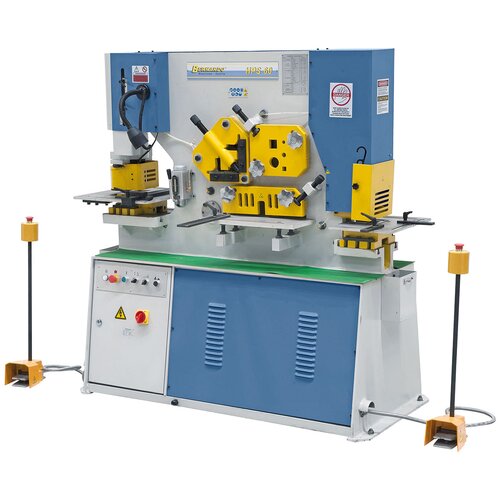

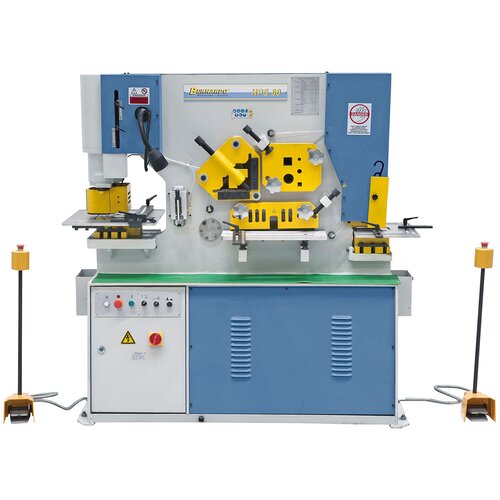

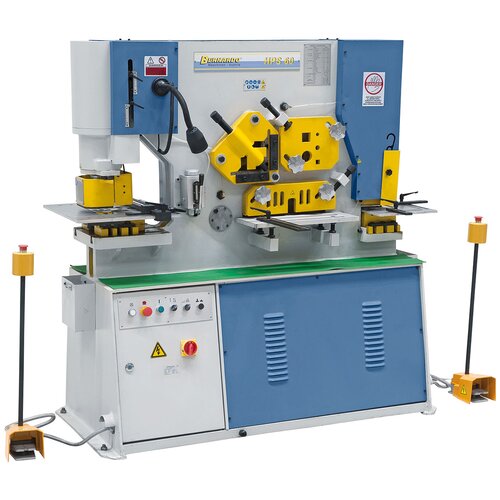

product.detail.art-no: 06-1623XLHydraulic iron worker HPS 60
12.336,00 €
incl. 20% VATAvailability
Product Specifications
|
Punching |
|
|
Punching force |
60 t |
|
Max. punching performance |
16 mm |
|
Diameter x Strenght |
25 mm |
|
Stroke length |
80 mm |
|
Number of strokes (20 mm stroke) |
8 cpm |
|
Throat |
300 mm |
|
Max. hole dimension (standard) |
25 mm |
|
Max. hole dimension* |
Φ 50 mm |
|
Working height |
970 mm |
|

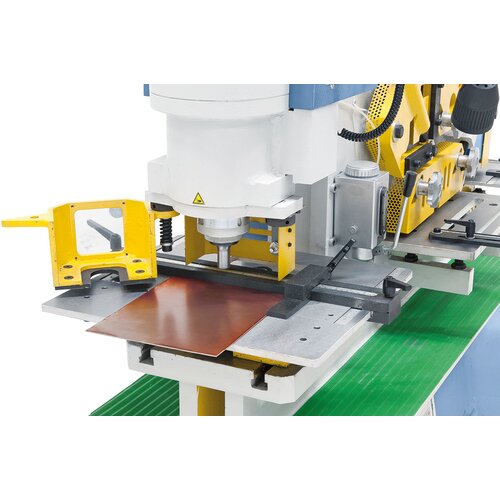

Flat steel station |
|
|
Max. thickness of flat steel |
16 mm |
|
Max. width of flat steel |
330 mm |
|
Length of knives |
410 mm |
|
Angle profile |
7° |
|
Working height |
930 mm |
|

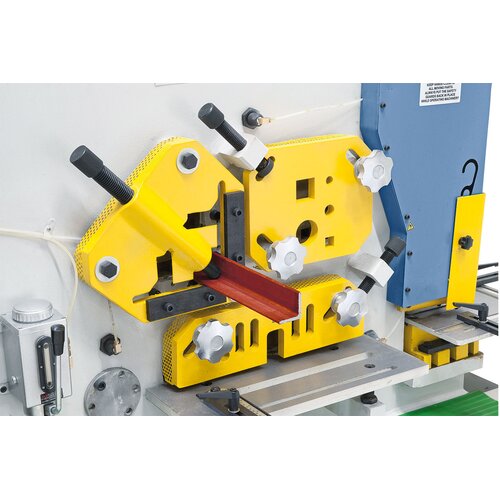

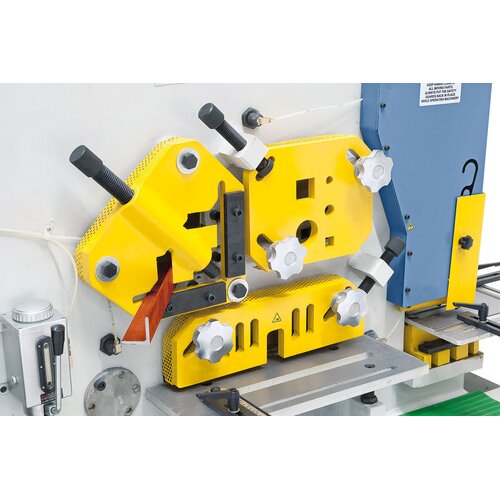

Sectional steel station |
|
|
90° |
125 x 125 x 12 mm |
|
45° |
50 x 50 x 5 mm |
|
Working height |
1130 mm |
|
U-profile / I-profile* |
126 x 53 x 5,5 / 126 x 74 x 5 mm |
|
T-profiles* |
125 x 125 x 12 mm |
|
60 x 60 x 8 mm |
|
|
Bar steel station |
|
|
Round profile |
45 mm |
|
Square profile |
40 x 40 mm |
|
Working height |
1185 mm |
|
Notching station |
|
|
Material thickness |
16 mm |
|
Width |
330 mm |
|
Rectangle notching |
57 x 100 mm |
|
Triangle notching |
5 x 5 x 7,5 mm |
|
Working height |
910 mm |
|
Motor power |
4 kW |
|
Machine dimensions (W x D x H) |
1640 x 730 x 1770 mm |
|
Weight approx. |
1600 kg |
|
* optional |
|
