HPS 45

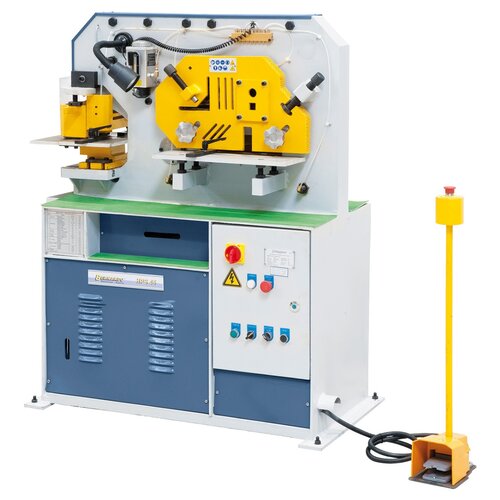

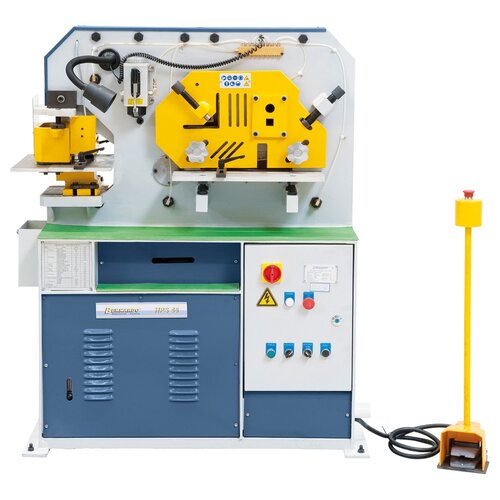

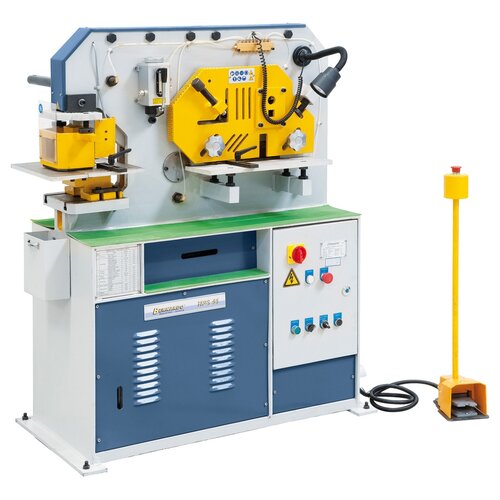

product.detail.art-no: 06-1621XLHydraulic iron worker HPS 45
8.196,00 €
incl. 20% VATAvailability
Product Specifications
|
Punching |
|
|
Punching force |
45 t |
|
Max. punching performance |
12 mm |
|
Diameter x Strenght |
22 mm |
|
Stroke length |
60 mm |
|
Number of strokes (20 mm stroke) |
8 cpm |
|
Throat |
200 mm |
|
Max. hole dimension (standard) |
22 mm |
|
Max. hole dimension* |
Φ 40 mm |
|
Working height |
955 mm |
|
Flat steel station |
|
|
Max. thickness of flat steel |
12 mm |
|
Max. width of flat steel |
330 mm |
|
Length of knives |
318 mm |
|
Angle profile |
7° |
|
Working height |
940 mm |
|
Sectional steel station |
|
|
90° |
100 x 100 x 10 mm |
|
45° |
70 x 70 x 6 mm |
|
Working height |
1090 mm |
|
U-profile / I-profile* |
80 x 45 x 5 / 80 x 45 x 5 mm |
|
T-profiles* |
100 x 100 x 10 mm |
|
40 x 40 x 5 mm |
|
|
Bar steel station |
|
|
Round profile |
30 mm |
|
Square profile |
30 x 30 mm |
|
Working height |
1150 mm |
|
Motor power |
3 kW |
|
Machine dimensions (W x D x H) |
1200 x 520 x 1500 mm |
|
Weight approx. |
1000 kg |
|
* optional |
|
