AC25/200/500/F/D

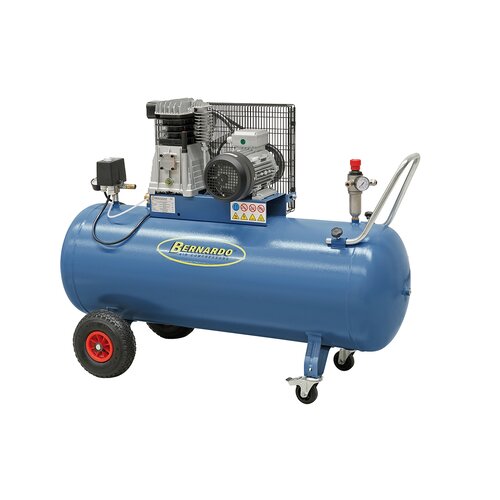

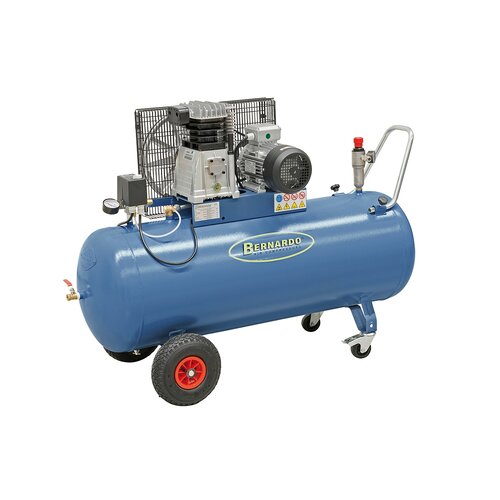

product.detail.art-no: 70-1090Kompressor mit Fahrwerk AC25/200/500/F/D
Price on request
Request product nowAvailability
Out of Stock
Product Specifications
|
Tank capacity |
200 l |
|
Suction capacity |
500 l/min |
|
Fill capacity approx.* |
400 l/min |
|
Speed |
1450 rpm |
|
Cylinder / stages |
2 / 1 |
|
Maximum pressure |
10 bar |
|
Motor power |
3,0 kW (4,0 HP) |
|
Voltage |
400 V / 50 Hz |
|
Sound pressure level |
78 dB(A) |
|
Machine dimension (L x W x H) |
1140 x 540 x 1030 mm |
|
Weight approx. |
93 kg |
|
* according VDMA 4362, measured at 70% of the maximum pressure |
|
