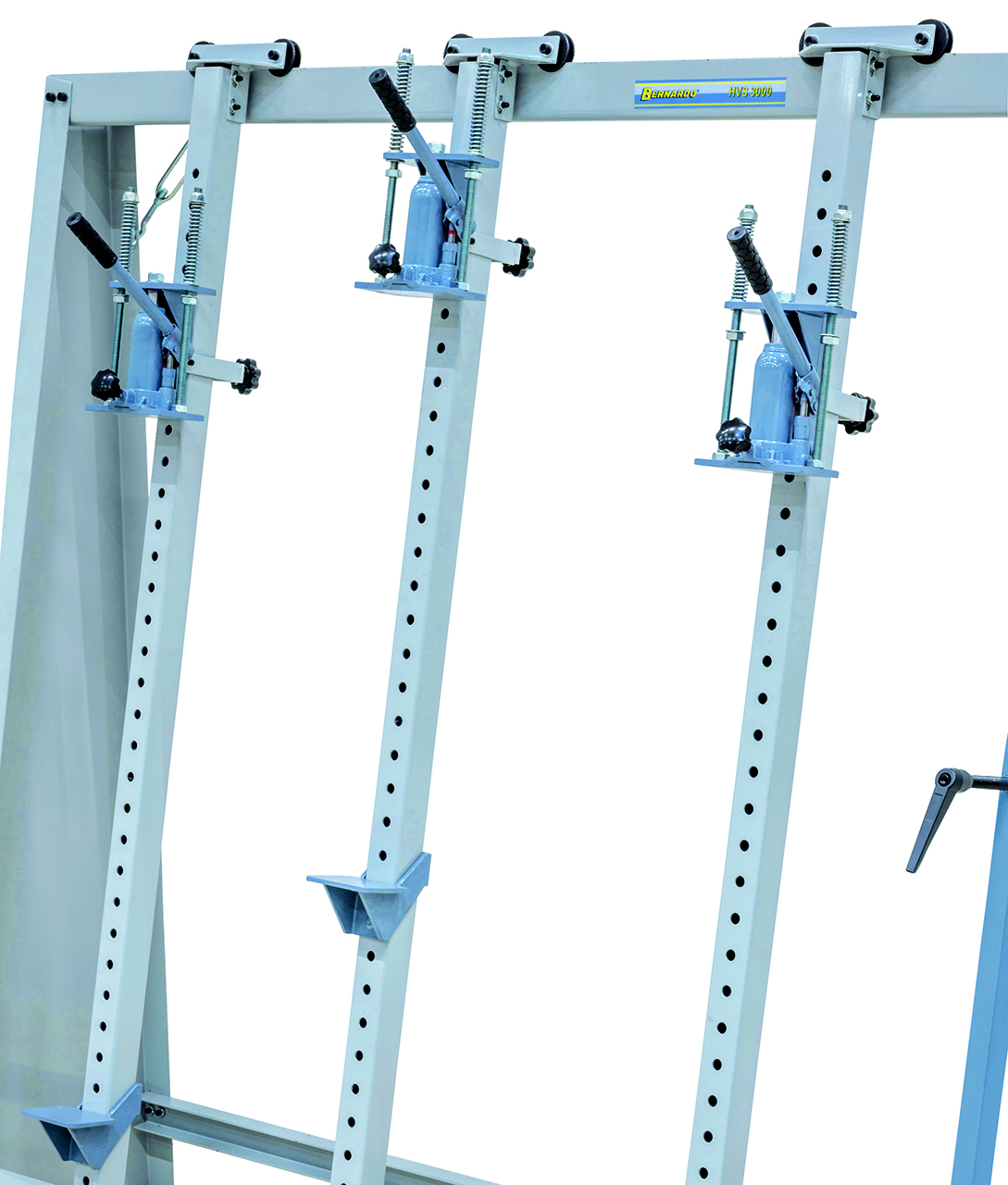

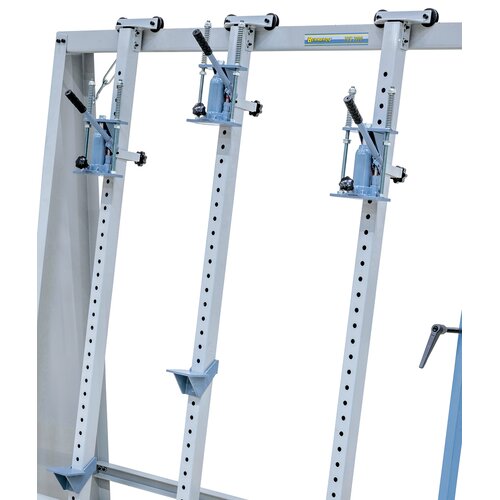

Easy and quick adjustment for all workpiece sizes thanks to continuously adjustable lateral pressure bars.

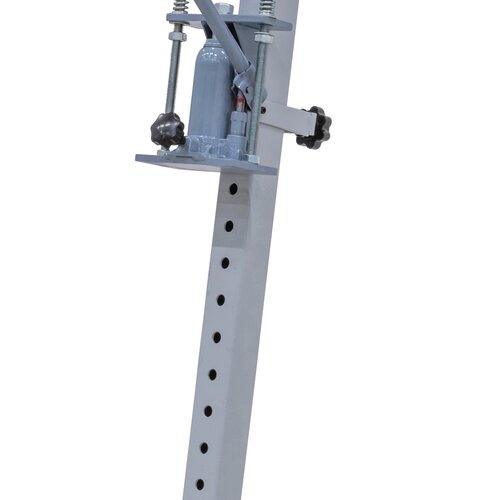

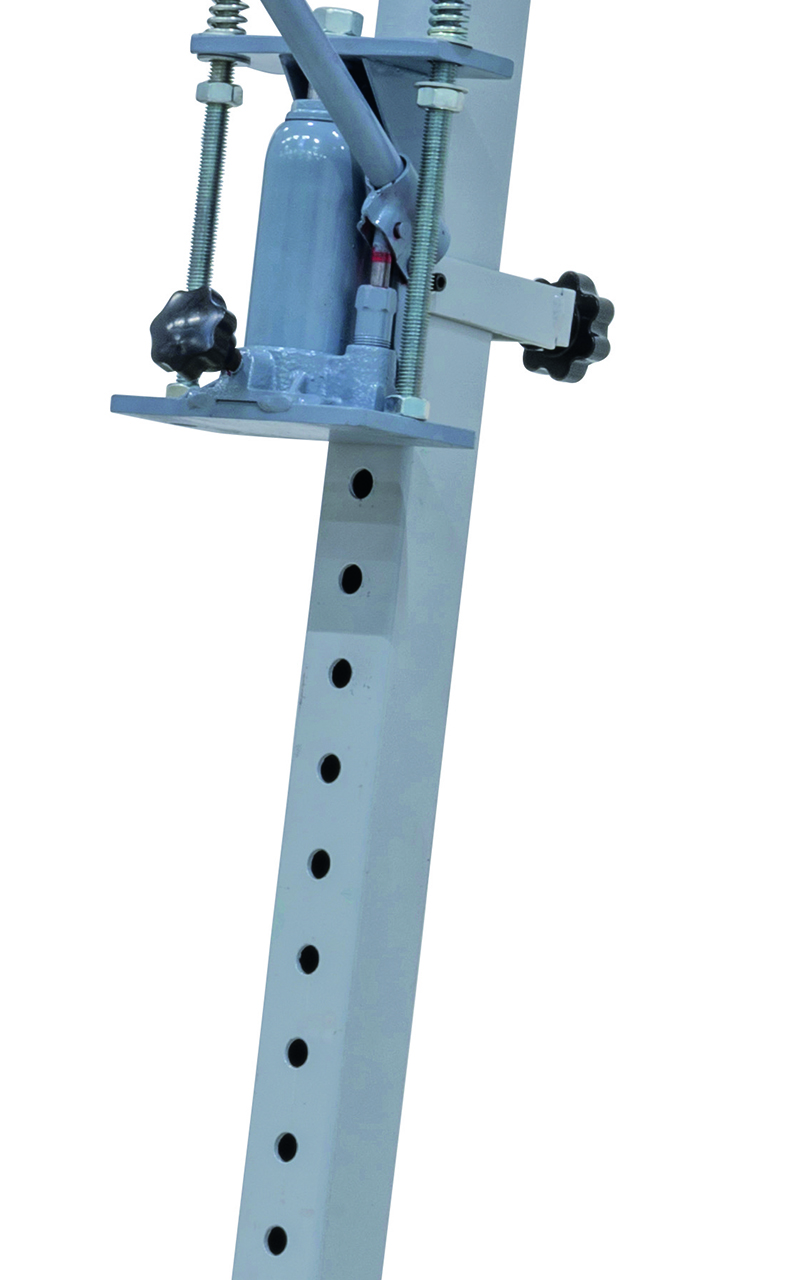

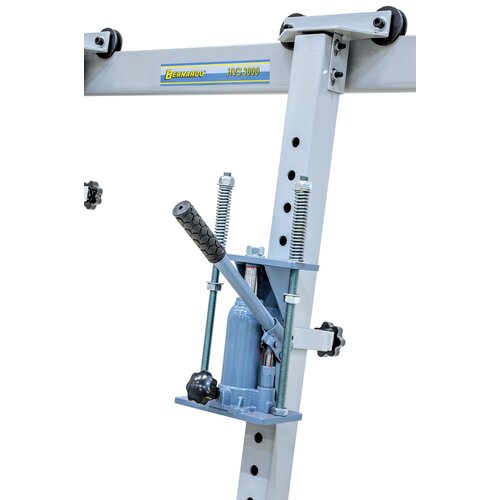

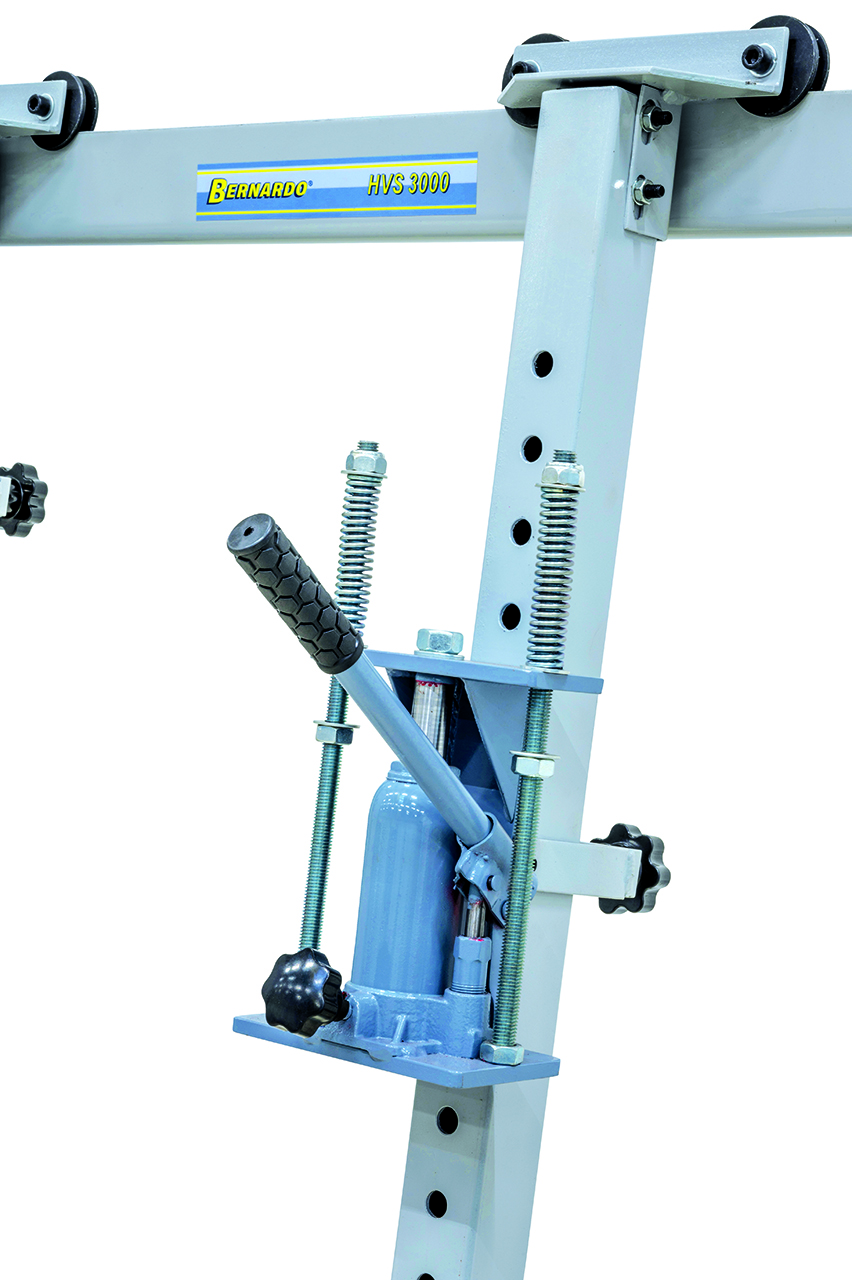

Pressure cylinder with a maximum pressing force of 2500 kg and a stroke of 65 mm.

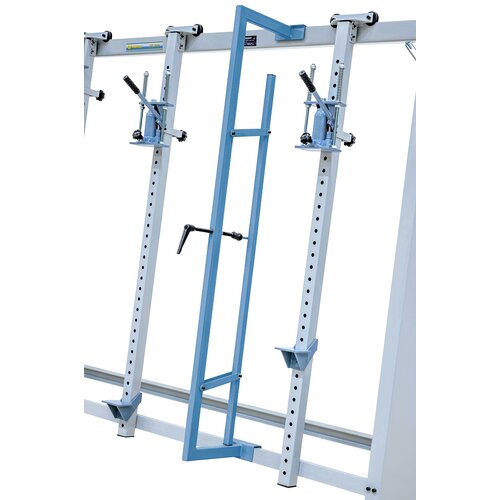

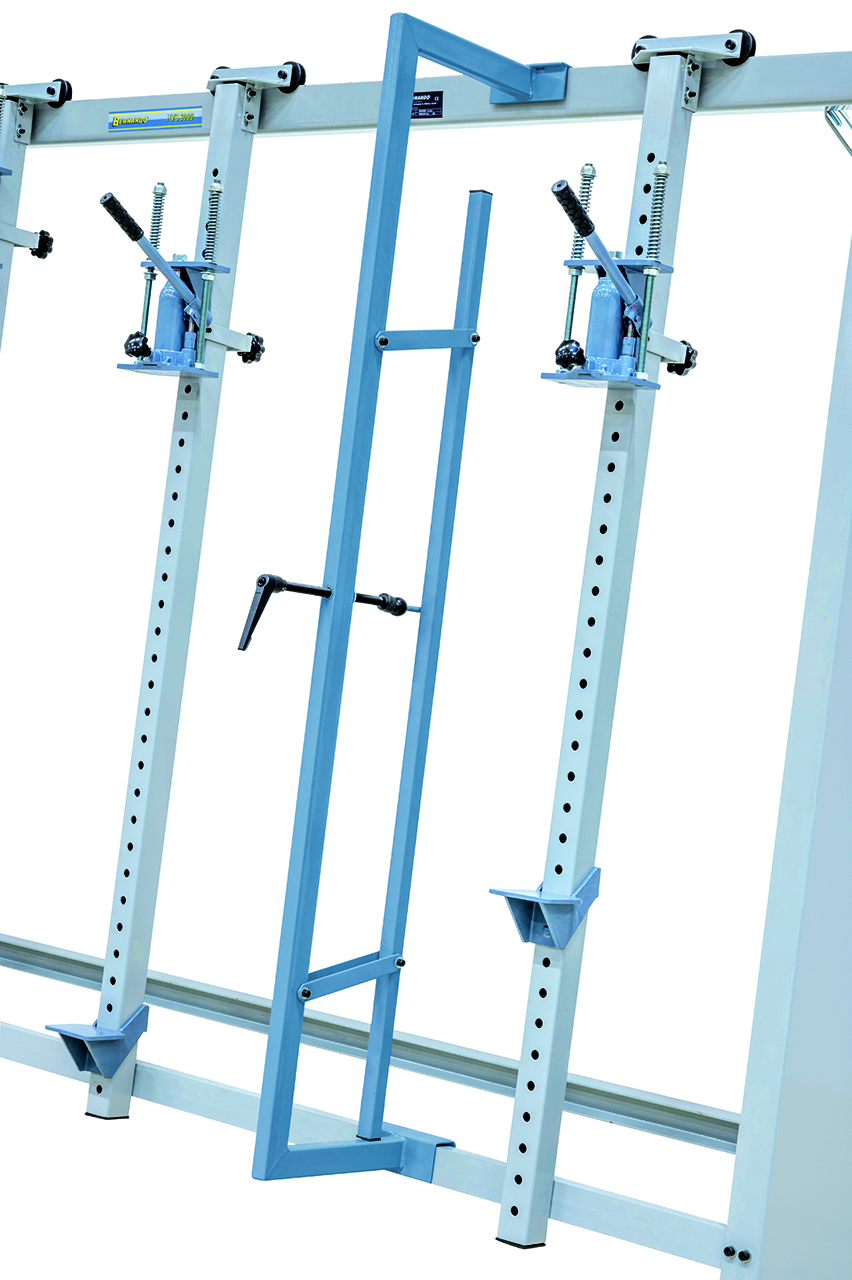

Pressure clamp for block bonding.

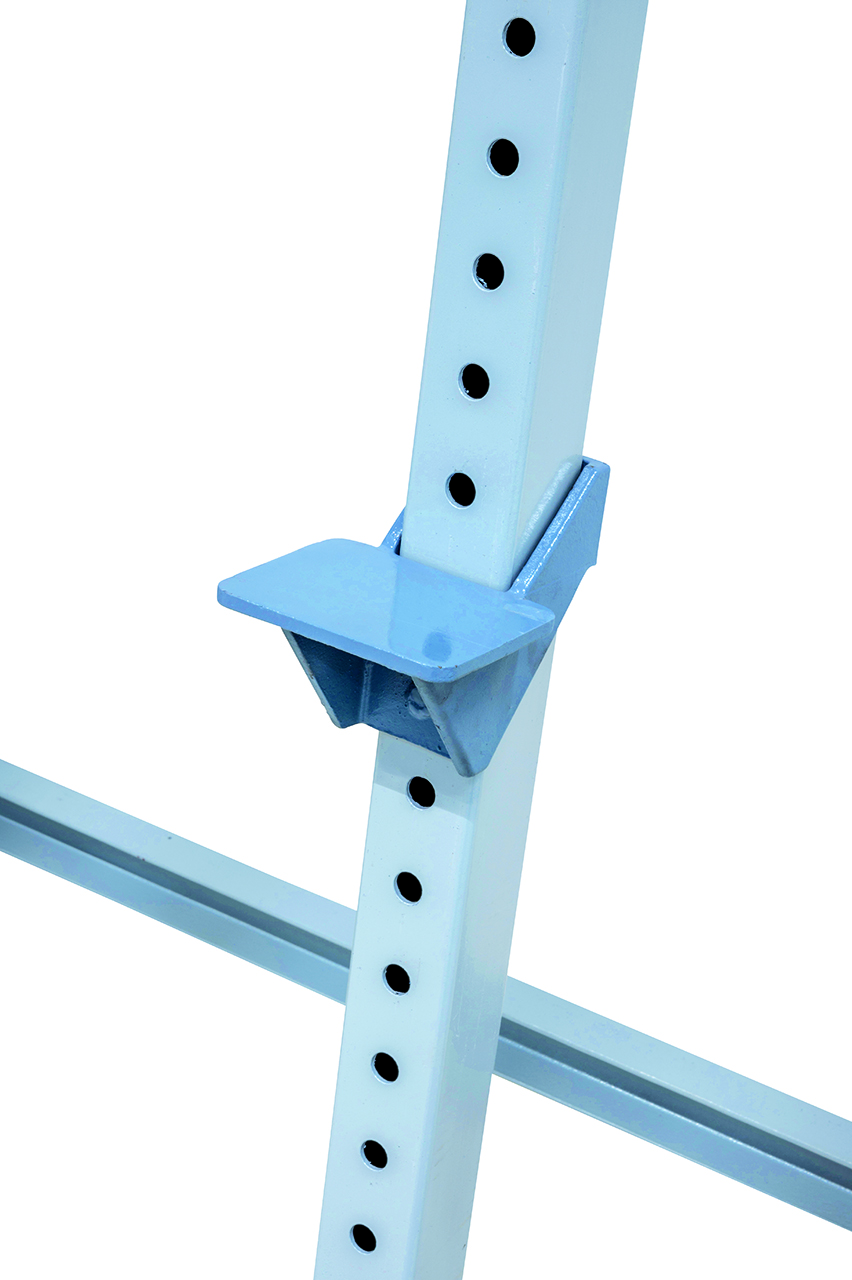

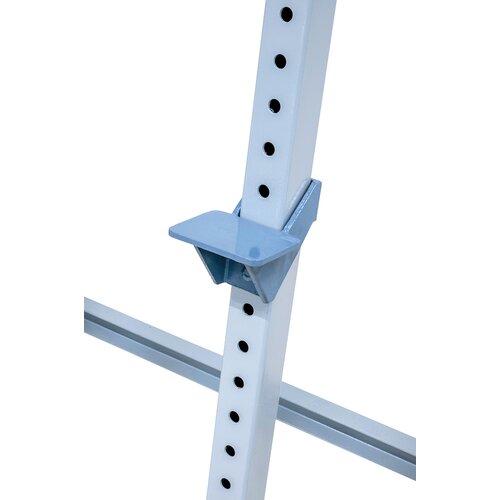

The holes in the pressure bar (50 mm spacing) allow easy adjustment of the cylinder and counter-block to the required distance.

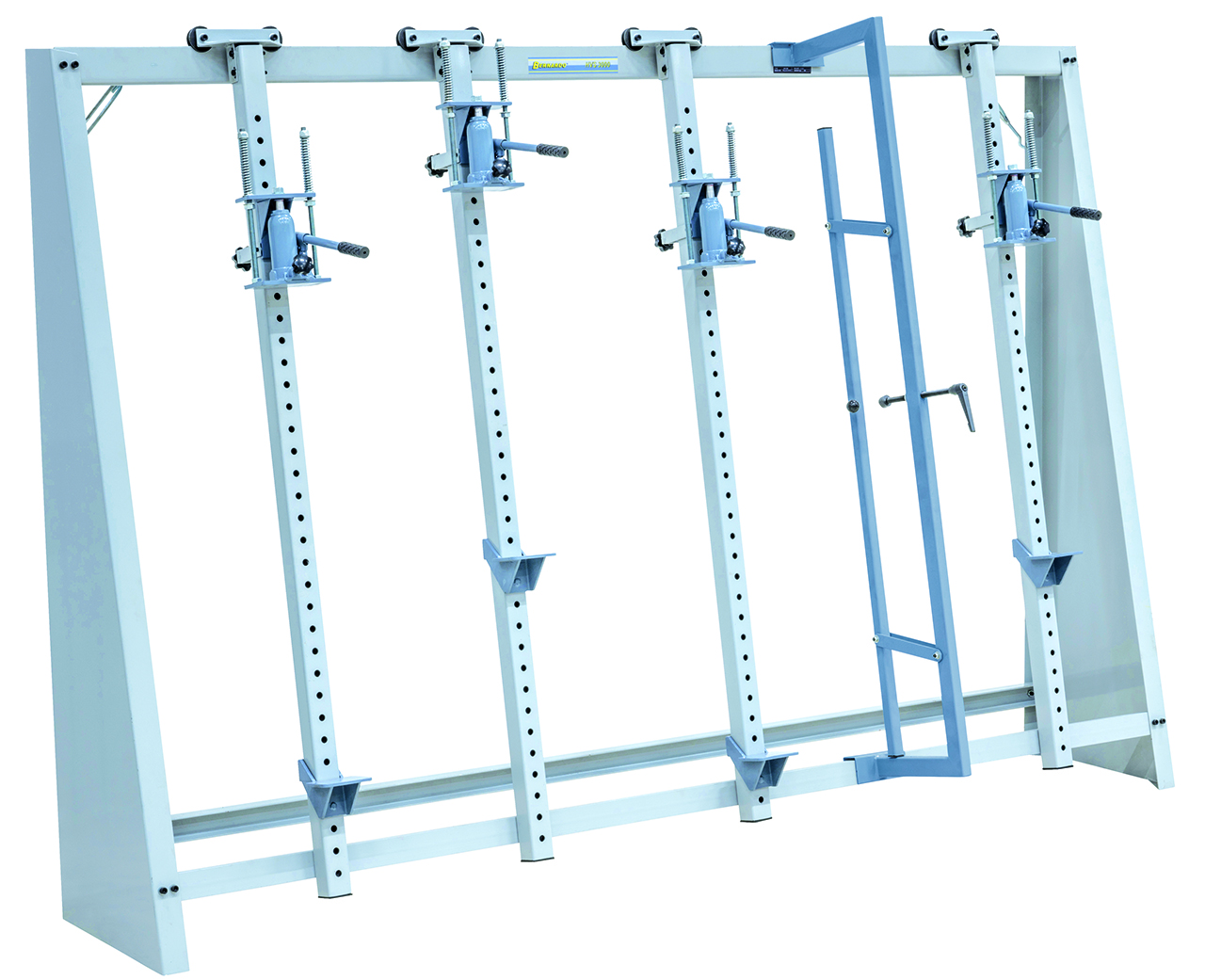

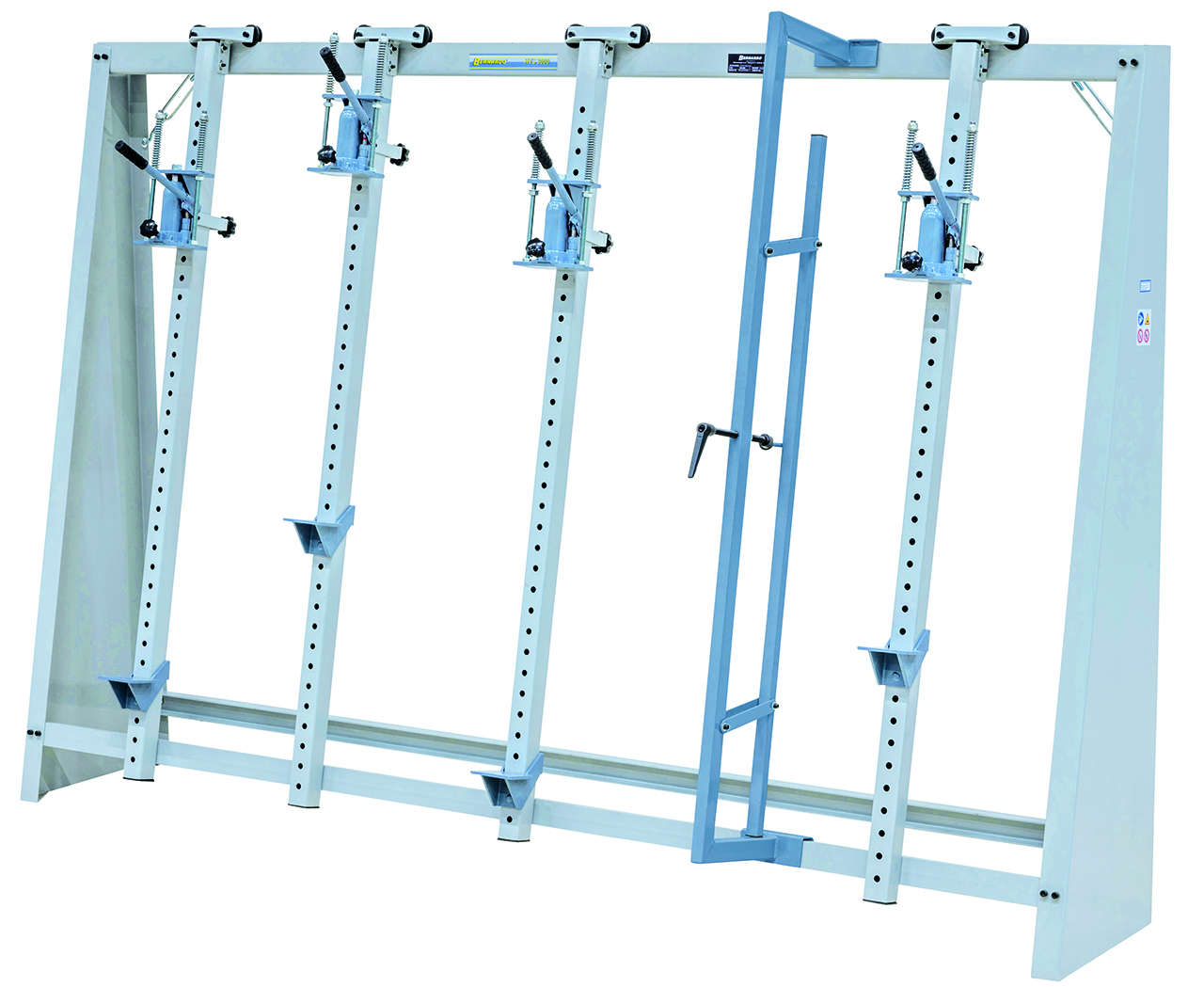

Verleimpresse HVS 3000

Art. No.: 14-2129

Wishlist Comparison List

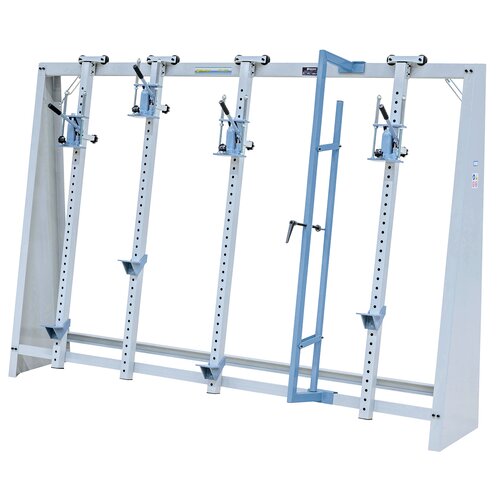

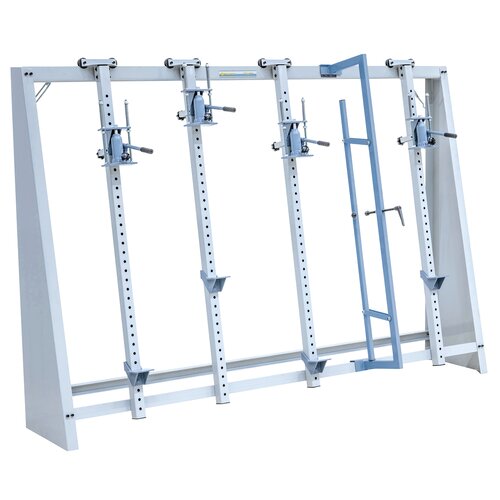

Universal use and quick and easy operation characterize the HVS 3000 gluing stand, making it indispensable for daily use in craft workshops and carpentry shops.

1 450,00 €

excl. VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Can be used for a wide range of tasks, such as solid wood gluing, door manufacturing, edge banding, etc.
Robust gluing press in solid steel construction
Faster and more effective gluing compared to screw clamps
Standard with 4 adjustable pressure bars and a pressure clamp
No jamming of the pressure cylinders due to double spring-loaded guide

Product Specifications

Working length	2800 mm
Working height	1460 mm
Cylinder stroke	65 mm
Pressing force	2500 kg
Vertical hole spacing	50 mm
Total length	3000 mm
Total depth	2070 mm
Frame depth	925 mm
Weight approx.	198 kg
