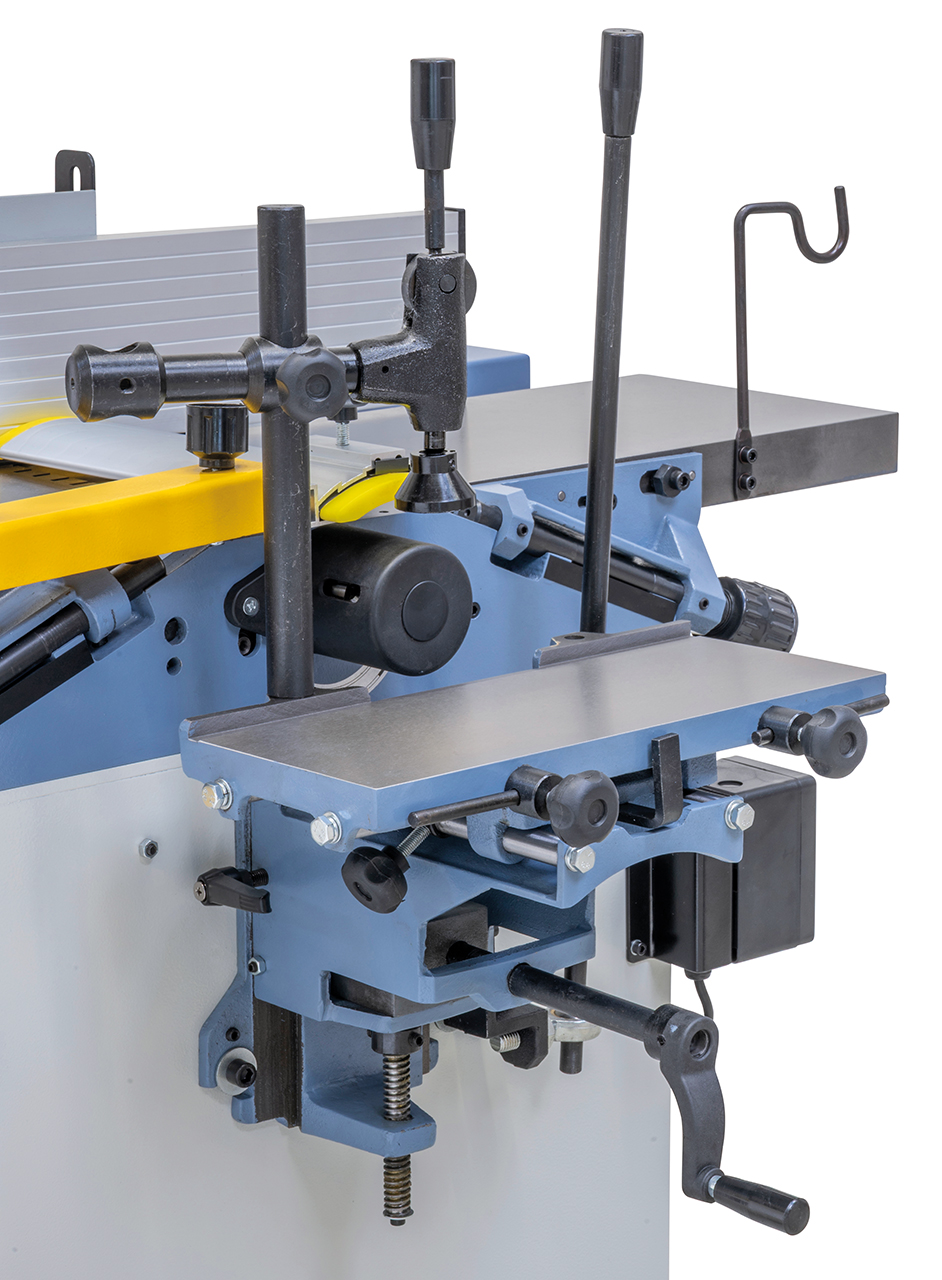

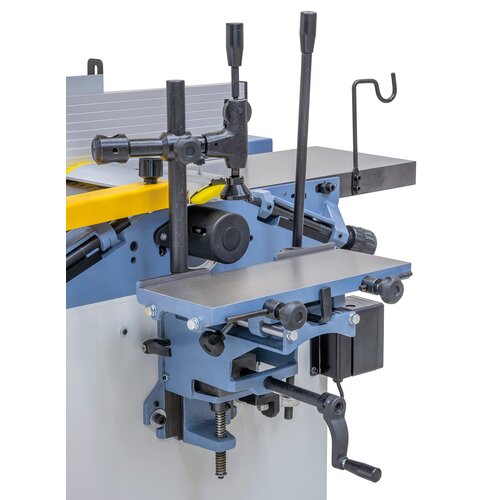

Mortising unit comes complete with large support table and eccentric clamp (optionally).

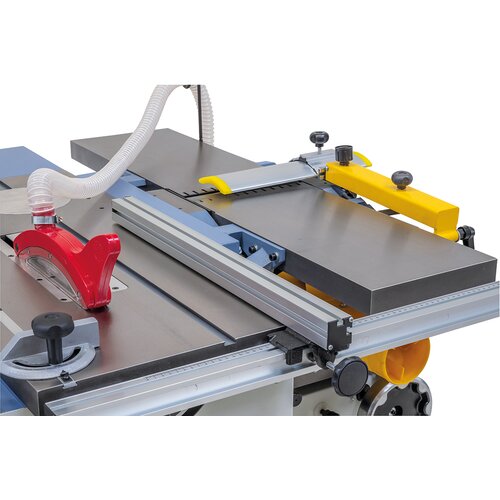

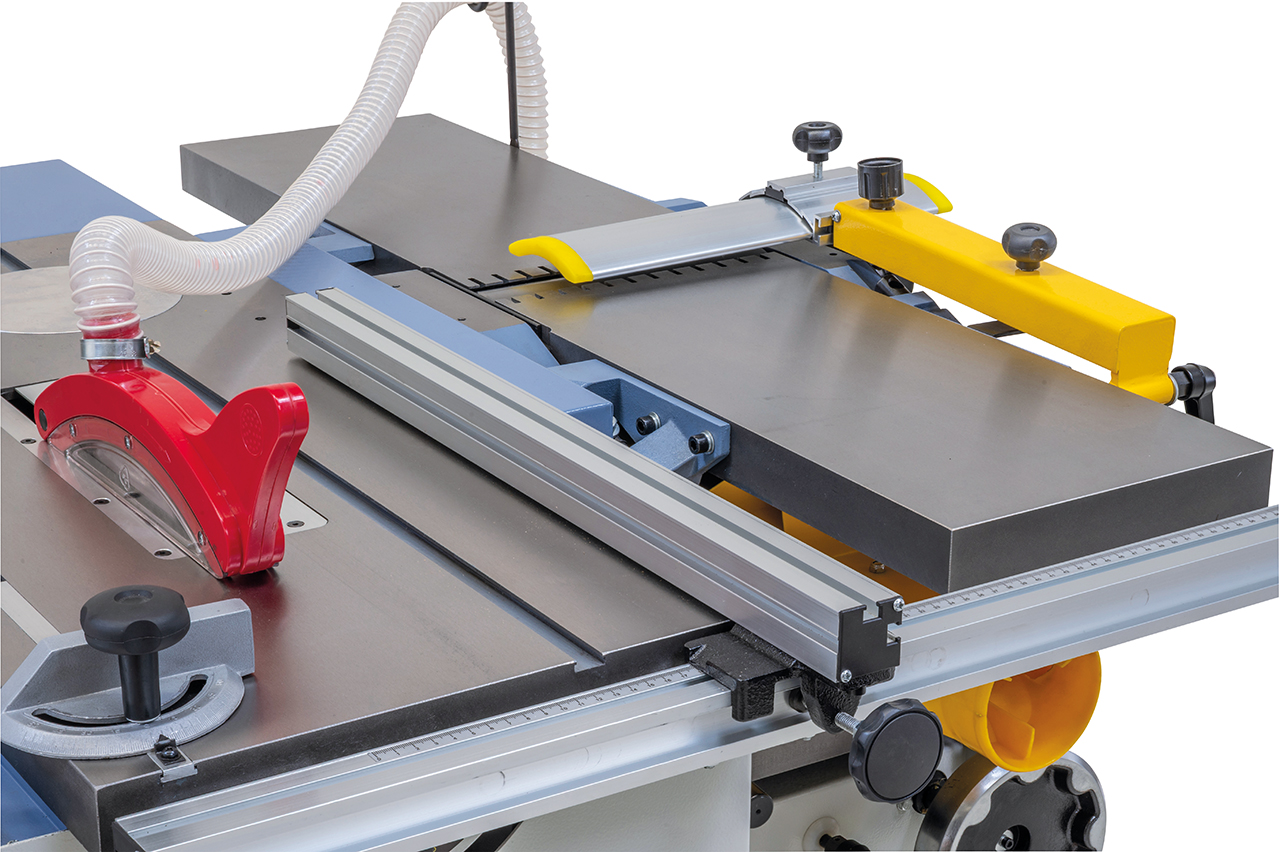

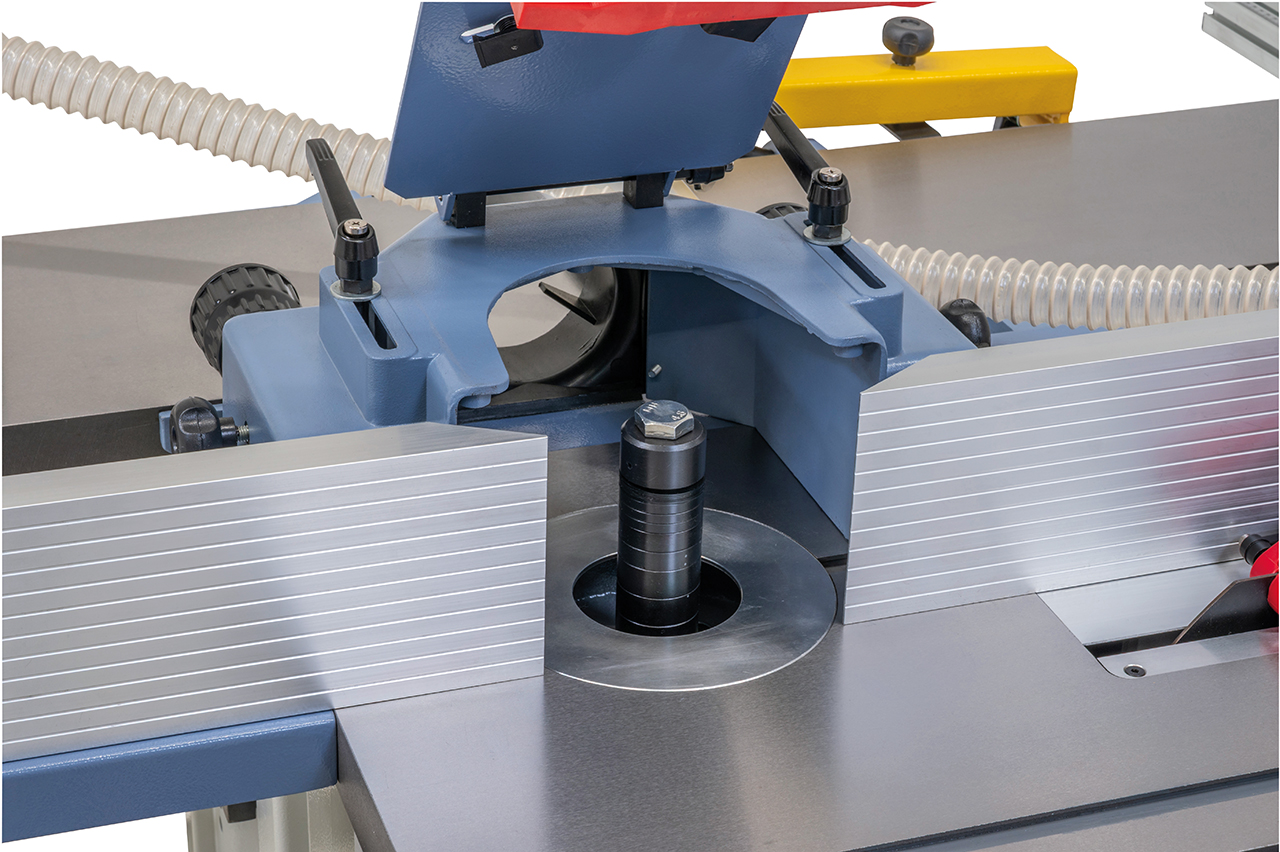

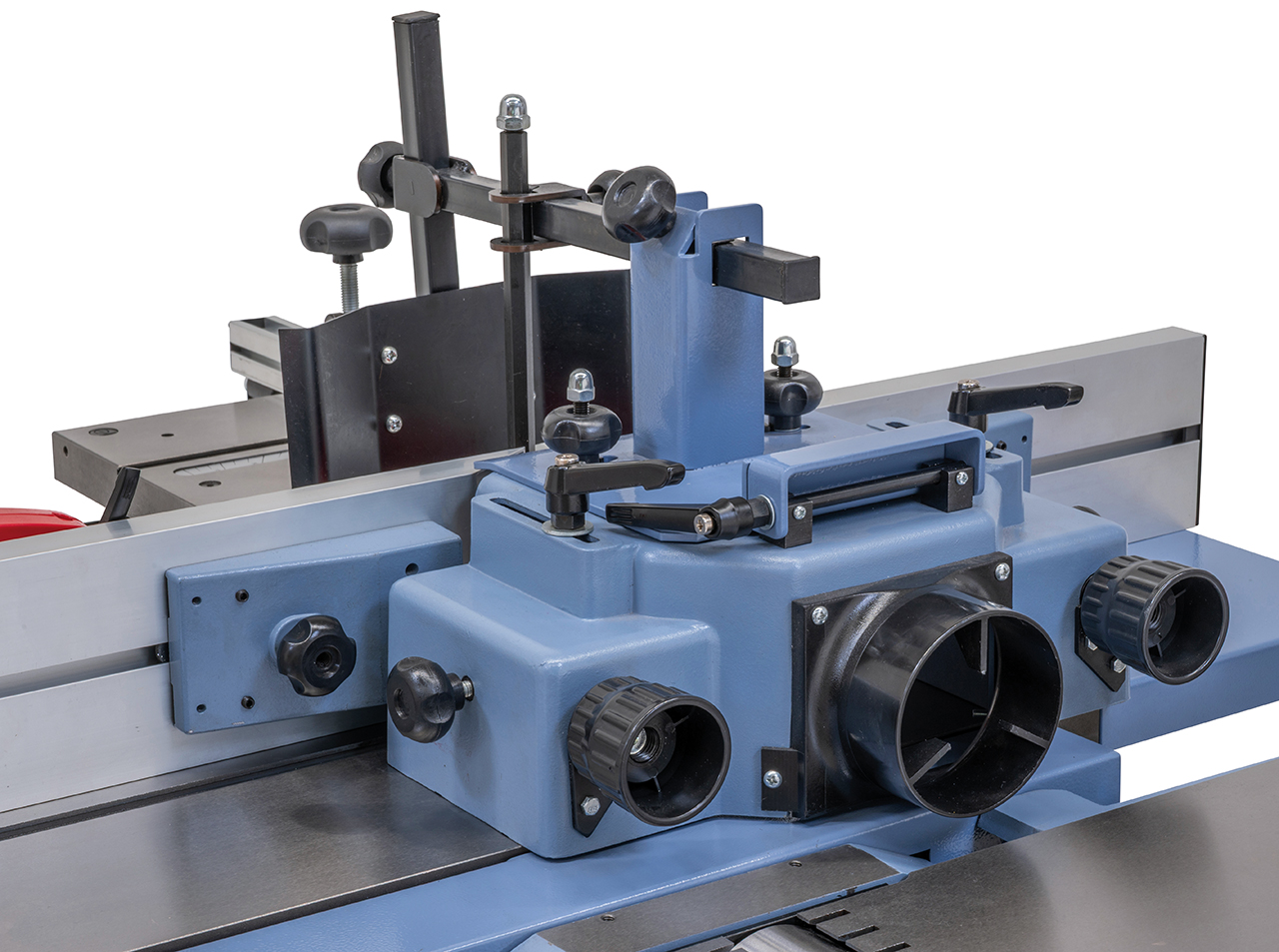

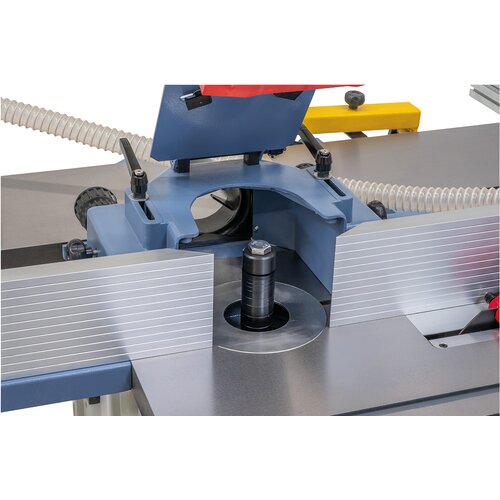

Aluminium fence rails come with fine adjustment and can easily and quickly be adjusted to each milling tool.

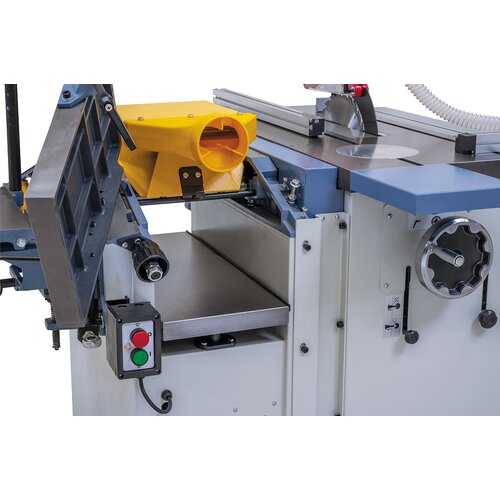

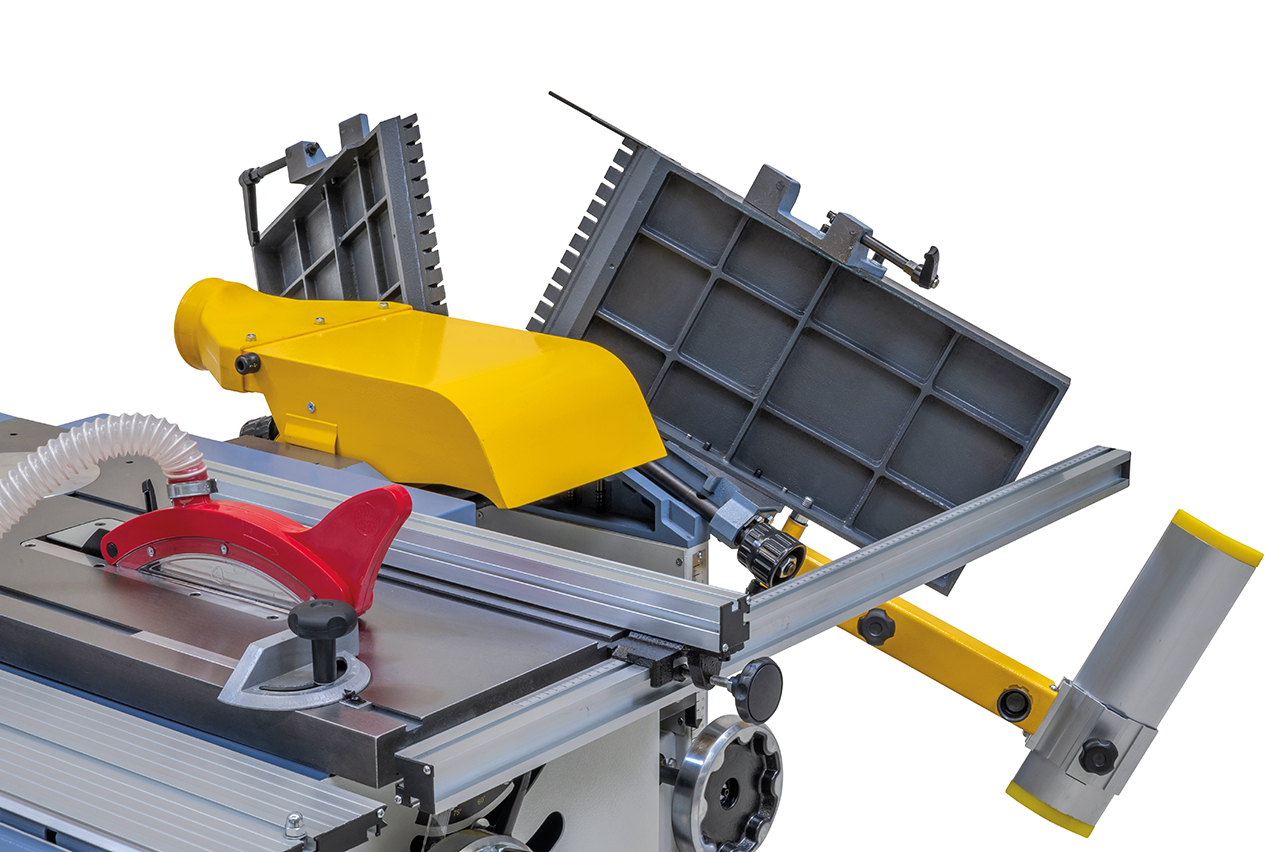

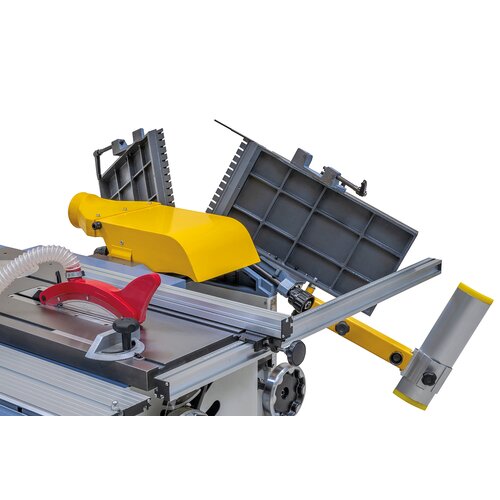

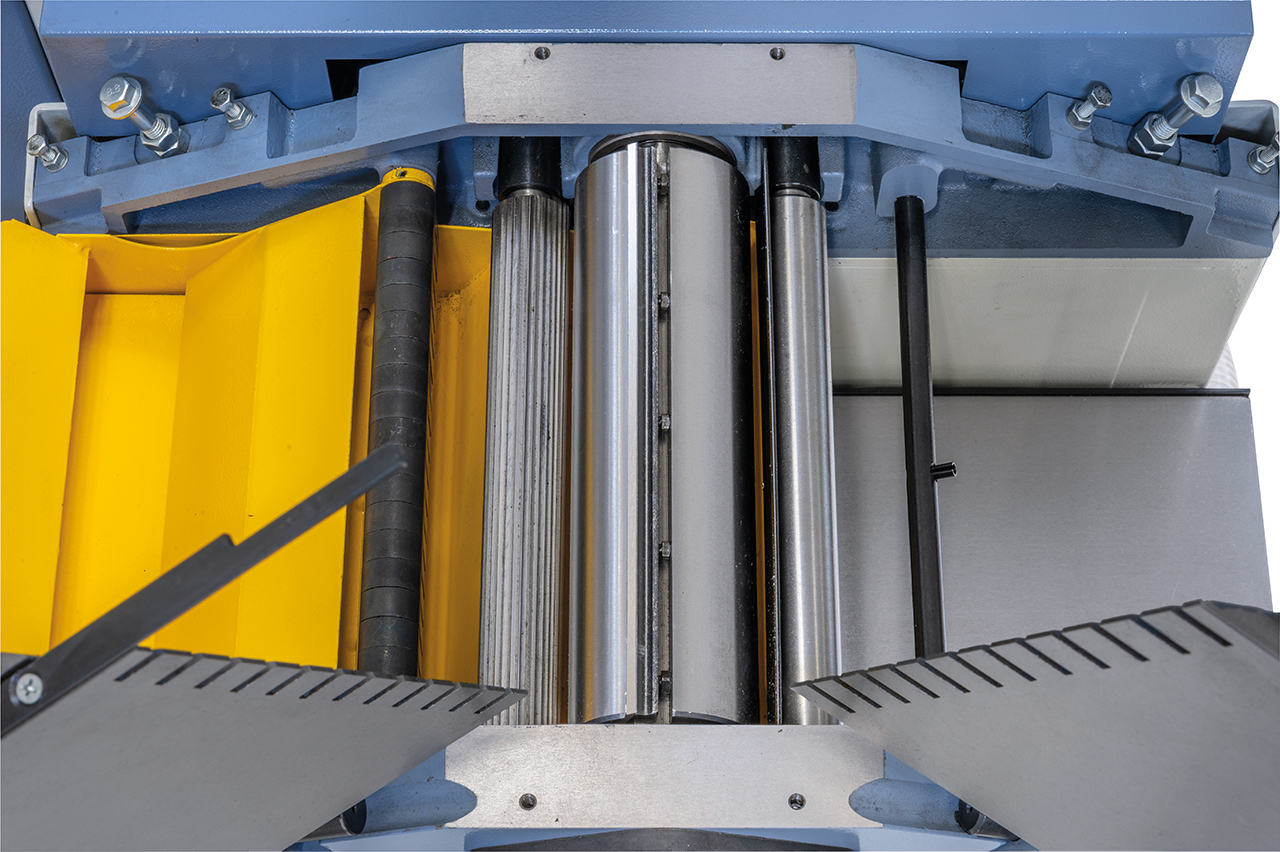

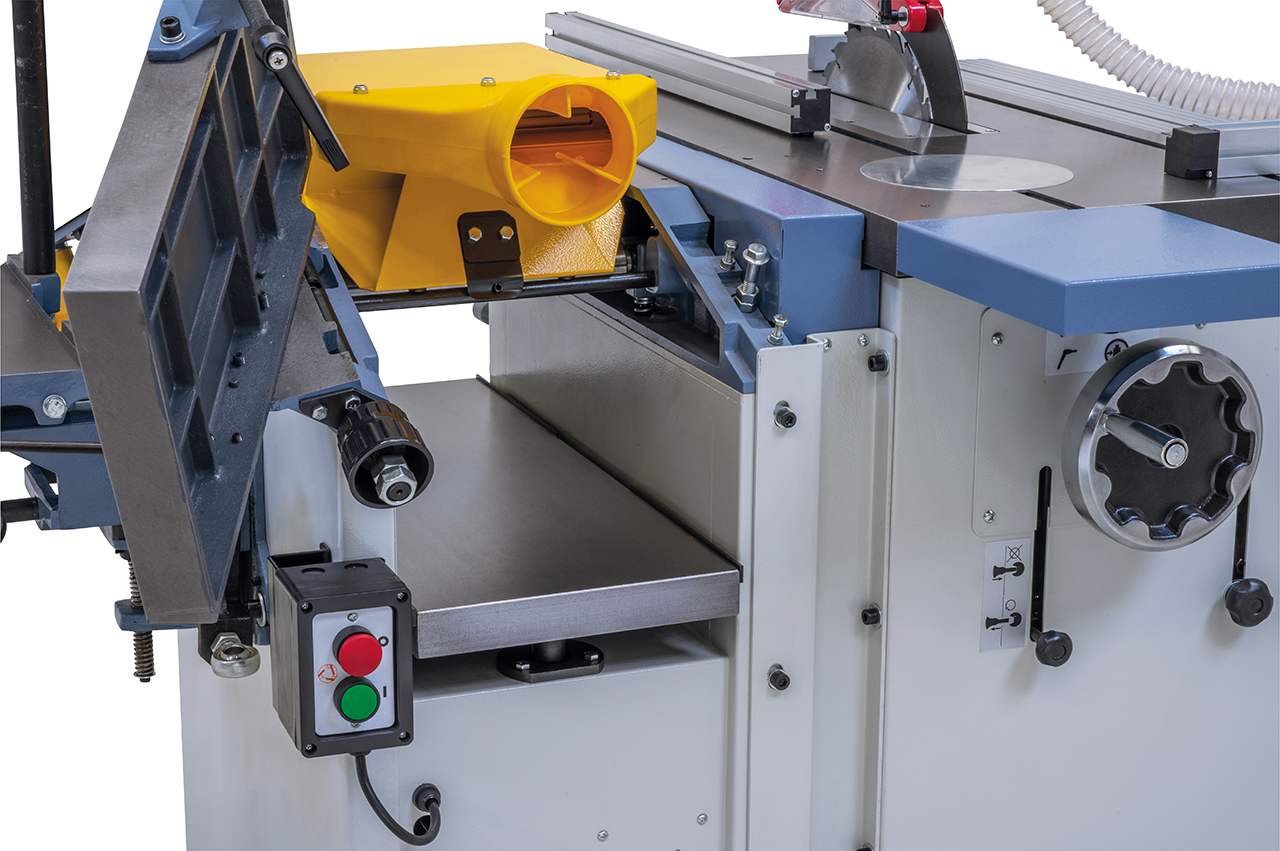

Planer table tilt upright for a simple conversion from planing to thicknessing in a matter of seconds.

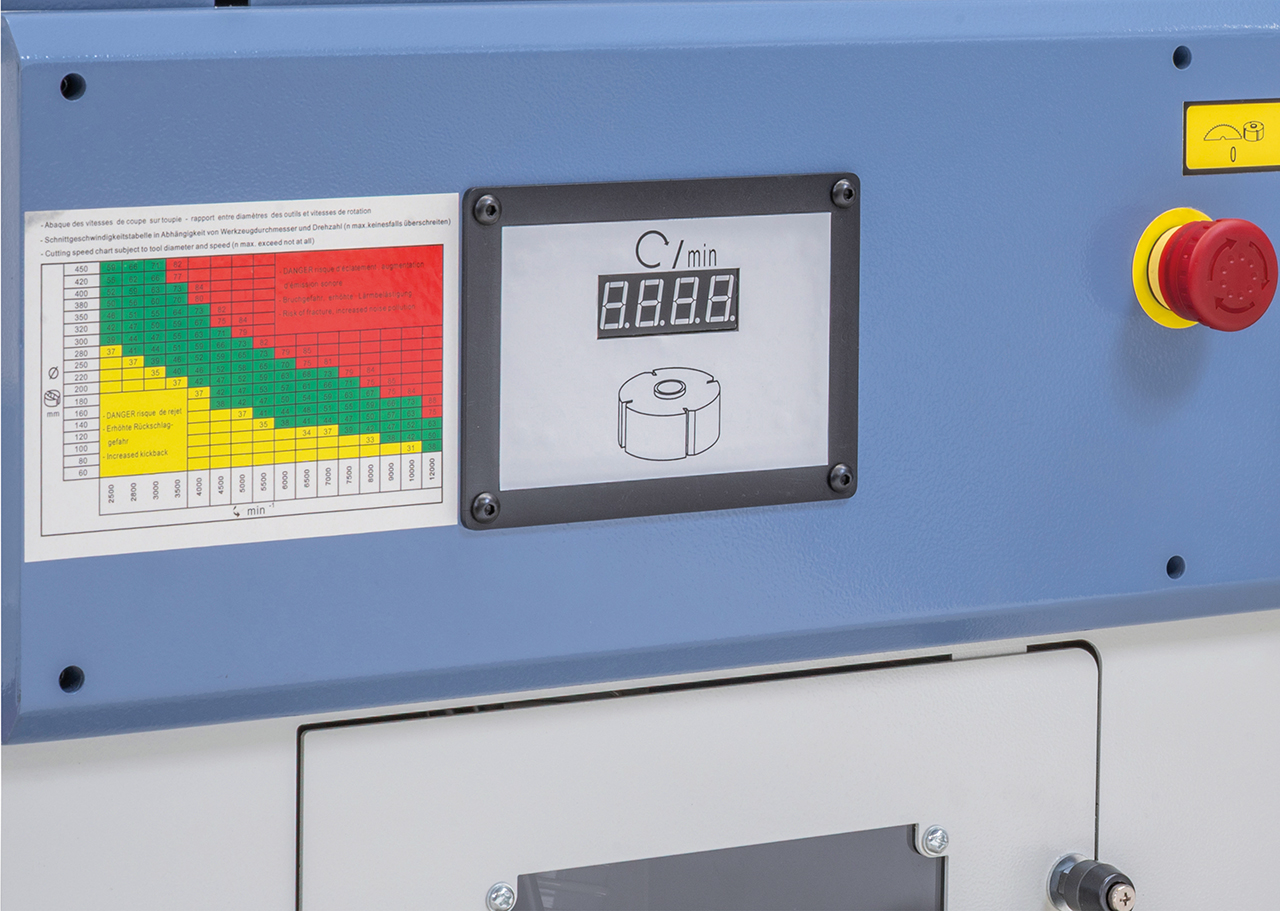

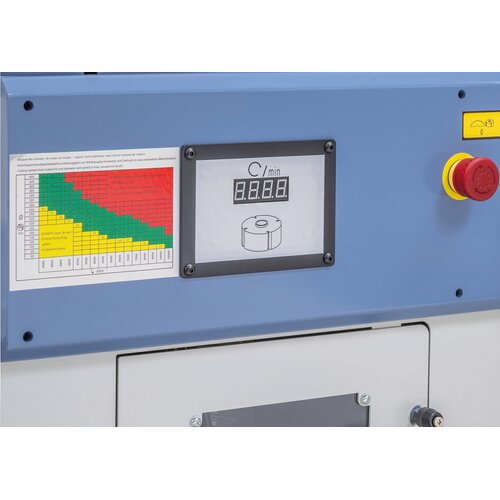

Electronic display of spindle speed settings.

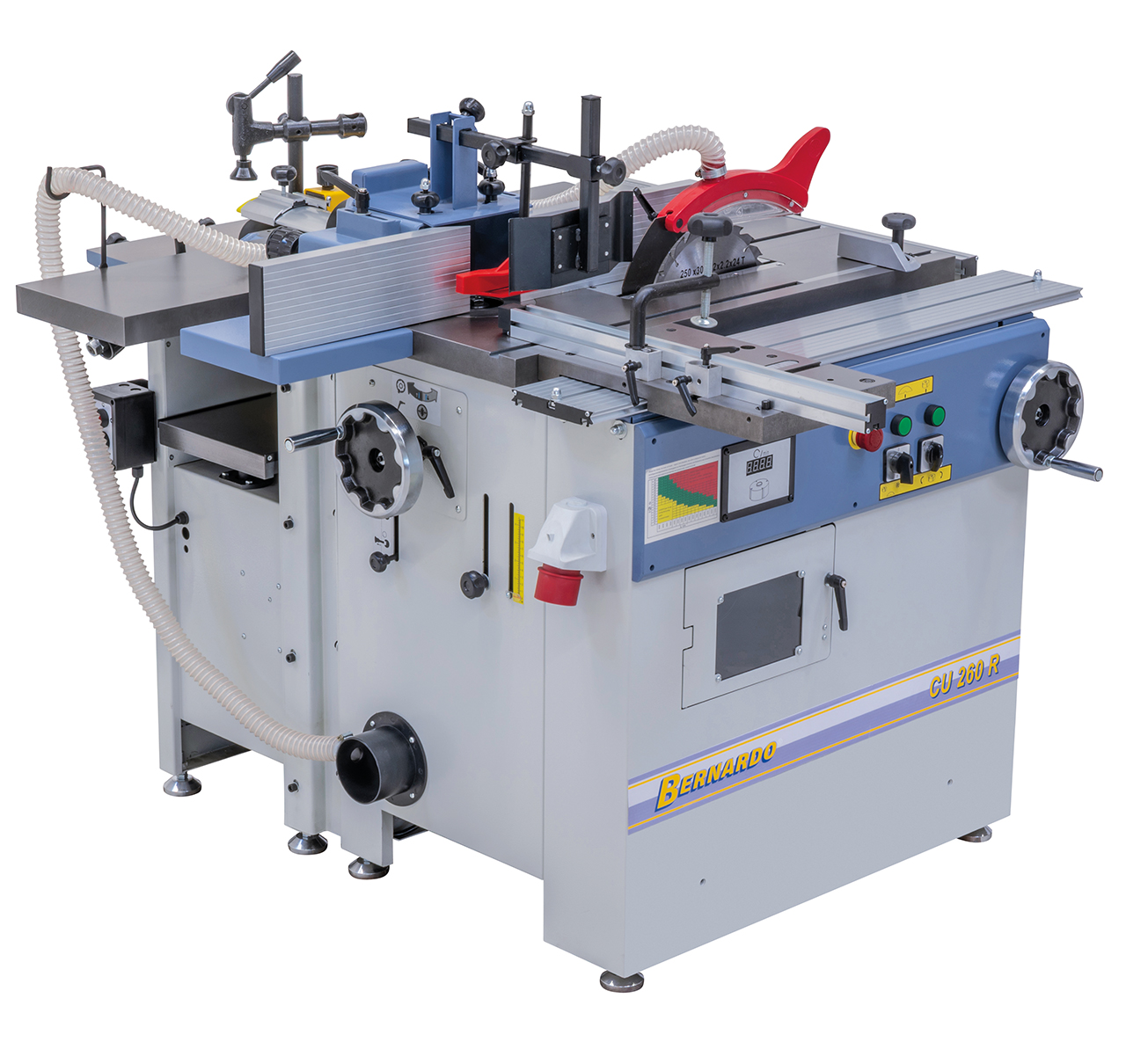

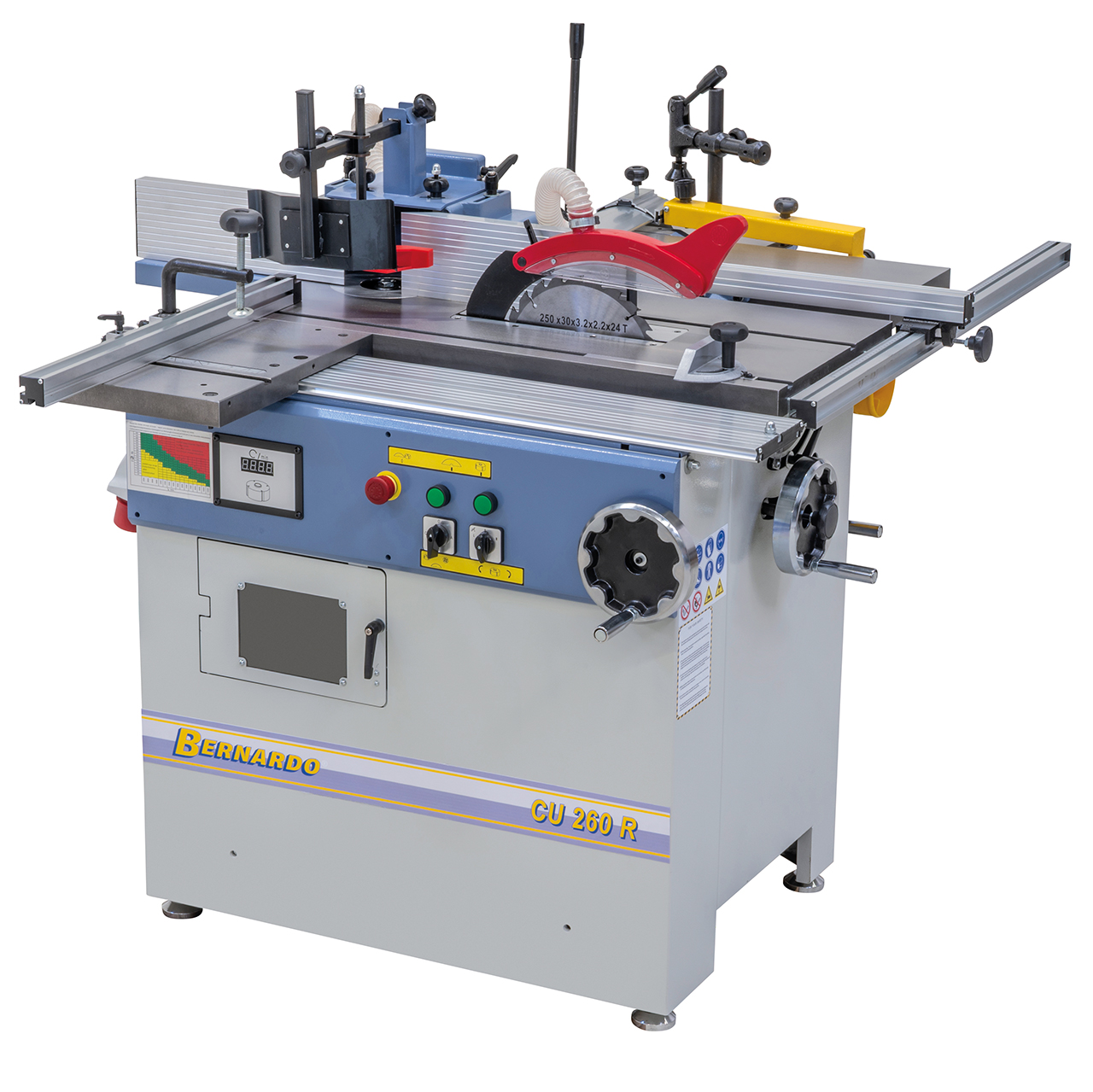

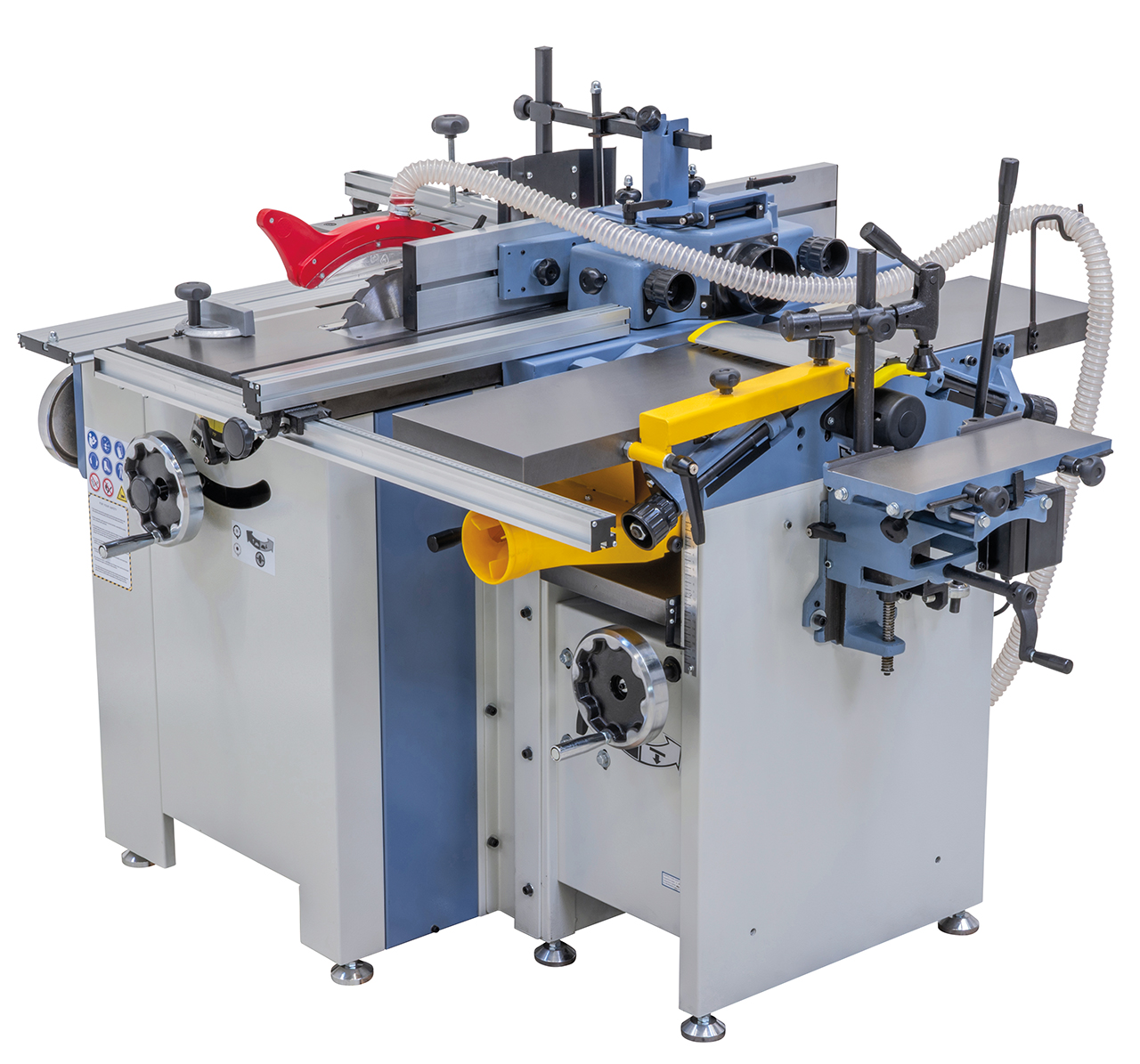

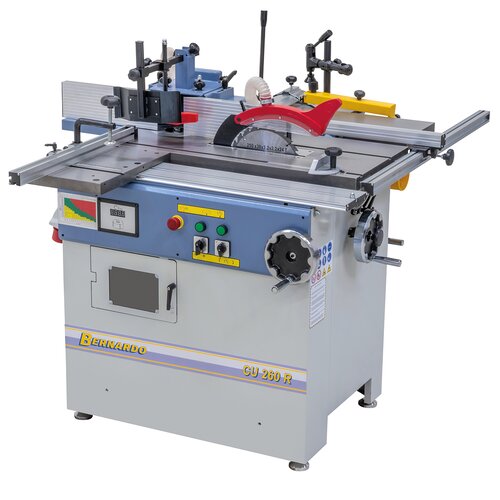

Universal-Kombimaschine CU 260 R / 400 V

Art. No.: 08-1272

Wishlist Comparison List

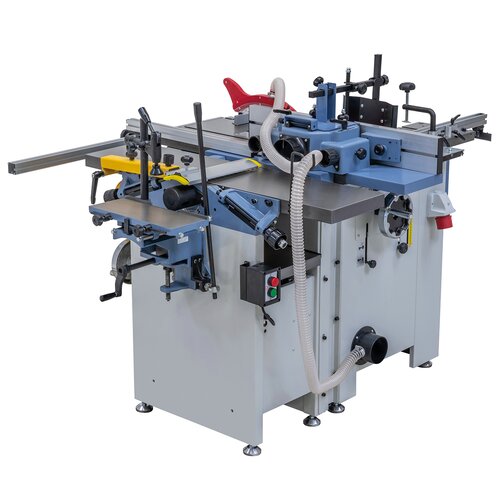

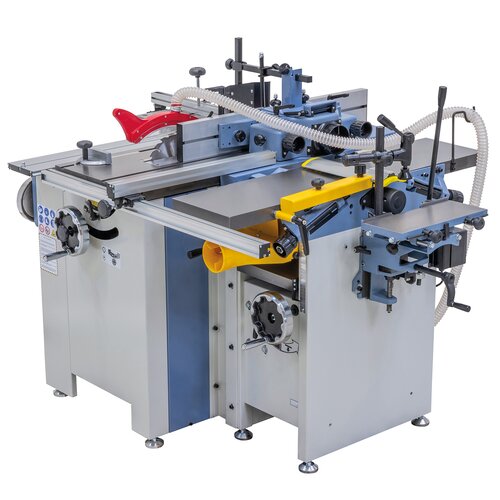

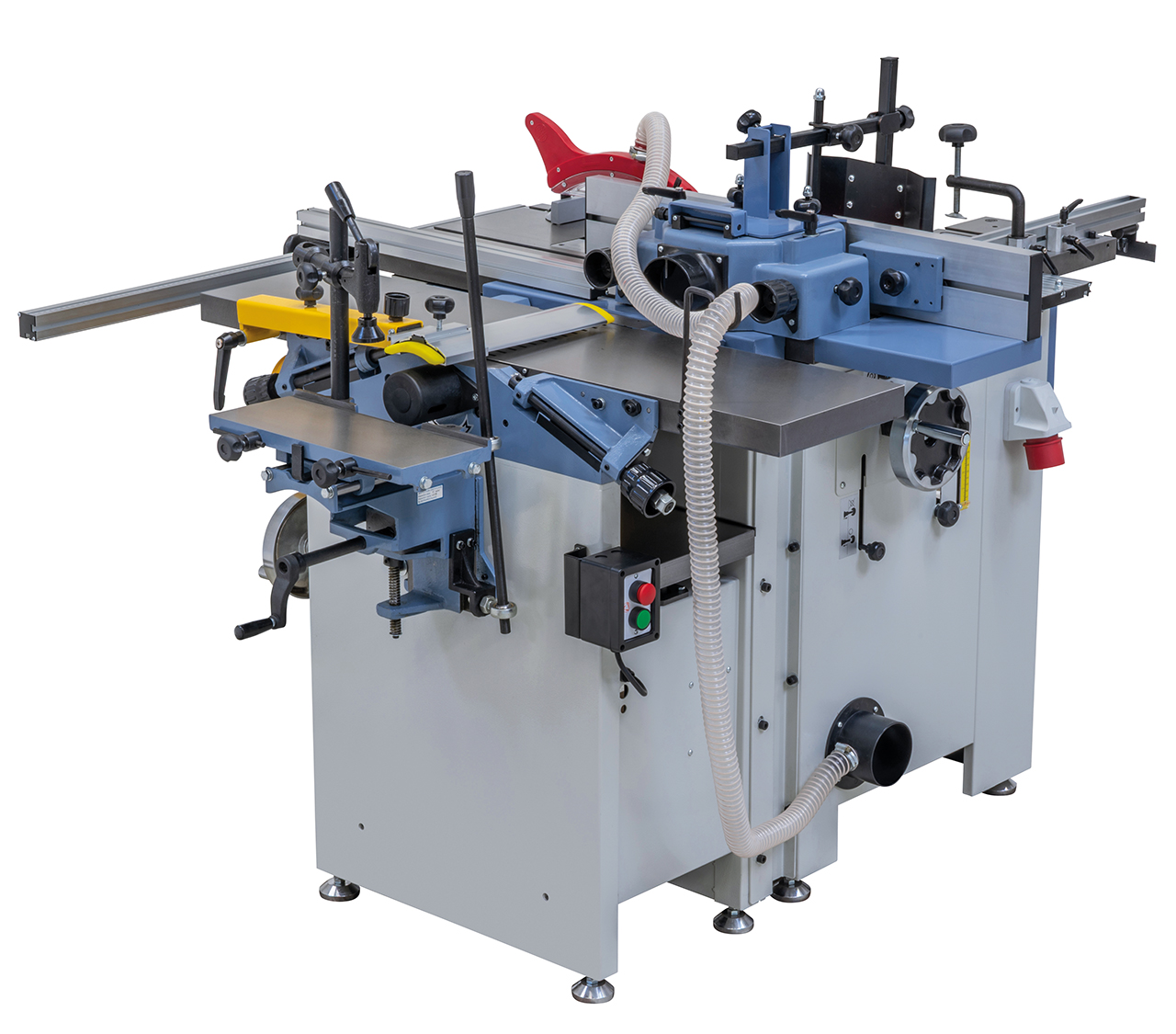

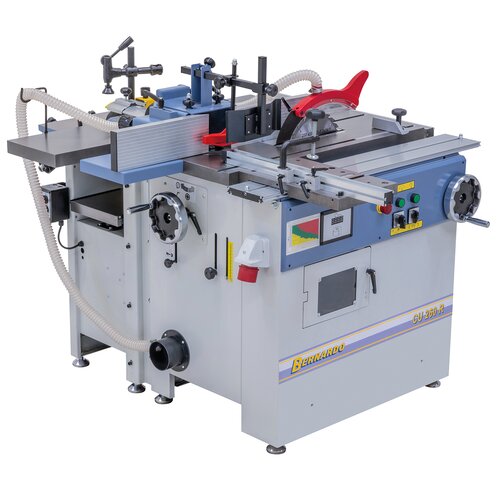

The CU 260 R is a versatile universal combi-machine that come complete with a roller table. Compact construction make this model attractive for craftsmen and amateurs.

3 250,00 €

excl. VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Solid, grey cast-iron table eliminates vibrations, constructed and polished with precision
Optional with mortising unit (16 mm capacity) available

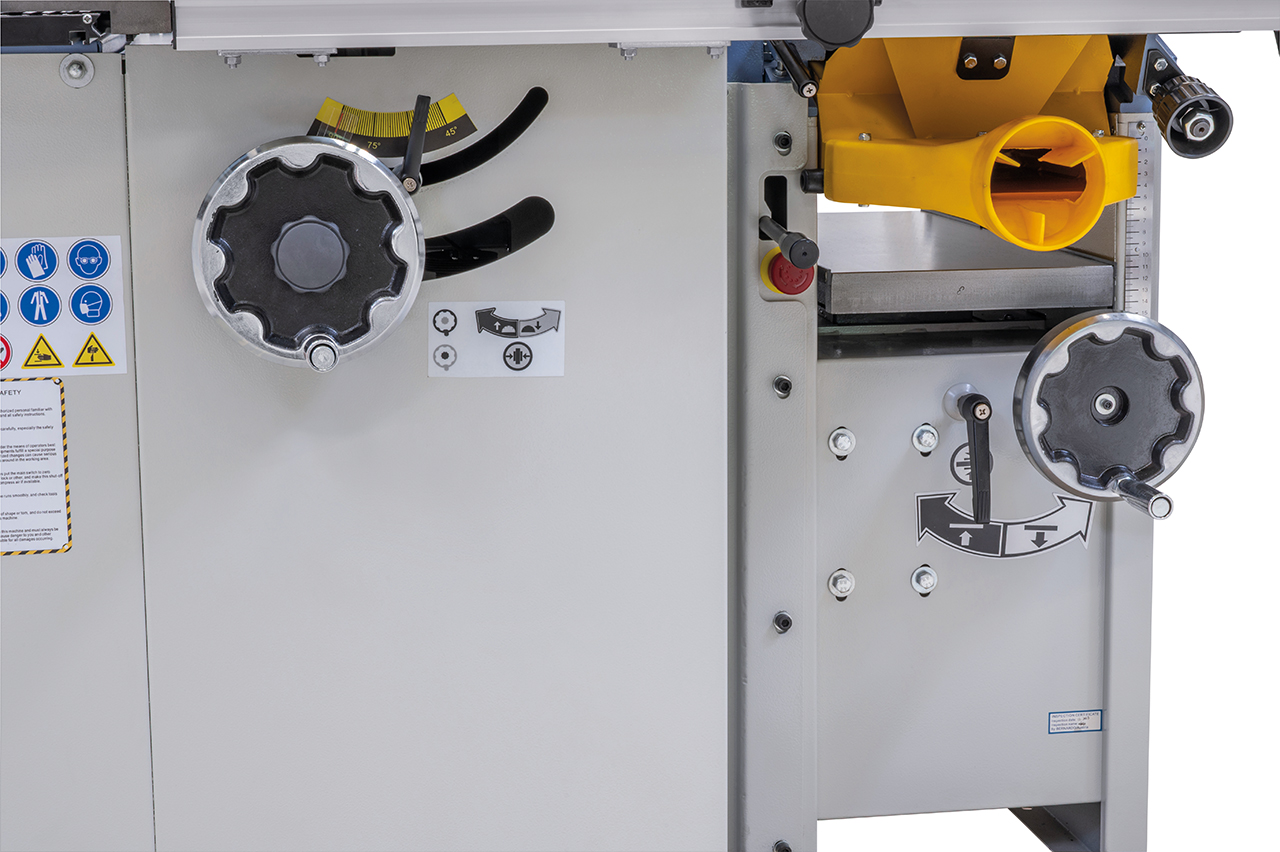

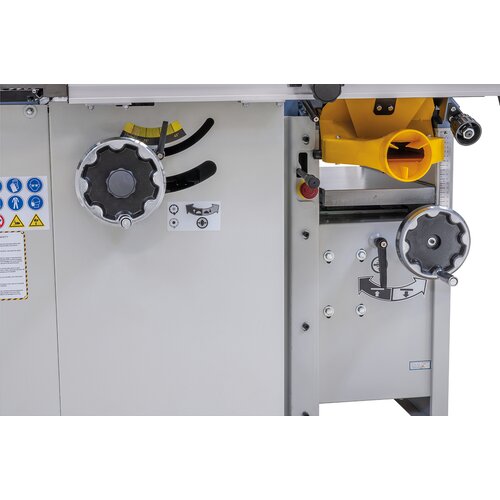

Practically positioned handwheels allow for convenient saw unit adjustment

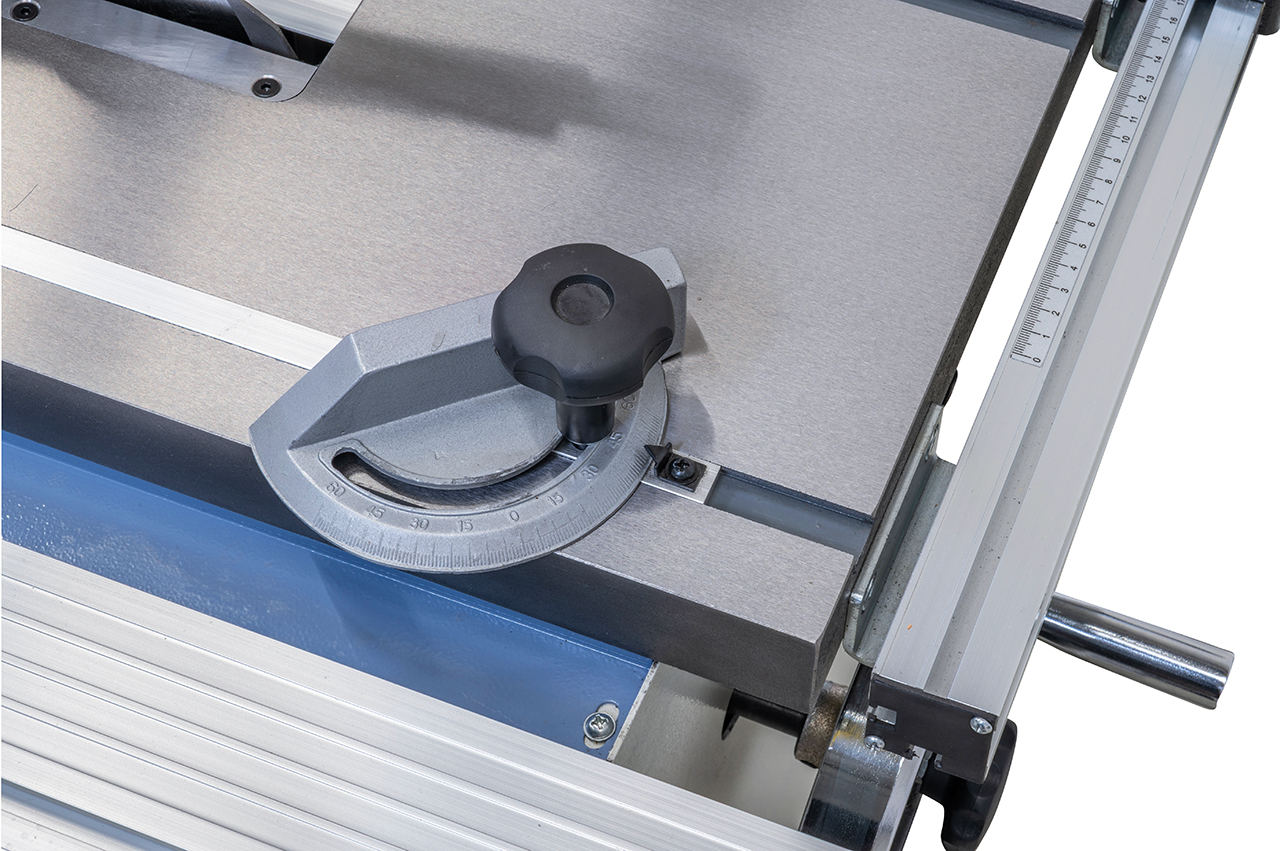

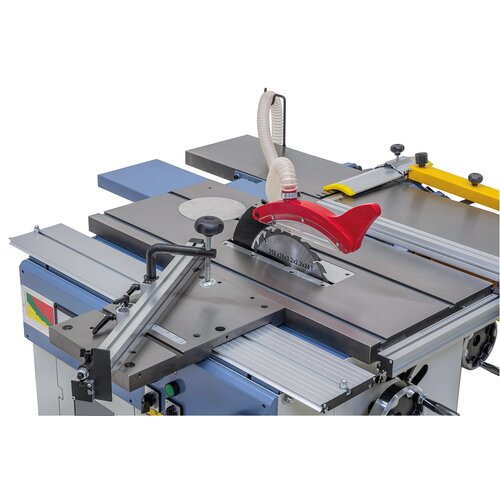

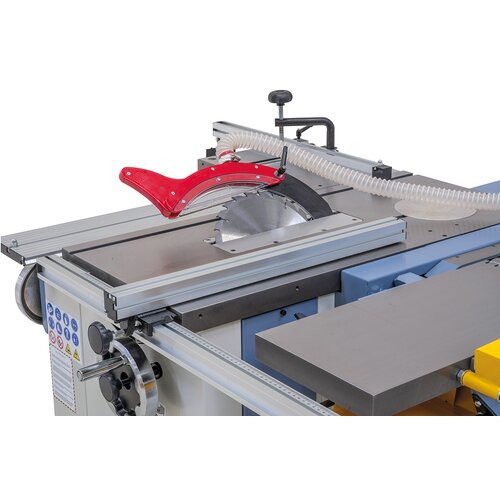

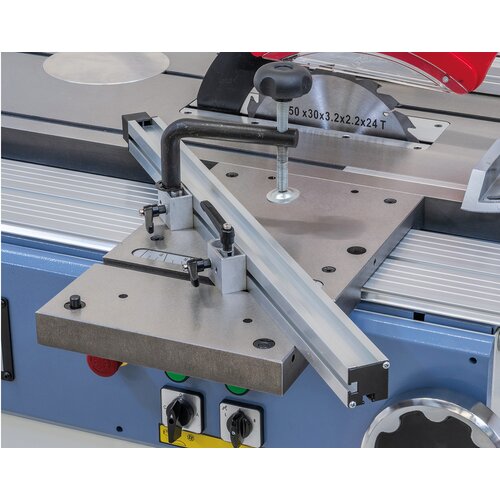

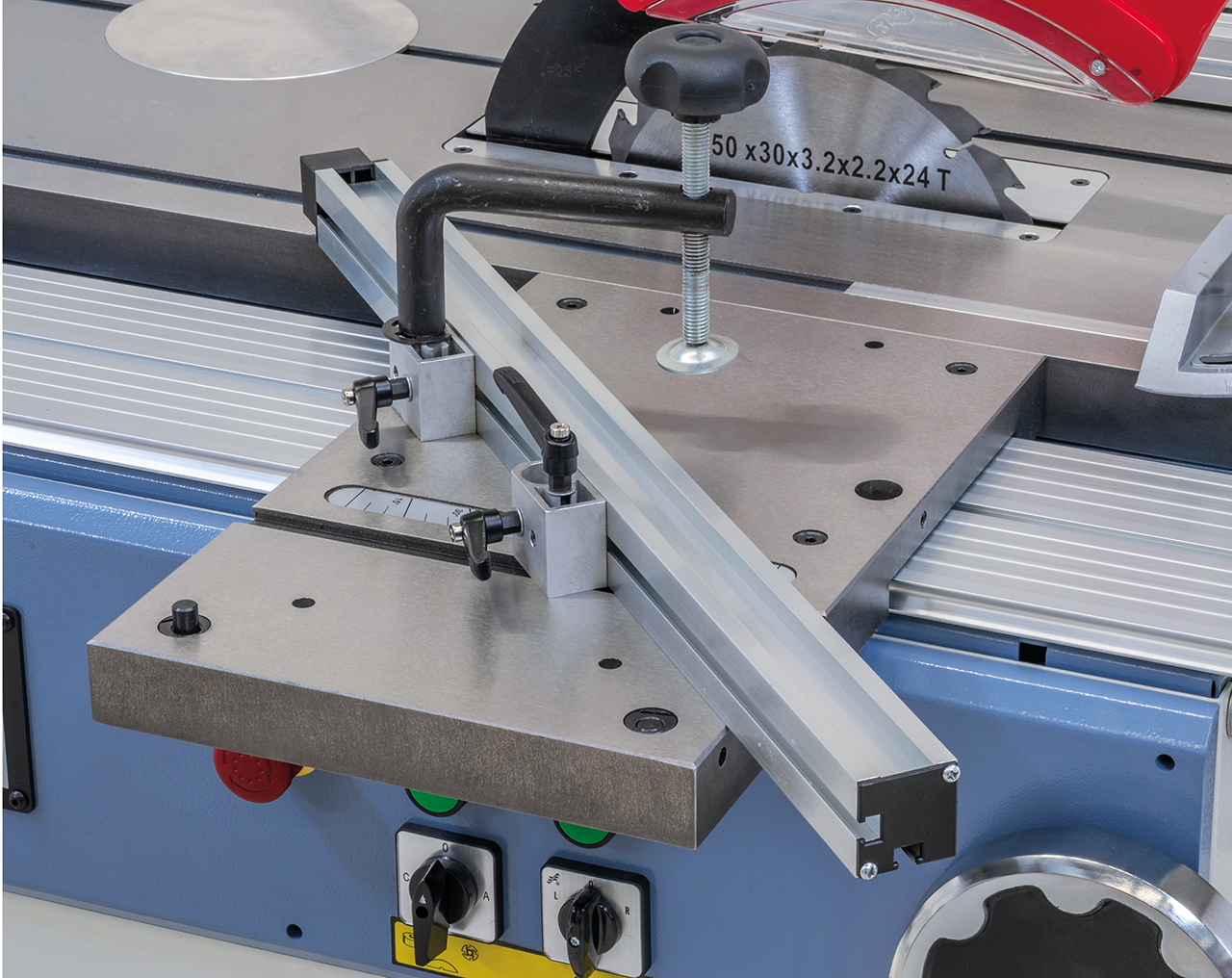

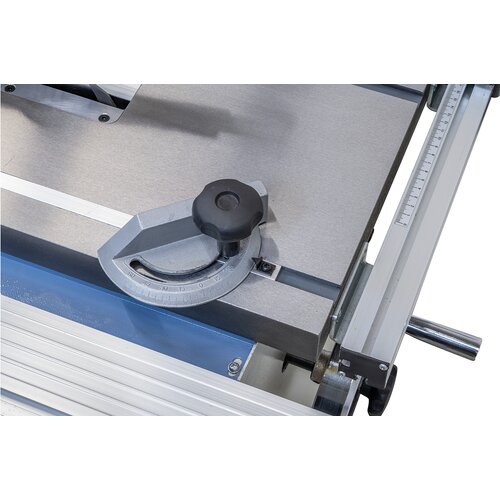

Roller table with aluminium fence ensures high user comfort
Emergency stop button on front of machine increases safety
Integrated, tiltable dust hood when thicknessing, extraction outlet 100 mm
Most suitable for accurate processing of panels, planks, boards etc.

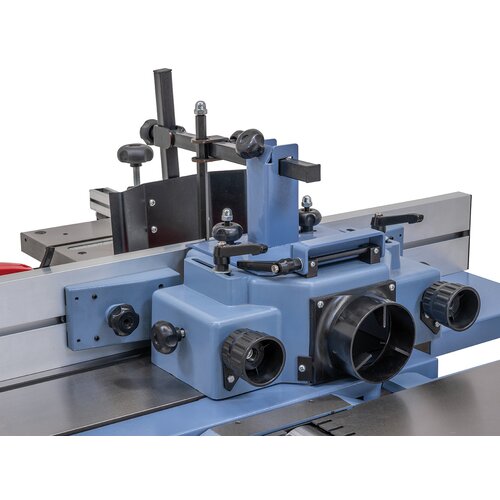

Dynamically balanced moulder spindle ensures for vibration-free run

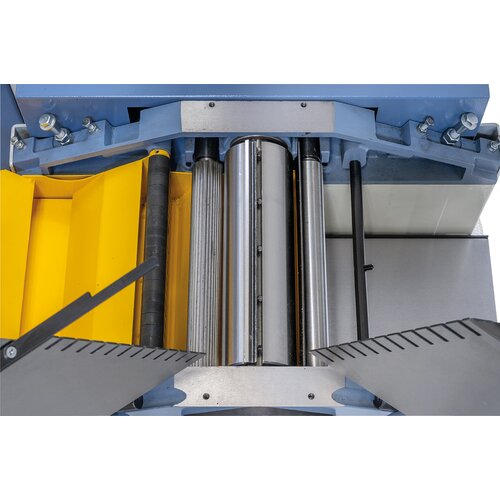

Torsion-free planer table made of reinforced grey cast-iron
Workpiece feed can be switched off when planing

Product Specifications

Planer

Planing width	250 mm
Table length	1090 mm
Table height	865 mm
Shaft rotation speed	4000 rpm
Cutter knives	3 pcs.
Planer shaft diameter	75 mm
Planer fence	720 x 130 mm
Fence tiltable	90° to 45°
Max. cutting depth	5 mm
Motor power output S1 100%	2,0 kW (2,7 HP)
Motor power input S6 40%	2,8 kW (2,5 HP)

Thicknesser

Table length	600 mm
Working width	250 mm
Working thickness, min/max.	5 - 185 mm
Max. cutting depth	1,8 mm
Feed speed	8 m/min
Dust extraction outlet	100 mm

Mortising unit (optional available)

Table size	370 x 150 mm
Westcott drill chuck	0 - 16 mm
Max. drill depth	90 mm
Drill width	160 mm
Height adjustment	85 mm

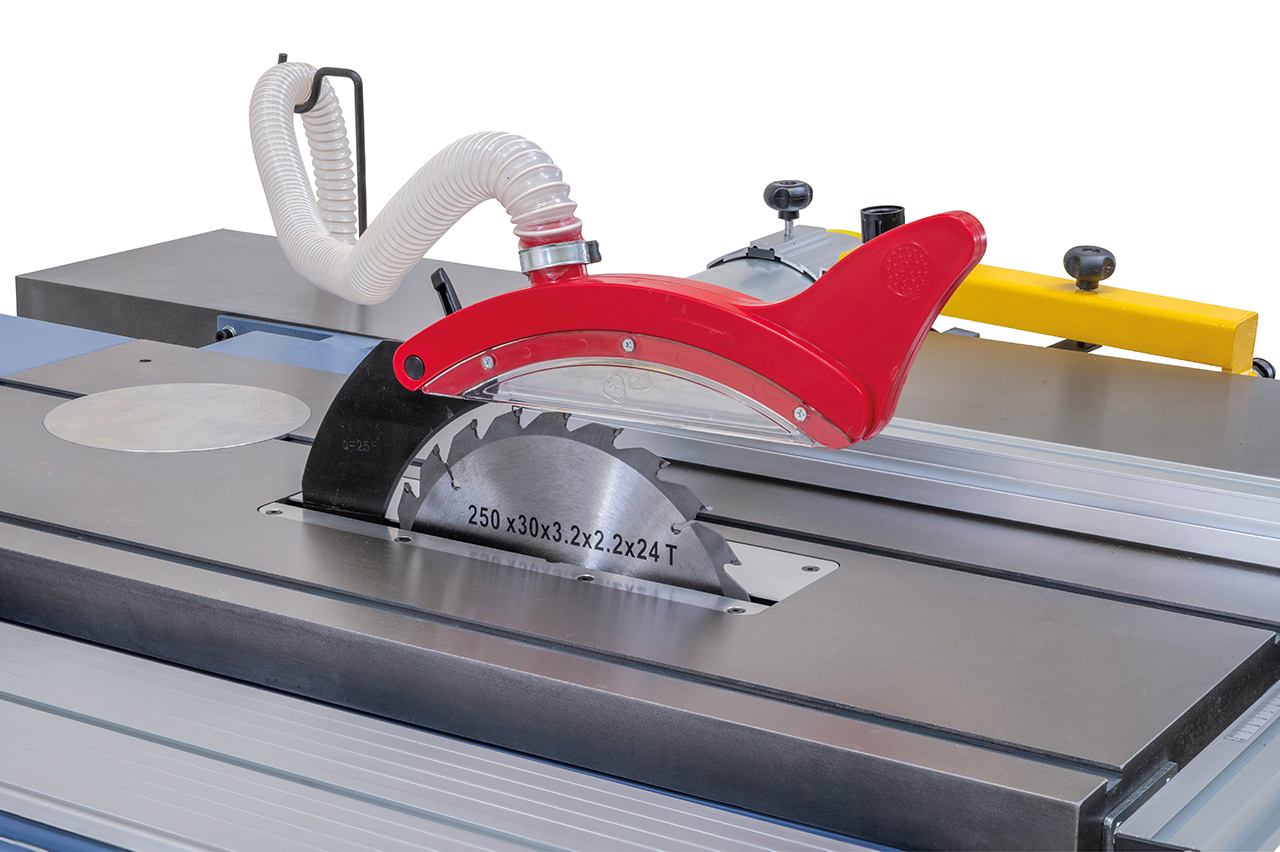

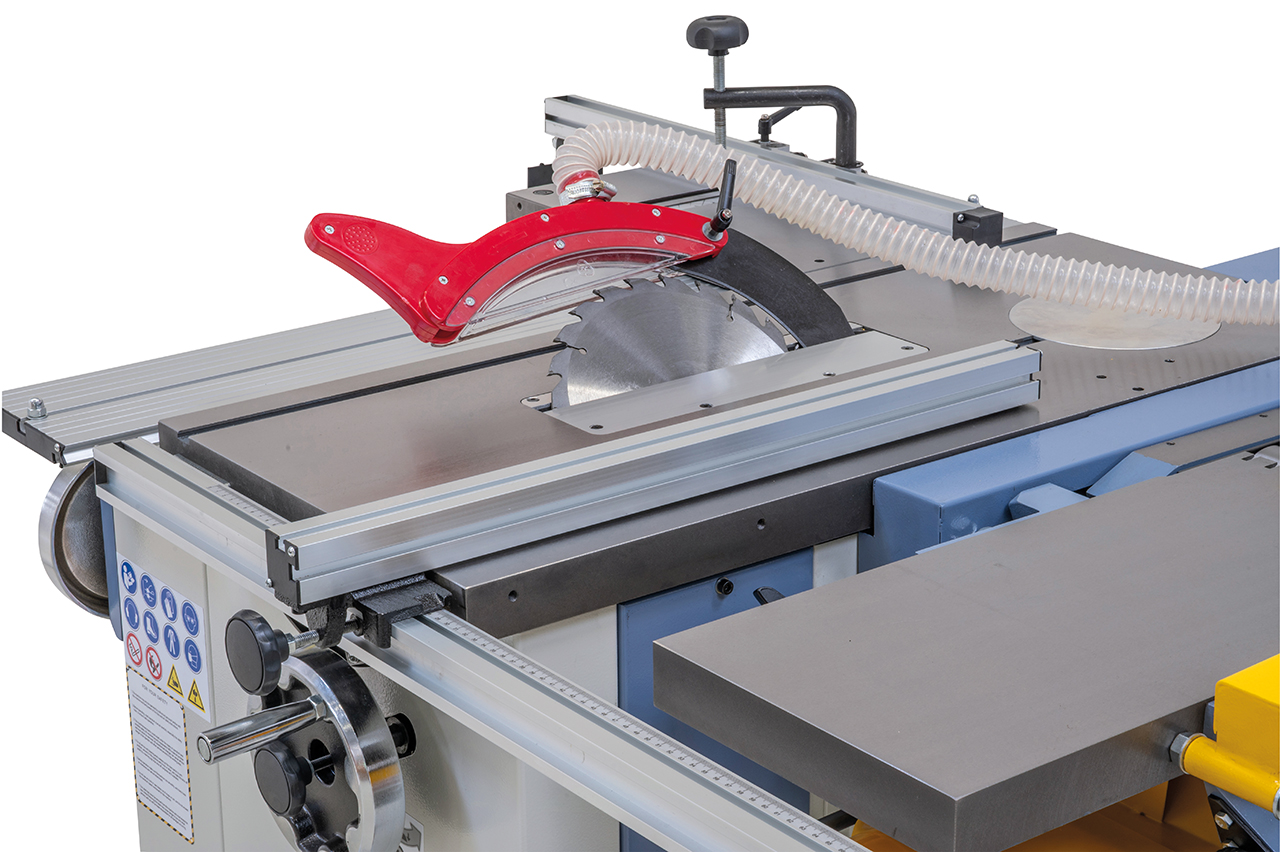

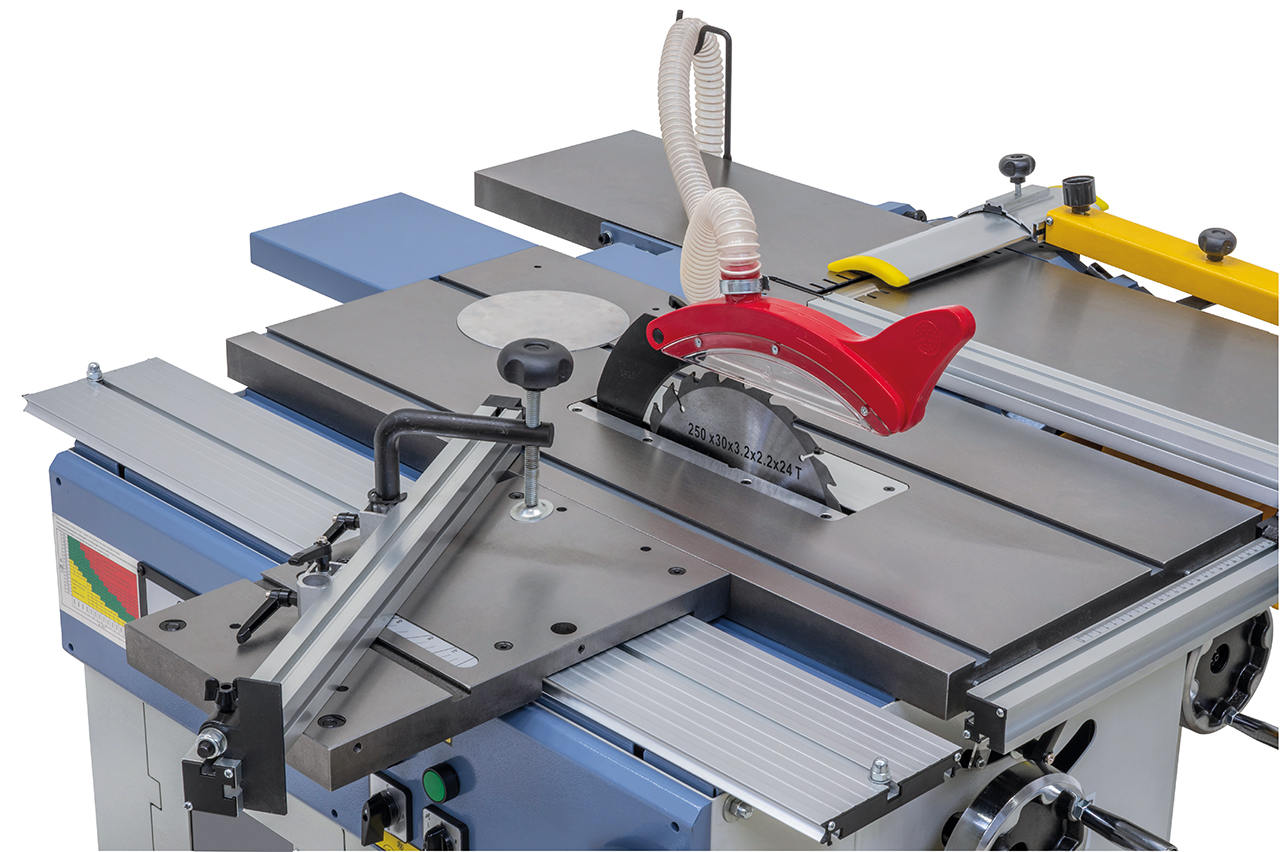

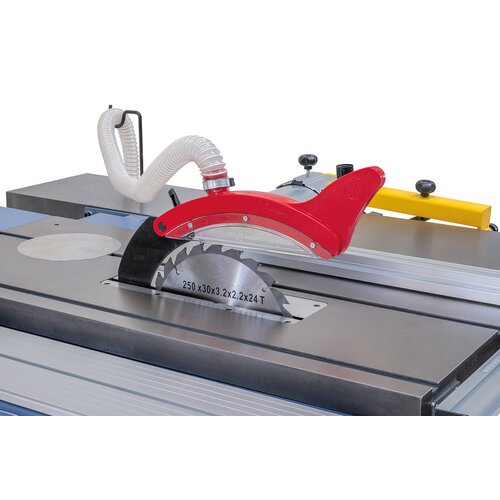

Circular saw

Table size	900 x 410 mm
Table height	865 mm
Roller table	400 x 250 mm
Cutting length	710 mm
Max. sawblade diameter	250 x 30 mm
Max. cutting height 90° / 45°	80 / 60 mm
Cutting width on rip fence	820 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S1 100%	2,2 kW (1,5 HP)
Motor power input S6 40%	3,0 kW (4,0 HP)

Spindle moulder

Spindle diameter	30 mm
Height adjustment	110 mm
Table opening	170 mm
Working length of spindle	90 mm

Max. tool diameter

- at profiling	150 mm
- at tenoning	150 mm
Spindle speed	1400 / 4000 / 6000 / 8000 rpm
Motor power output S1 100%	1,5 kW (2,0 HP)
Motor power input S6 40%	2,1 kW (2,8 HP)
Voltage	400 V
Machine dimension (W x D x H)	1300 x 1630 x 1150 mm
Weight approx.	310 kg
