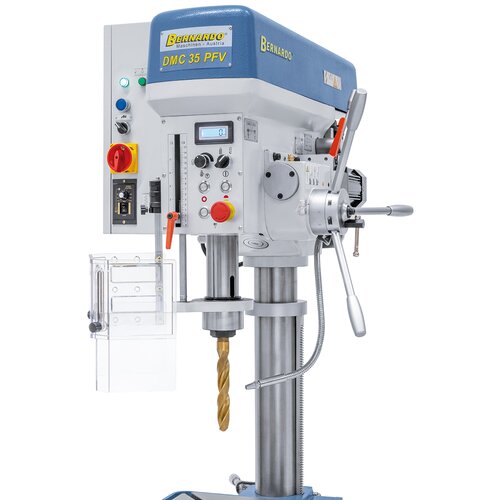

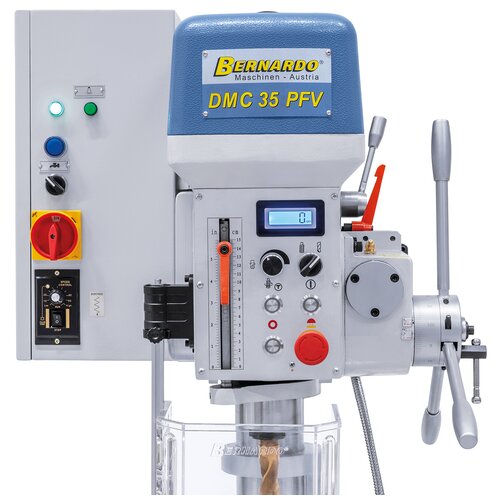

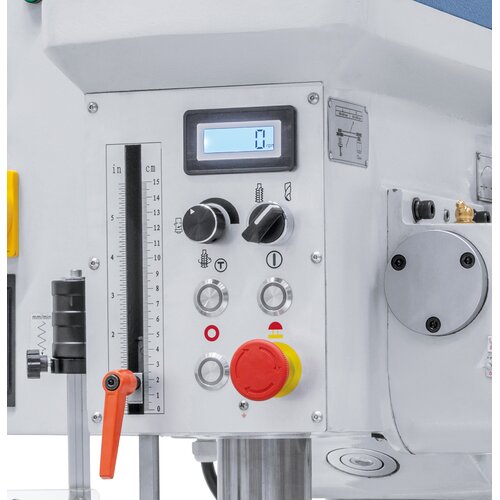

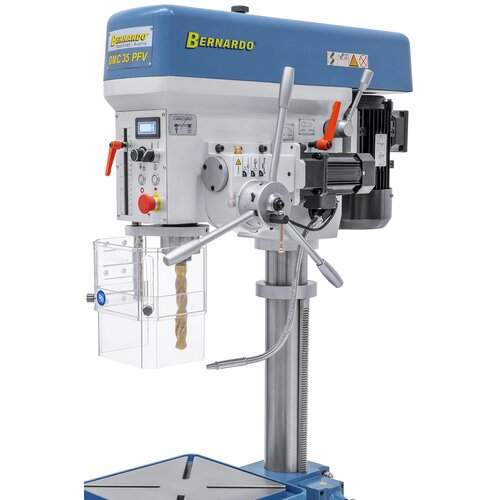

Serially equipped with digital speed indication. Ergonomically arranged control elements at the front.

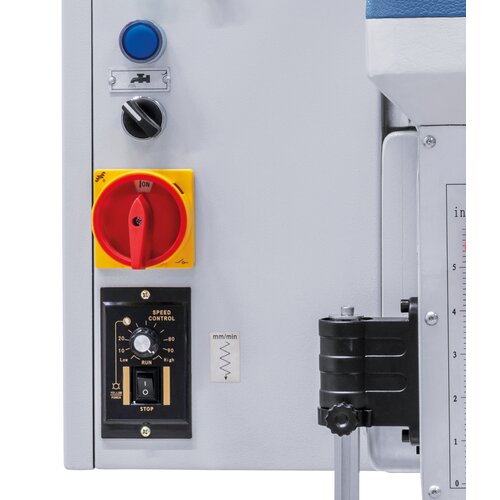

The desired feed speed is set using a potentiometer.

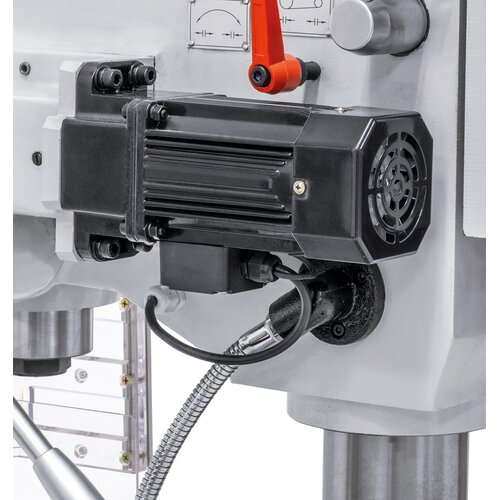

Stepless adjustable spindle feed with separate drive motor

Sloupová vrtačka DMC 35 PFV

product.detail.art-no: 01-11873

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

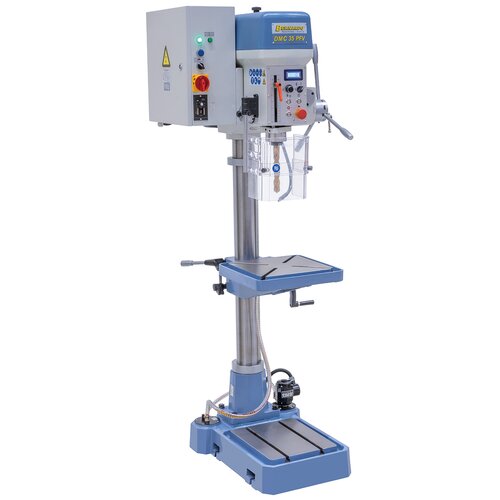

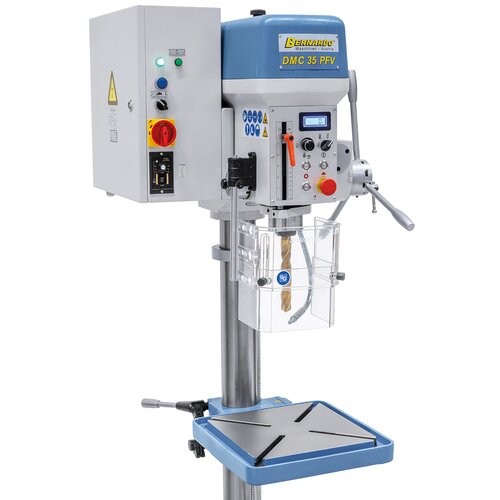

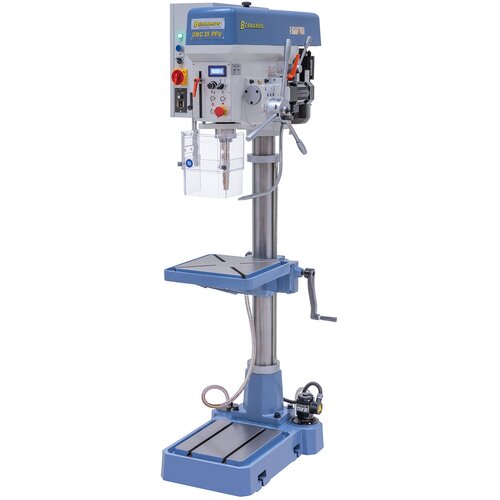

The DMC 35 PFV column drilling machine is equipped with a thread cutting device and an automatic drill feed as standard. The stepless speed adjustment enables optimum adjustment of the cutting speed to the workpiece.

3 588,00 €

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Protective cover in accordance to CE standards, adjustable to various drill bit sizes
Surface treated work table, height adjustable via gear rack and crank

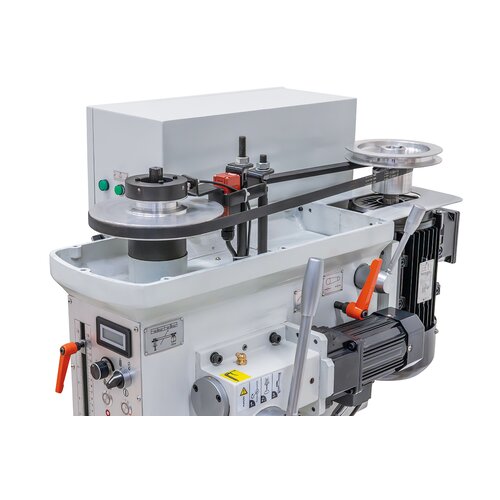

Stepless speed setting allows optimal adjustment of cutting speed
Precisely treated base includes T-slots and integrated coolant device
Serially with automatic spindle feed
Adjustable drill depth stop allows accurate spindle feed
High concentricity ≤ 0,02 mm measured at spindle
Powerful motor even at continuous operation
Solid and powerful drilling machine for high demands
Including automatic reverse rotation for thread cutting

Product Specifications

Drilling capacity max.	32 mm
Thread cutting max.	M 24
Morse taper	MT 3
Spindle speed, stepless	100 - 620 / 620 - 3300 rpm
Distance spinle to column	265 mm
Distance spindle to table max.	815 mm
Distance spindle to base	1240 mm
Spindle stroke	150 mm
Spindle feed	0 - 100 mm/min
Column diameter	100 mm
Table size / T-slot size	332 x 332 mm / 14 mm
Working surface of base	382 x 312 mm
Motor power output S₁ 100%	1,5 kW / 400 V
Motor power input S₆ 40%	2,2 kW / 400 V
Machine dimension (W x D x H)	600 x 940 x 1900 mm
Weight approx.	331 kg
