Availability
In Stock
Deliverable in 2-3 business days
Product Properties
- Including 9 pcs. punching dies for driving and planing sheets of steel, aluminum, brass, copper, ....

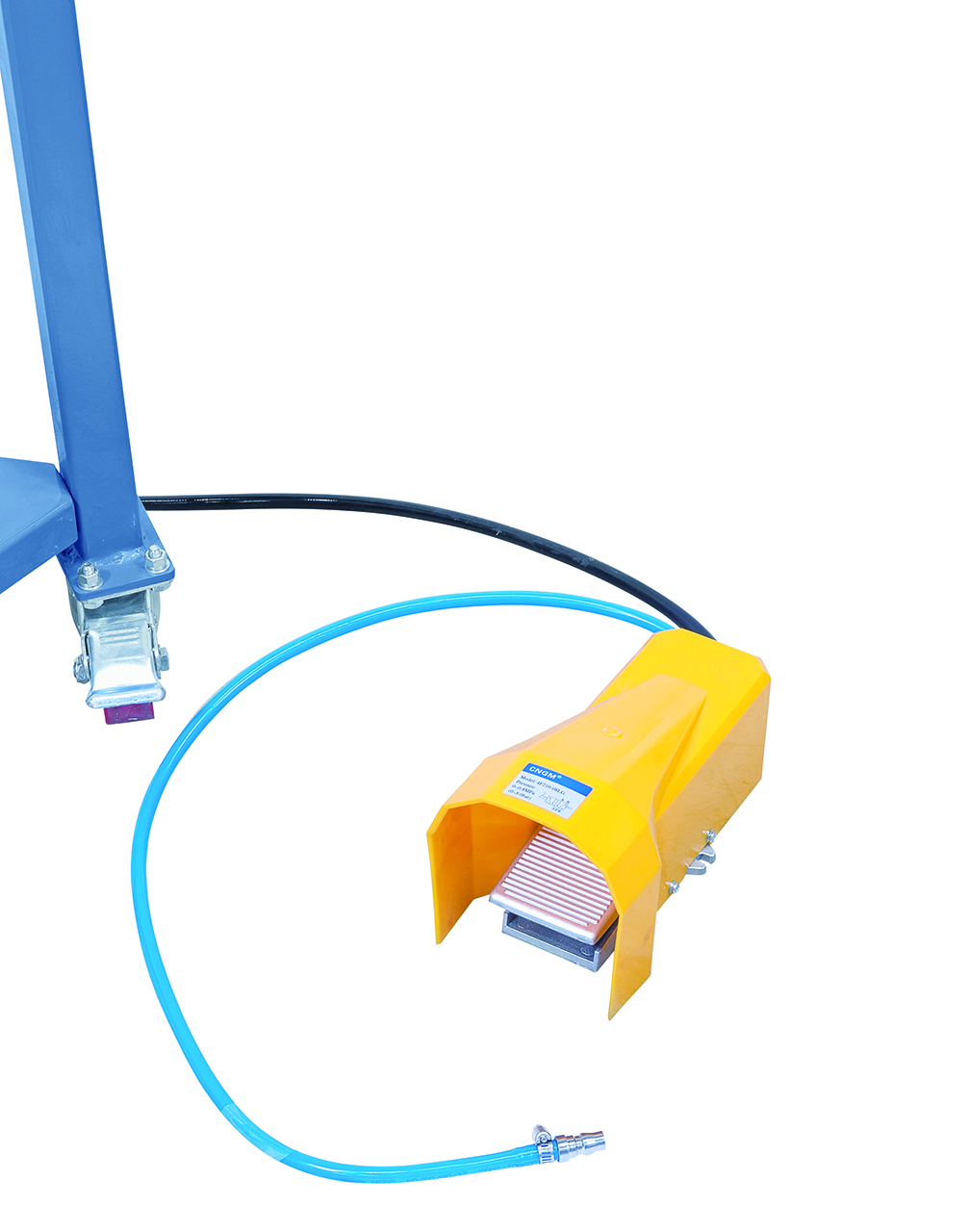

- The standard foot pedal keeps hands free for the workpiece

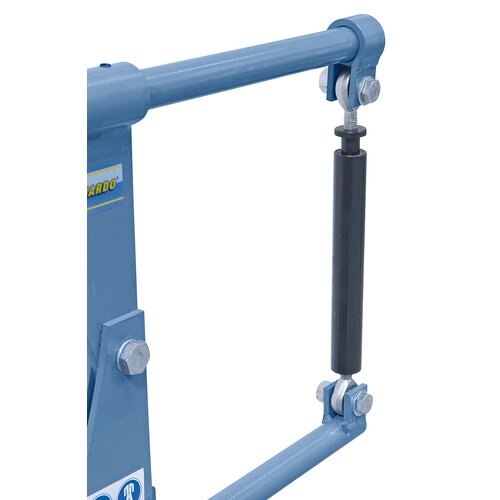

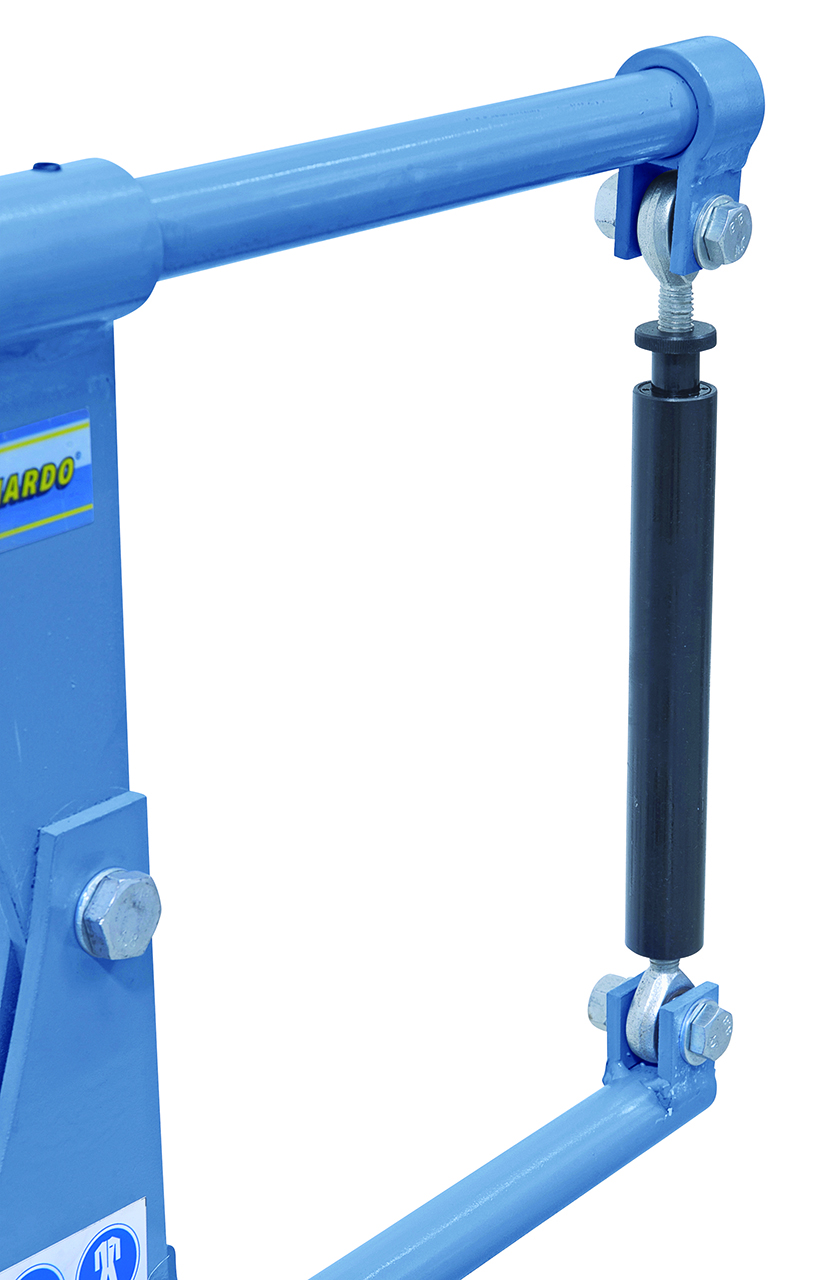

- Includes an adjustment mechanism for regulating the load force
- Designed for mounting on a workbench
- Ideal for producing floor panels, fenders, tanks, etc.
- Essential in the classic car restoration, car and body shop, ...
Product Specifications
|
Throat |
610 mm |
|
Internal height approx. |
310 mm |
|
Sheet thickness max. * |
1,2 mm |
|
Aluminium |
1,4 mm |
|
Stroke frequency |
5500 / min |
|
Max. air pressure |
6,0 bar |
|
Air requirement |
180 l/min |
|
Machine dimension (W x D x H) |
1030 x 110 x 500 mm |
|
Weight approx. |
17 kg |
* Material strength 400 N/mm²
Delivery Contents

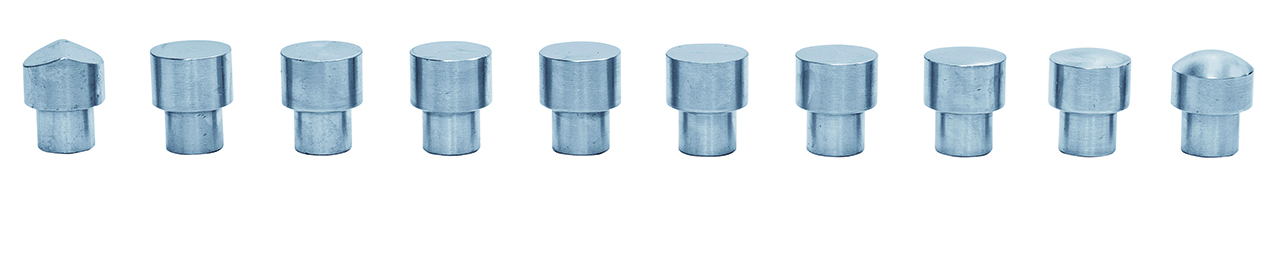

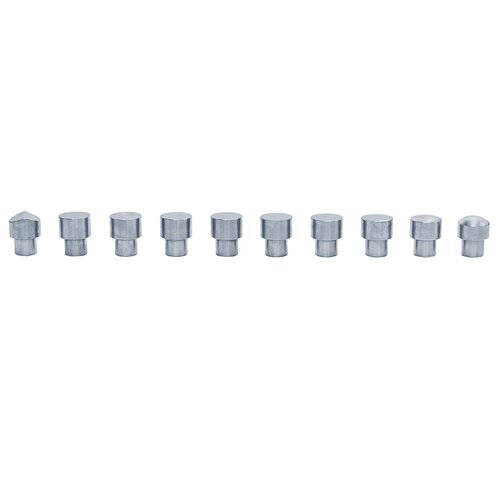

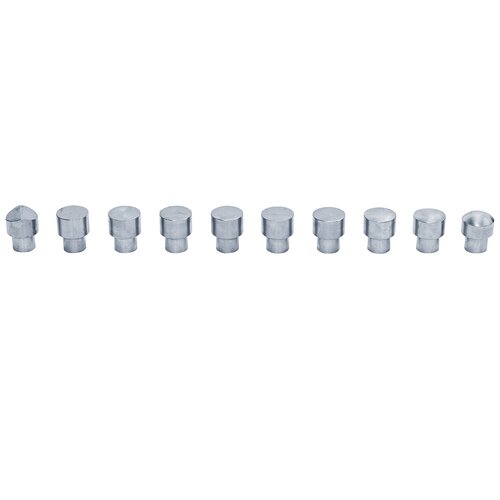

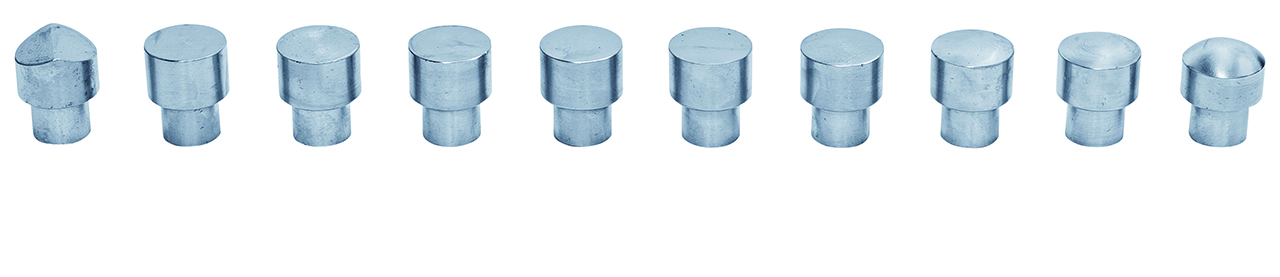

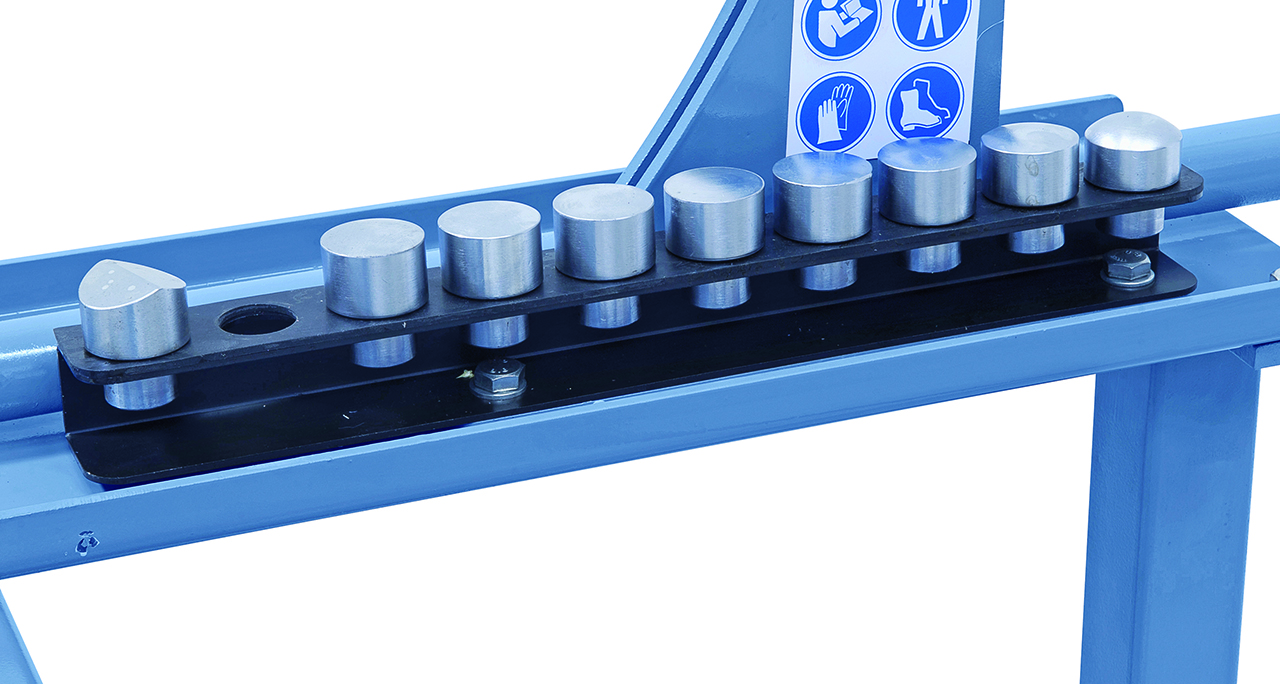

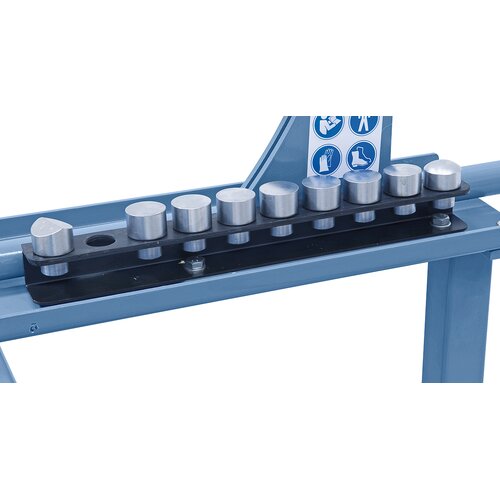

- 9 pcs. punching die radius 3/4“ - 12“ (3/4“ / 1 1/2“ / 2“ / 3“ / 4“ / 6“ / 8“ / 12“
- Polishing hammer

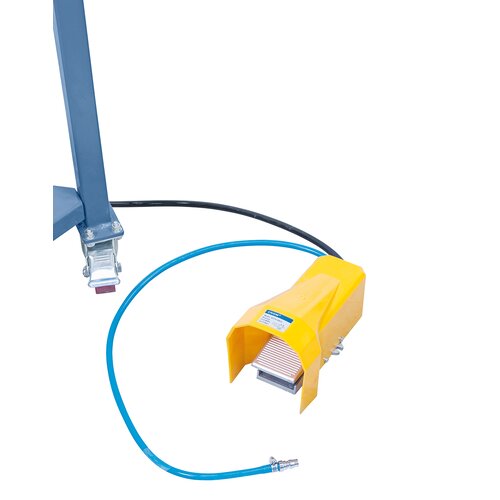

- Foot pedal
